GENERATOR AND STARTER CLUTCH
5-28
EAS24480
GENERATOR AND STARTER CLUTCH

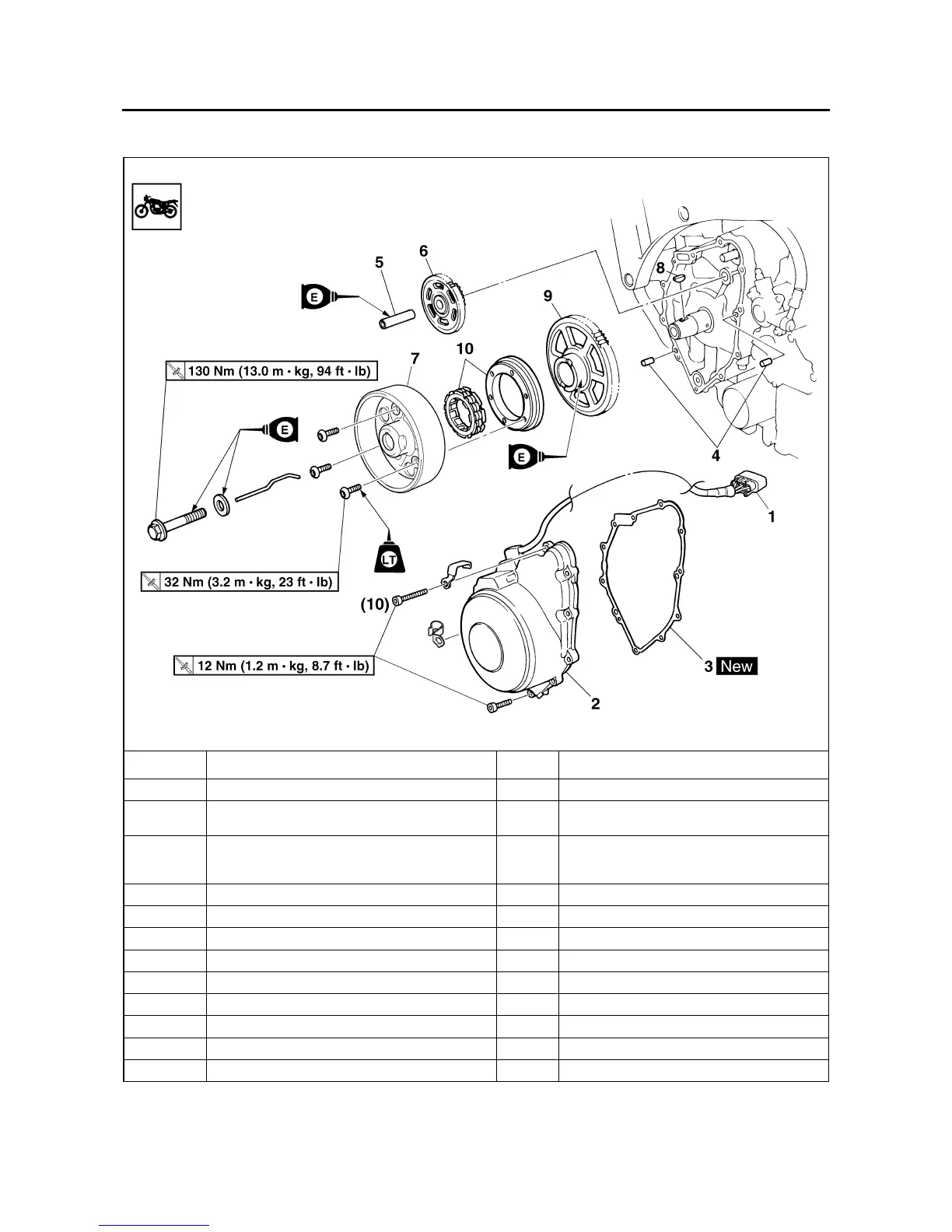

Removing the generator rotor and starter clutch
Order Job/Parts to remove Q’ty Remarks
Fuel tank Refer to “FUEL TANK” on page 7-1.
Air filter case
Refer to “GENERAL CHASSIS” on page
4-1.
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-13.
1 Stator coil coupler 1 Disconnect.
2 Generator cover 1
3 Generator cover gasket 1
4 Dowel pin 2
5 Starter clutch idle gear shaft 1
6 Starter clutch idle gear 1
7 Generator rotor 1
8 Woodruff key 1
9 Starter clutch gear 1
To Next Page
