REAR BRAKE
4-48
EAS22740

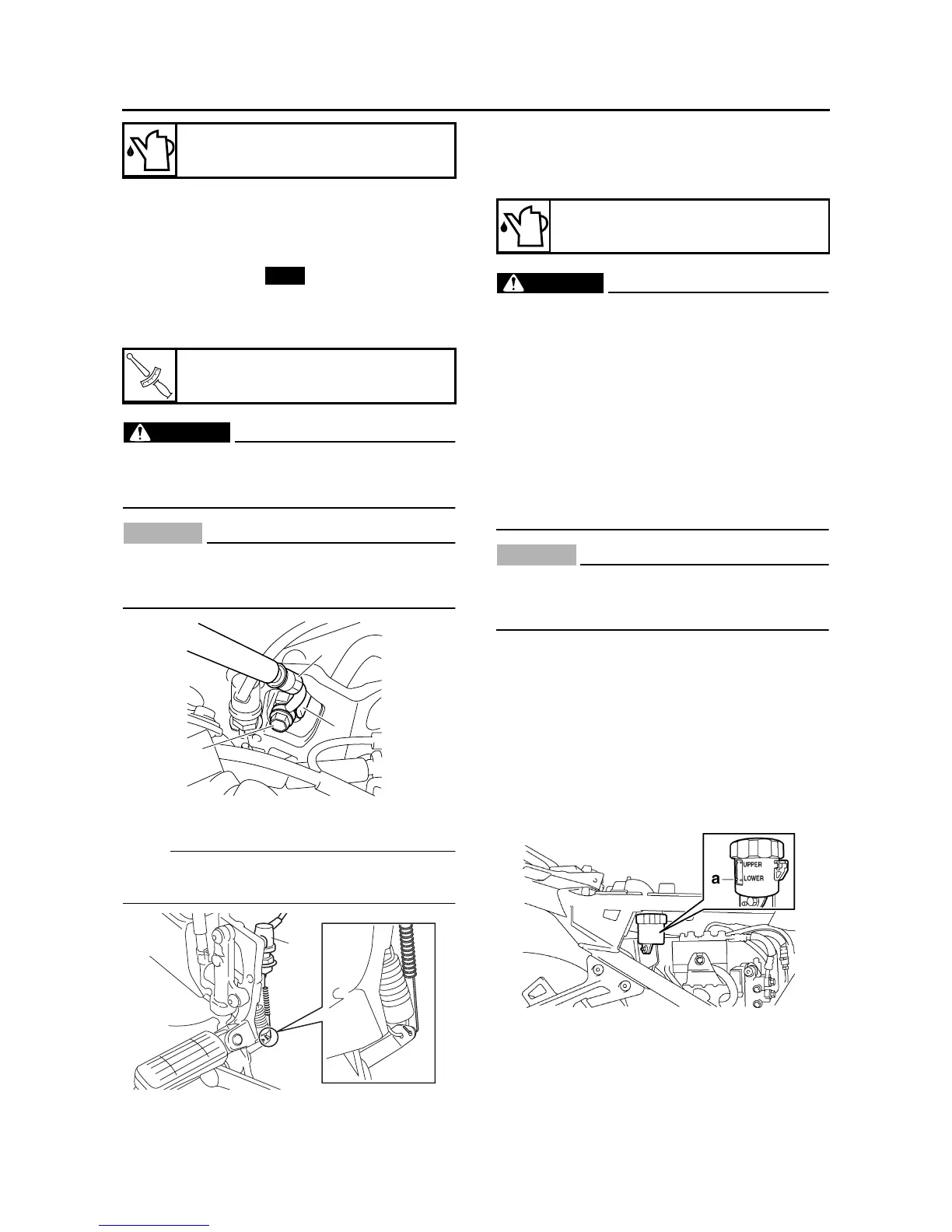

INSTALLING THE REAR BRAKE MASTER
CYLINDER
1. Install:
• Copper washers
• Brake hose (rear brake master cylinder to hy-
draulic unit) “1”
• Rear brake hose union bolt “2”
WARNING
EWA13530
Proper brake hose routing is essential to in-
sure safe vehicle operation. Refer to “CABLE
ROUTING” on page 2-45.
CAUTION:
ECA14160
When installing the brake hose onto the
brake master cylinder, make sure the brake
pipe touches the projection “a” as shown.
2. Install:
• Rear brake light switch “1”
NOTE:
Install the rear brake light switch spring as
shown in the illustration.
3. Fill:
• Brake fluid reservoir
(with the specified amount of the recom-
mended brake fluid)
WARNING
EWA13090
• Use only the designated brake fluid. Other
brake fluids may cause the rubber seals to
deteriorate, causing leakage and poor
brake performance.
• Refill with the same type of brake fluid that
is already in the system. Mixing brake fluids
may result in a harmful chemical reaction,
leading to poor brake performance.
• When refilling, be careful that water does
not enter the brake fluid reservoir. Water
will significantly lower the boiling point of
the brake fluid and could cause vapor lock.
CAUTION:
ECA13540
Brake fluid may damage painted surfaces
and plastic parts. Therefore, always clean up
any spilt brake fluid immediately.
4. Bleed:
• Brake system
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM (ABS)” on page 3-23.
5. Check:
• Brake fluid level
Below the minimum level mark “a” → Add the
recommended brake fluid to the proper level.
Refer to “CHECKING THE BRAKE FLUID
LEVEL” on page 3-22.
6. Check:
• Brake pedal operation
Soft or spongy feeling → Bleed the brake sys-
tem.
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM (ABS)” on page 3-23.
Recommended fluid
DOT 4
T
R
.
.
Brake hose union bolt
30 Nm (3.0 m·kg, 22 ft·lb)
New
1
2
a
1
Recommended fluid
DOT 4
To Next Page
