SHIFT SHAFT
5-56
EAS25410
SHIFT SHAFT

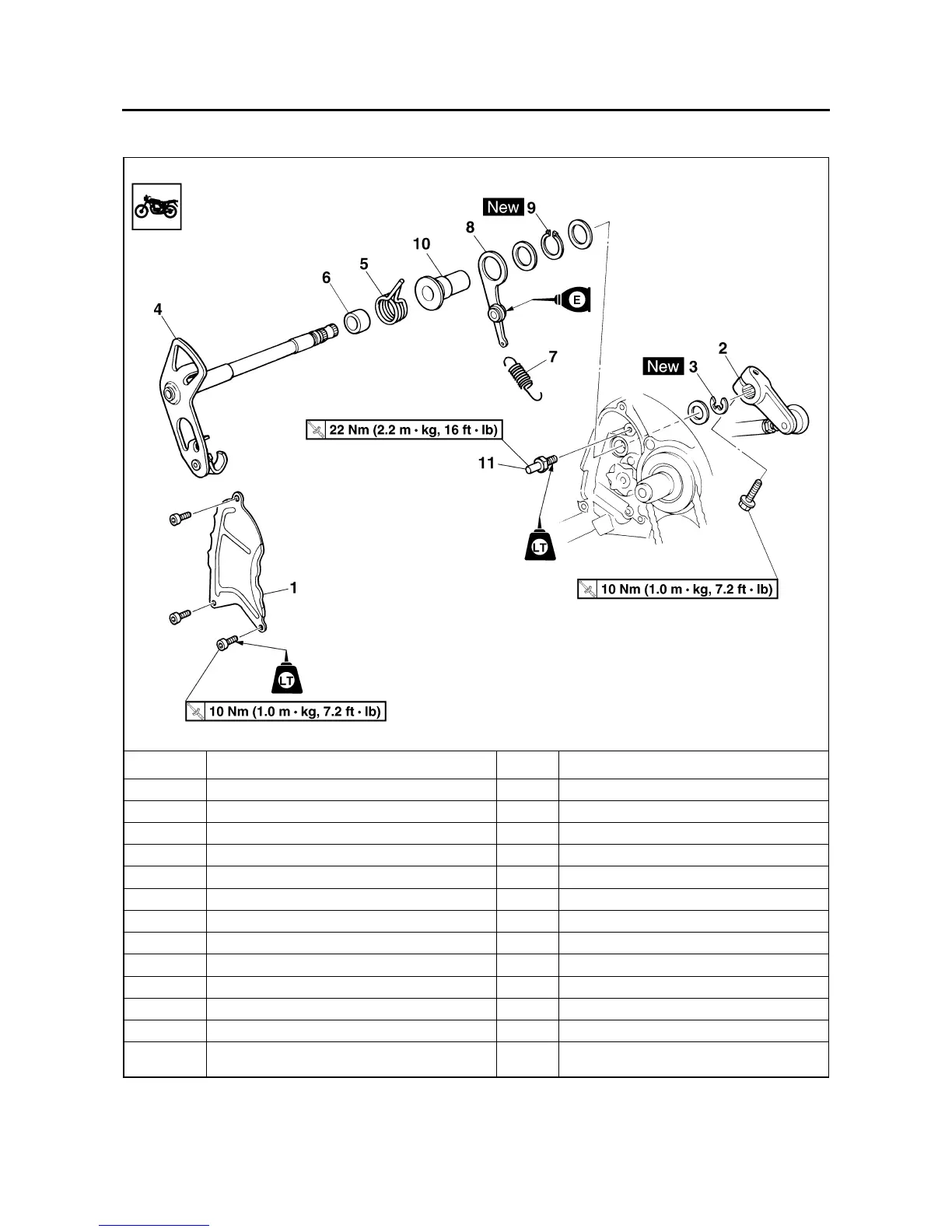

Removing the shift shaft and stopper lever
Order Job/Parts to remove Q’ty Remarks
Clutch housing Refer to “CLUTCH” on page 5-41.
1 Oil baffle plate 1 1
2 Shift arm 1
3 Circlip 1
4 Shift shaft 1
5 Shift shaft spring 1
6 Spacer 1
7 Stopper lever spring 1
8 Stopper lever 1
9 Circlip 1
10 Collar 1
11 Shift shaft spring stopper 1
For installation, reverse the removal proce-
dure.
