FRONT WHEEL
4-15
EAS21900
REMOVING THE FRONT WHEEL
1. Stand the vehicle on a level surface.
WARNING
EWA13120
Securely support the vehicle so that there is
no danger of it falling over.
2. Remove:
• Front wheel sensor
• Front brake calipers
CAUTION:
EC3P61020
• Be sure not to contact the sensor electrode
to any metal part when removing the front
wheel sensor from the sensor housing.
• Do not operate the brake lever and brake
pedal when removing the brake calipers.
3. Elevate:
• Front wheel
NOTE:
Place the vehicle on a suitable stand so that the
front wheel is elevated.
EAS21910

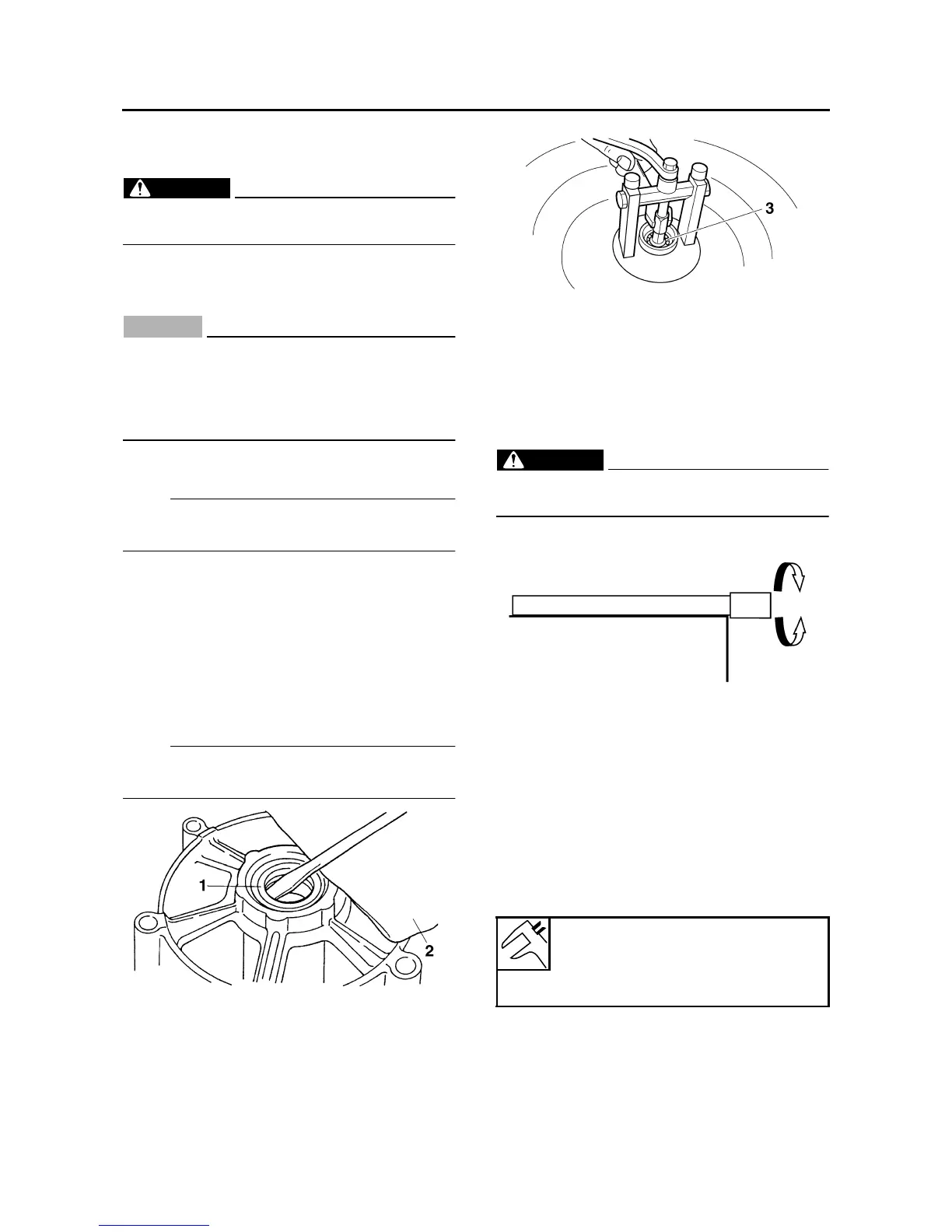

DISASSEMBLING THE FRONT WHEEL
1. Remove:
• Oil seals
• Wheel bearings
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Clean the outside of the front wheel hub.
b. Remove the oil seals “1” with a flathead
screwdriver.
NOTE:
To prevent damaging the wheel, place a rag “2”
between the screwdriver and the wheel surface.
c. Remove the wheel bearings “3” with a gener-
al bearing puller.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS21920
CHECKING THE FRONT WHEEL
1. Check:
• Wheel axle
Roll the wheel axle on a flat surface.
Bends → Replace.
WARNING
EWA13460
Do not attempt to straighten a bent wheel ax-
le.
2. Check:
• Tire
• Front wheel
Damage/wear → Replace.
Refer to “CHECKING THE TIRES” on page
3-32 and “CHECKING THE WHEELS” on
page 3-34.
3. Measure:
• Radial wheel runout “1”
• Lateral wheel runout “2”
Over the specified limits → Replace.
Radial wheel runout limit
1.0 mm (0.04 in)
Lateral wheel runout limit
0.5 mm (0.02 in)
To Next Page
