OIL PUMP
5-62
1. Check:
• Oil delivery pipes
Damage → Replace.
Obstruction → Wash and blow out with com-
pressed air.
EAS24990
CHECKING THE OIL STRAINER
1. Check:
• Oil strainer
Damage → Replace.
Contaminants → Clean with solvent.
EAS25010
ASSEMBLING THE OIL PUMP
1. Lubricate:
• Inner rotor
• Outer rotor
• Oil pump shaft
(with the recommended lubricant)

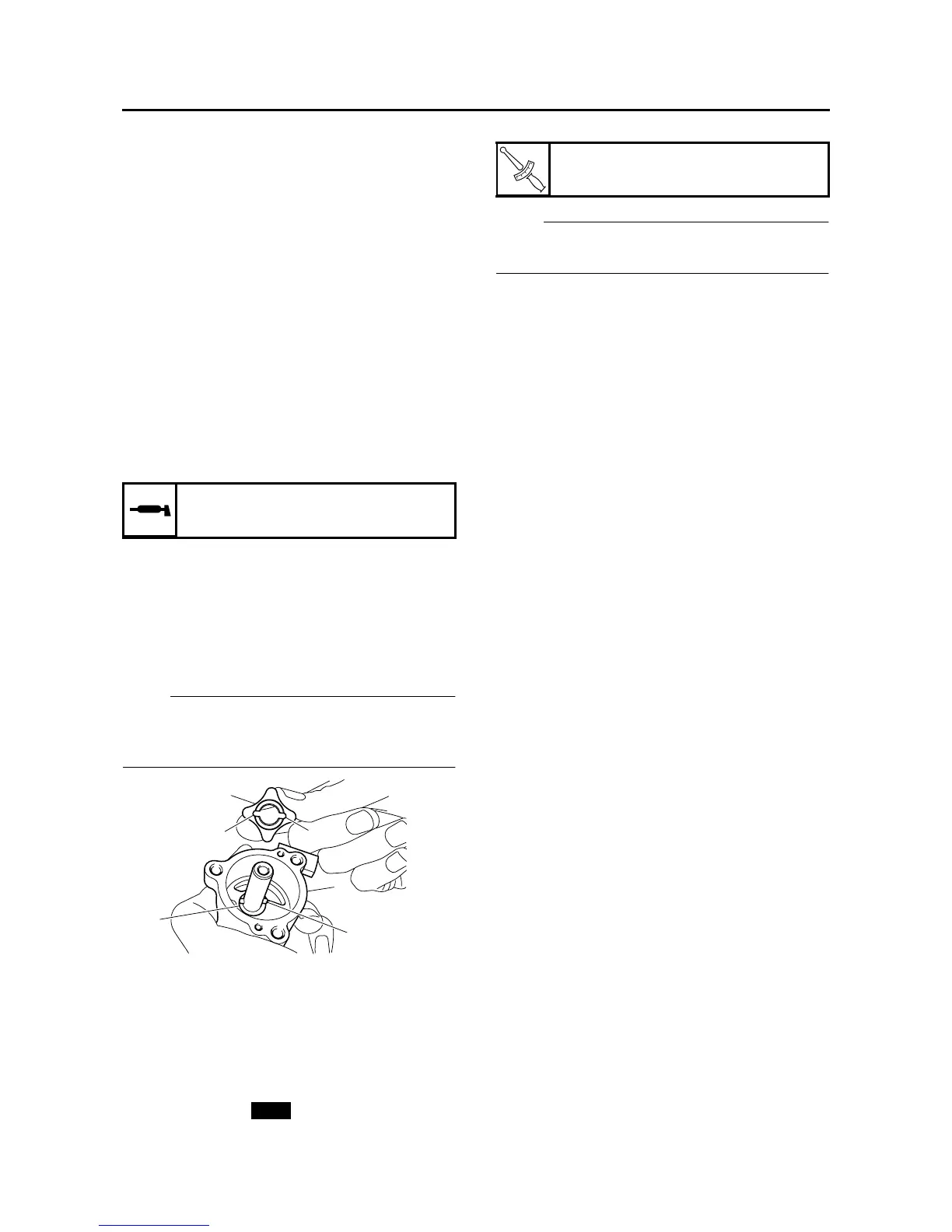

2. Install:
• Oil pump driven sprocket
• Oil pump housing “1”
• Washer “2”
•Pin “3”
• Oil pump inner rotor “4”
• Oil pump outer rotor
NOTE:
When installing the inner rotor, align the pin “3”
in the oil pump shaft with the groove “a” in the in-
ner rotor “4”.
3. Check:
• Oil pump operation
Refer to “CHECKING THE OIL PUMP” on
page 5-61.
EAS25050
INSTALLING THE OIL PAN
1. Install:
• Oil pan gasket
• Oil pan
NOTE:
Tighten the oil pan bolts in stages and in a criss-
cross pattern.
Recommended lubricant
Engine oil
4
2
3
1
a
a
New
T
R
.
.
Oil pan bolt
12 Nm (1.2 m·kg, 8.7 ft·lb)
