ENGINE
3-15
EAS20860

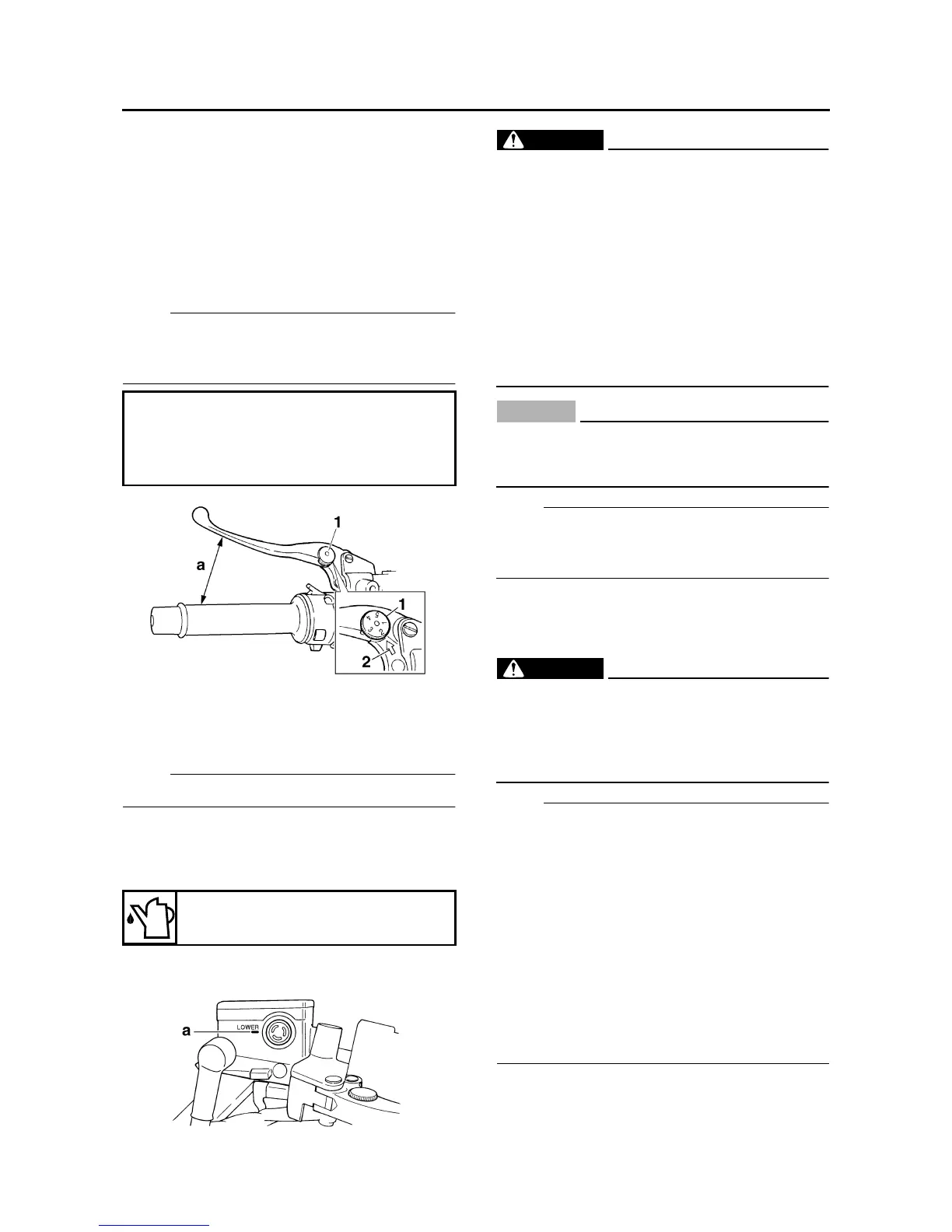

ADJUSTING THE CLUTCH LEVER
1. Adjust:
• Clutch lever position
(distance “a” from the handlebar grip to the
clutch lever)
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. While pushing the clutch lever forward, turn
the adjusting dial “1” until the clutch lever is in
the desired position.
NOTE:
Be sure to align the setting on the adjusting dial
with the arrow mark “2” on the clutch lever hold-
er.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS20890
CHECKING THE CLUTCH FLUID LEVEL
1. Stand the vehicle on a level surface.
NOTE:
Place the vehicle on the centerstand.
2. Check:
• Clutch fluid level
Below the minimum level mark “a” → Add the
recommended clutch fluid to the proper level.
WARNING
EWA13370
• Use only the designated clutch fluid. Other
clutch fluids may cause the rubber seals to
deteriorate, causing leakage and poor
clutch performance.
• Refill with the same type of clutch fluid that
is already in the system. Mixing clutch flu-
ids may result in a harmful chemical reac-
tion, leading to poor clutch performance.
• When refilling, be careful that water does
not enter the clutch fluid reservoir. Water
will significantly lower the boiling point of
the clutch fluid and could cause vapor lock.
CAUTION:
ECA13420
Clutch fluid may damage painted surfaces or
plastic parts. Therefore, always clean up any
spilt clutch fluid immediately.
NOTE:
In order to ensure a correct reading of the clutch
fluid level, make sure the top of the reservoir is
horizontal.
EAS20900
BLEEDING THE HYDRAULIC CLUTCH
SYSTEM
WARNING
EWA13000
Bleed the hydraulic clutch system whenever:
• the system was disassembled,
• a clutch hose was loosened or removed,
• the clutch fluid level is very low,
• clutch operation is faulty.
NOTE:
• Be careful not to spill any clutch fluid or allow
the clutch master cylinder reservoir to over-
flow.
• When bleeding the hydraulic clutch system,
make sure there is always enough clutch fluid
before applying the clutch lever. Ignoring this
precaution could allow air to enter the hydraulic
clutch system, considerably lengthening the
bleeding procedure.
• If bleeding is difficult, it may be necessary to let
the clutch fluid settle for a few hours. Repeat
the bleeding procedure when the tiny bubbles
in the hose have disappeared.
1. Bleed:
• Hydraulic clutch system
Position #1
Distance “a” is the largest.
Position #5
Distance “a” is the smallest.
Recommended fluid
DOT 4
