CHASSIS
3-32

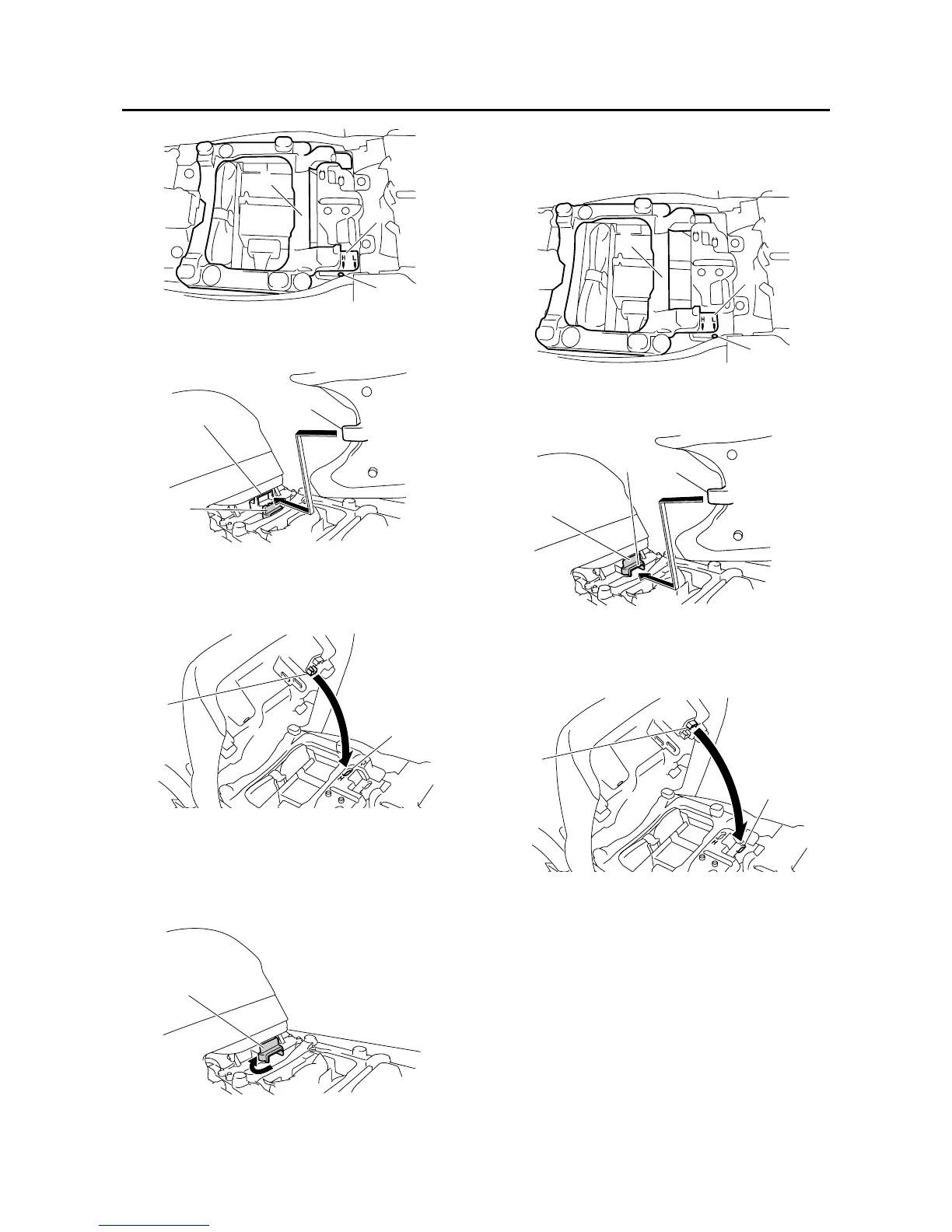

c. Insert the projection “c” on the front of the rid-
er seat into seat holder (for high position) “3”
as shown.
d. Align the high position projection “d” on the
bottom of the rider seat with the “H” position
slot “e”, and then push the rear of the seat
down to lock it in place as shown.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
To change to the low position
a. Move the rider seat holder cover “1” to the up-
per position as shown.
b. Install the rider seat height position adjuster
“2” so that the “L” mark “a” is aligned with the
match mark “b”.
c. Insert the projection “c” on the front of the rid-
er seat into seat holder (for low position) “3”
as shown.
d. Align the low position projection “d” on the
bottom of the rider seat with the “L” position
slot “e”, and then push the rear of the seat
down to lock it in place as shown.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
5. Install:
• Passenger seat
Refer to “GENERAL CHASSIS” on page 4-1.
EAS21650
CHECKING THE TIRES
The following procedure applies to both of the
tires.
1. Check:
• Tire pressure
Out of specification → Regulate.
b
a
2
c
3
1
e
d
1
b
a
2
1
3
c
e
d
