Yamaha FJR1300A Service Manual

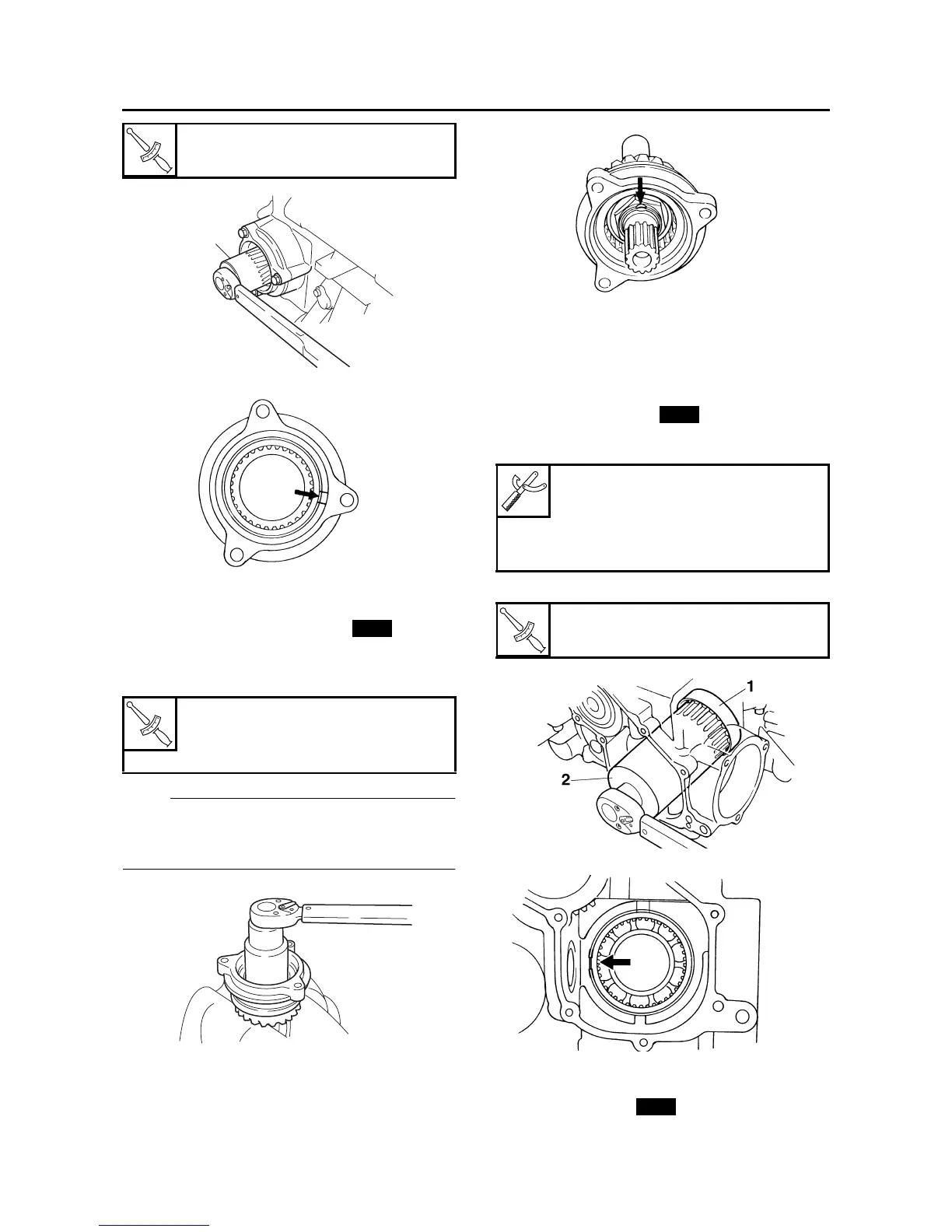

MIDDLE GEAR
5-69
d. Lock the threads with a drift punch.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
2. Tighten:
• Middle driven pinion gear nut
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Tighten the middle driven pinion gear nut to
specification.
NOTE:
Secure the middle driven shaft in a vise, making
sure to tighten the vise jaws onto the flat sec-
tions of the shaft.
b. Lock the threads with a drift punch.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS25860
INSTALLING THE MIDDLE DRIVE SHAFT
ASSEMBLY
1. Tighten:
• Bearing retainer “1”
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Attach the bearing retainer wrench “2”.
b. Tighten the bearing retainer to specification.
c. Lock the threads with a drift punch.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
2. Install:
• Lock washer “1”
• Middle drive pinion gear nut “2”
T
R
.
.
Bearing retainer
110 Nm (11.0 m·kg, 80 ft·lb)
T
R
.
.
Middle driven pinion gear nut
110 Nm (11.0 m·kg, 80 ft·lb)
LOCTITE
®
1
New
Bearing retainer wrench
90890-04137
Middle drive shaft bearing retain-
er wrench
YM-04137
T
R
.
.
Bearing retainer
110 Nm (11.0 m·kg, 80 ft·lb)
New
New
Manuals by Motomatrix / www.motomatrix.co.uk / The Solution For Lost Motorcycle Coded Keys
email: info@motomatrix.co.uk

Yamaha FJR1300A Specifications

General

Displacement	1298cc
Bore x Stroke	79.0mm x 66.2mm
Compression Ratio	10.8:1
Fuel Delivery	Fuel Injection
Transmission	5-speed
Final Drive	Shaft
Front Tire	120/70-ZR17
Rear Tire	180/55-ZR17
Fuel Capacity	6.6 gal
Ignition	TCI: Transistor Controlled Ignition
Engine Type	Liquid-cooled, DOHC
Front Suspension	Telescopic fork
Rear Suspension	adjustable preload and rebound damping
Front Brakes	Dual 320mm discs
Rear Brakes	282mm disc, ABS
Wheelbase	60.8 in
Seat Height	31.7 in
Width	29.5 inches
Height	52.2 inches
