Yamaha FJR1300A Service Manual

REAR WHEEL
4-20
EAS22030

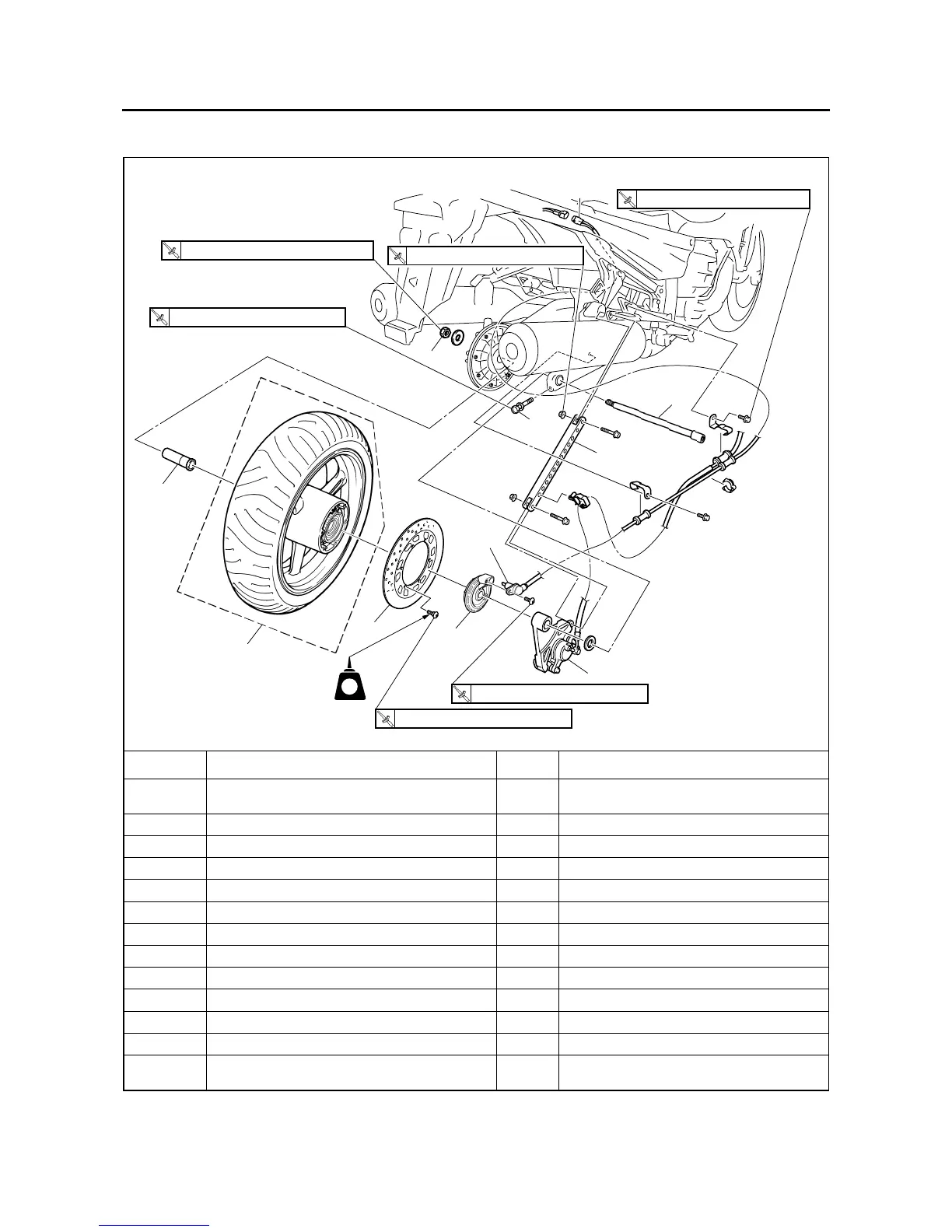

REAR WHEEL
Removing the rear wheel, brake disc, wheel sensor, and sensor housing
Order Job/Parts to remove Q’ty Remarks
Storage compartment
Refer to “GENERAL CHASSIS” on page
4-1.
1 Rear wheel sensor coupler 1 Disconnect.
2 Rear wheel sensor 1
3 Rear wheel axle pinch bolt 1 Loosen.
4 Rear wheel axle nut 1
5 Brake torque rod 1
6 Rear wheel axle 1
7 Rear brake caliper 1
8 Rear wheel 1
9 Rear wheel sensor housing 1
10 Collar 1
11 Rear brake disc 1
For installation, reverse the removal proce-
dure.
T
R
.
.
23 Nm (2.3 m
•
kg, 17 ft
•
Ib)
T
R
.
.
125 Nm (12.5 m
•
kg, 90 ft
•
lb)
T
R
.
.
30 Nm (3.0 m
•
kg, 22 ft
•
Ib)
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
1
4
3
5
7
9
11
6
T
R
.
.
18 Nm (1.8 m
•
kg, 13 ft
•
Ib)
T
R
.
.
30 Nm (3.0 m
•
kg, 22 ft
•
Ib)
2
8
10
(6)
LT
Manuals by Motomatrix / www.motomatrix.co.uk / The Solution For Lost Motorcycle Coded Keys
email: info@motomatrix.co.uk

Yamaha FJR1300A Specifications

General

Displacement	1298cc
Bore x Stroke	79.0mm x 66.2mm
Compression Ratio	10.8:1
Fuel Delivery	Fuel Injection
Transmission	5-speed
Final Drive	Shaft
Front Tire	120/70-ZR17
Rear Tire	180/55-ZR17
Fuel Capacity	6.6 gal
Ignition	TCI: Transistor Controlled Ignition
Engine Type	Liquid-cooled, DOHC
Front Suspension	Telescopic fork
Rear Suspension	adjustable preload and rebound damping
Front Brakes	Dual 320mm discs
Rear Brakes	282mm disc, ABS
Wheelbase	60.8 in
Seat Height	31.7 in
Width	29.5 inches
Height	52.2 inches
