Yamaha FJR1300A - Page 178

REAR WHEEL
4-21

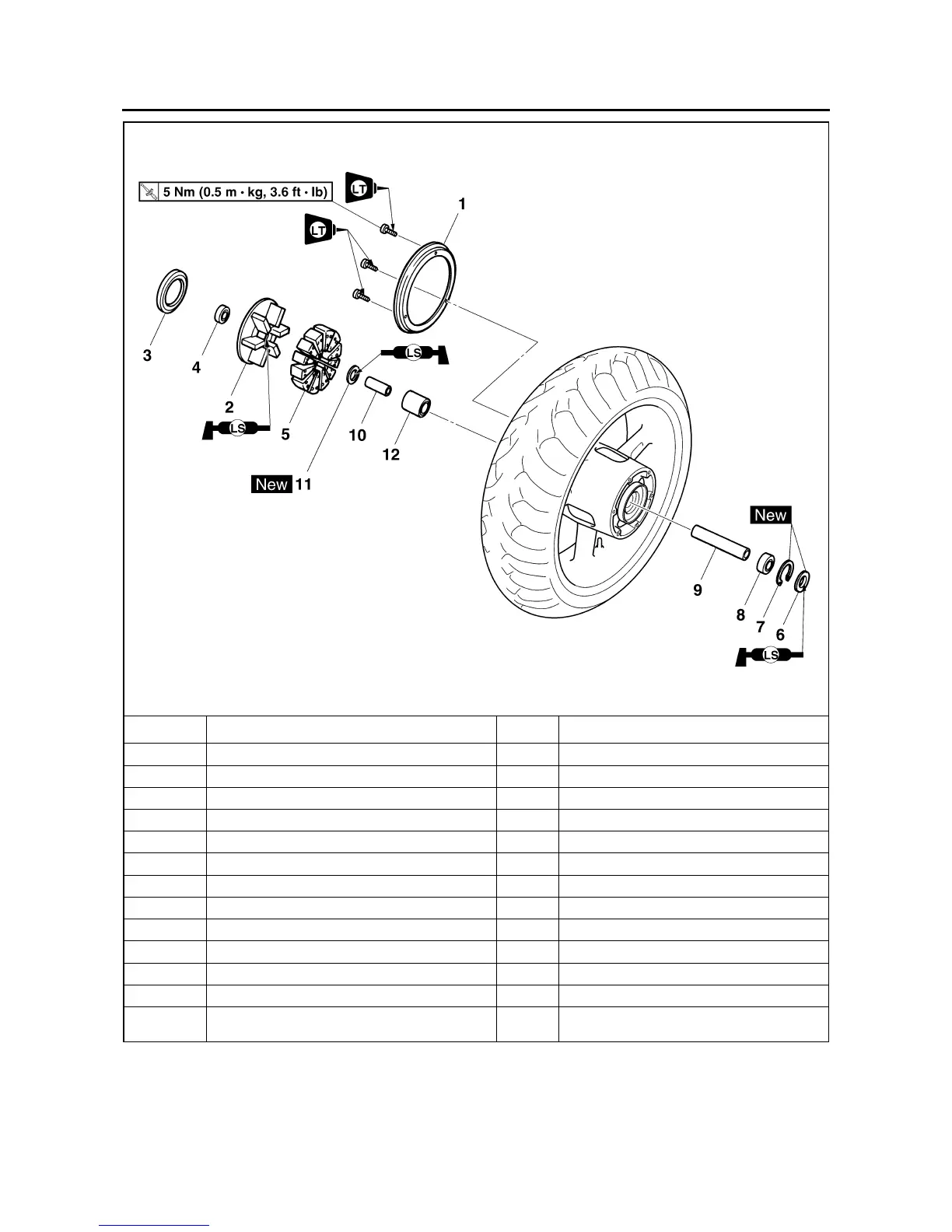

Disassembling the rear wheel
Order Job/Parts to remove Q’ty Remarks
1Dust cover 1
2 Rear wheel drive hub 1
3 Dust seal 1
4 Wheel bearing 1
5 Rear wheel drive hub damper 6
6 Oil seal 1
7 Circlip 1
8 Wheel bearing 1
9 Spacer 1
10 Spacer 1
11 Oil seal 1
12 Bearing 1
For assembly, reverse the disassembly pro-
cedure.
