FRONT FORK
4-65
EAS22950
FRONT FORK

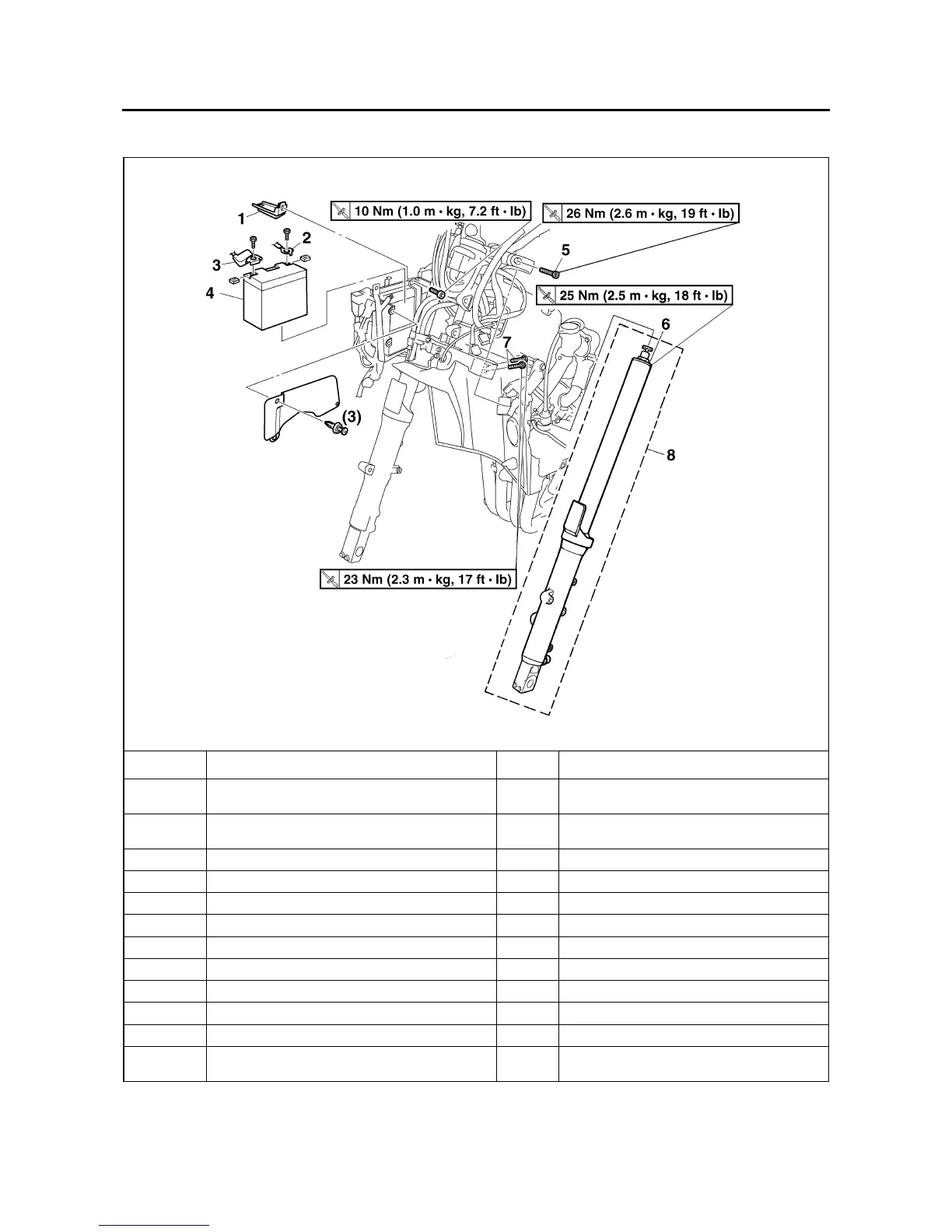

Removing the front fork legs
Order Job/Parts to remove Q’ty Remarks
The following procedure applies to both of
the front fork legs.
Front cowling assembly
Refer to “GENERAL CHASSIS” on page
4-1.
Front wheel Refer to “FRONT WHEEL” on page 4-13.
1 Battery holder 1
2 Negative battery lead 1 Disconnect.
3 Positive battery lead 1 Disconnect.
4Battery 1
5 Upper bracket pinch bolt 1 Loosen.
6 Cap bolt 1 Loosen.
7 Lower bracket pinch bolt 2 Loosen.
8Front fork leg 1
For installation, reverse the removal proce-
dure.
To Next Page
