Yamaha FJR1300A - Page 223

FRONT FORK
4-66

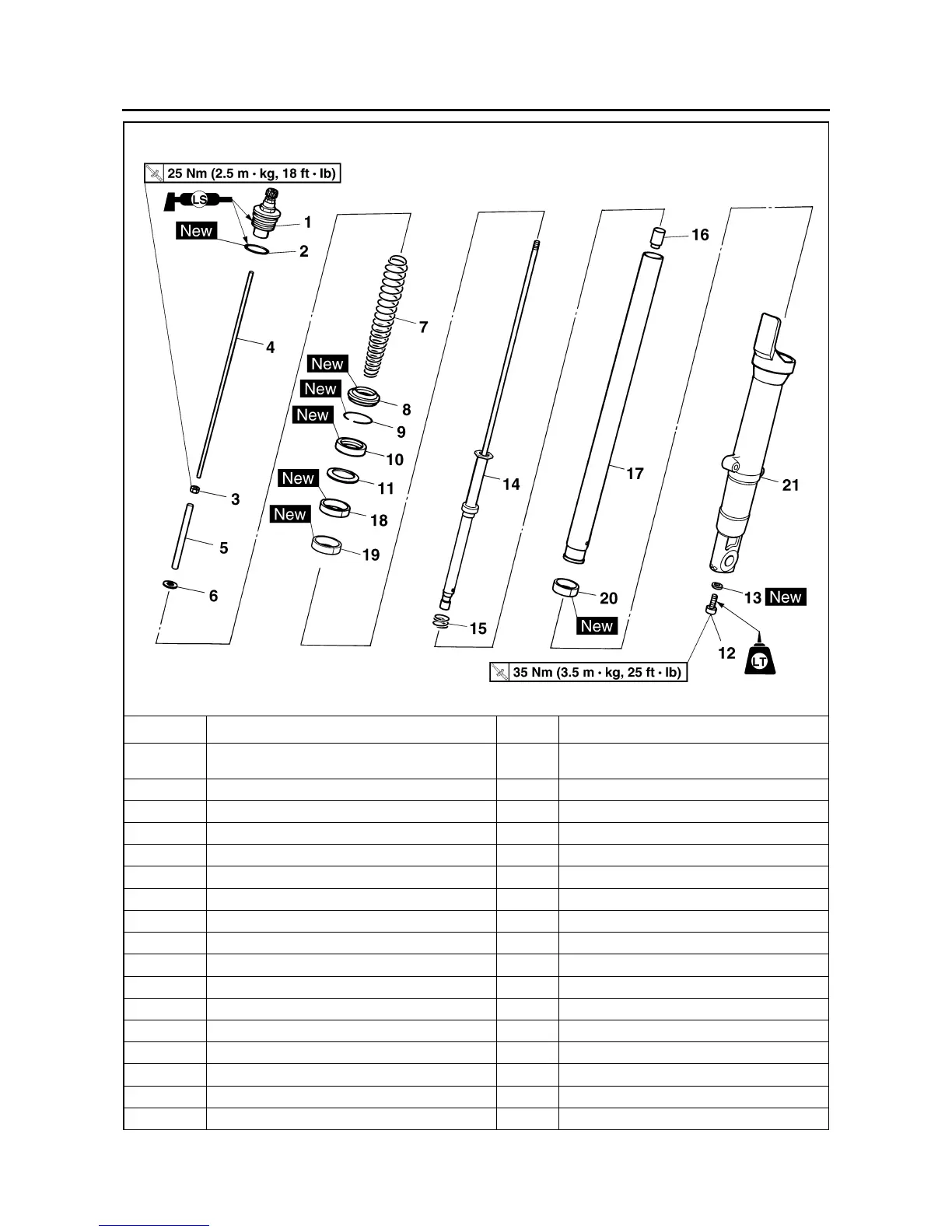

Disassembling the front fork legs
Order Job/Parts to remove Q’ty Remarks
The following procedure applies to both of
the front fork legs.
1 Cap bolt 1
2O-ring 1
3Nut 1
4 Damper adjusting rod 1
5 Spacer 1
6Washer 1
7 Fork spring 1
8 Dust seal 1
9 Oil seal clip 1
10 Oil seal 1
11 Washer 1
12 Damper rod assembly bolt 1
13 Copper washer 1
14 Damper rod assembly 1
15 Spring 1
16 Oil flow stopper 1
