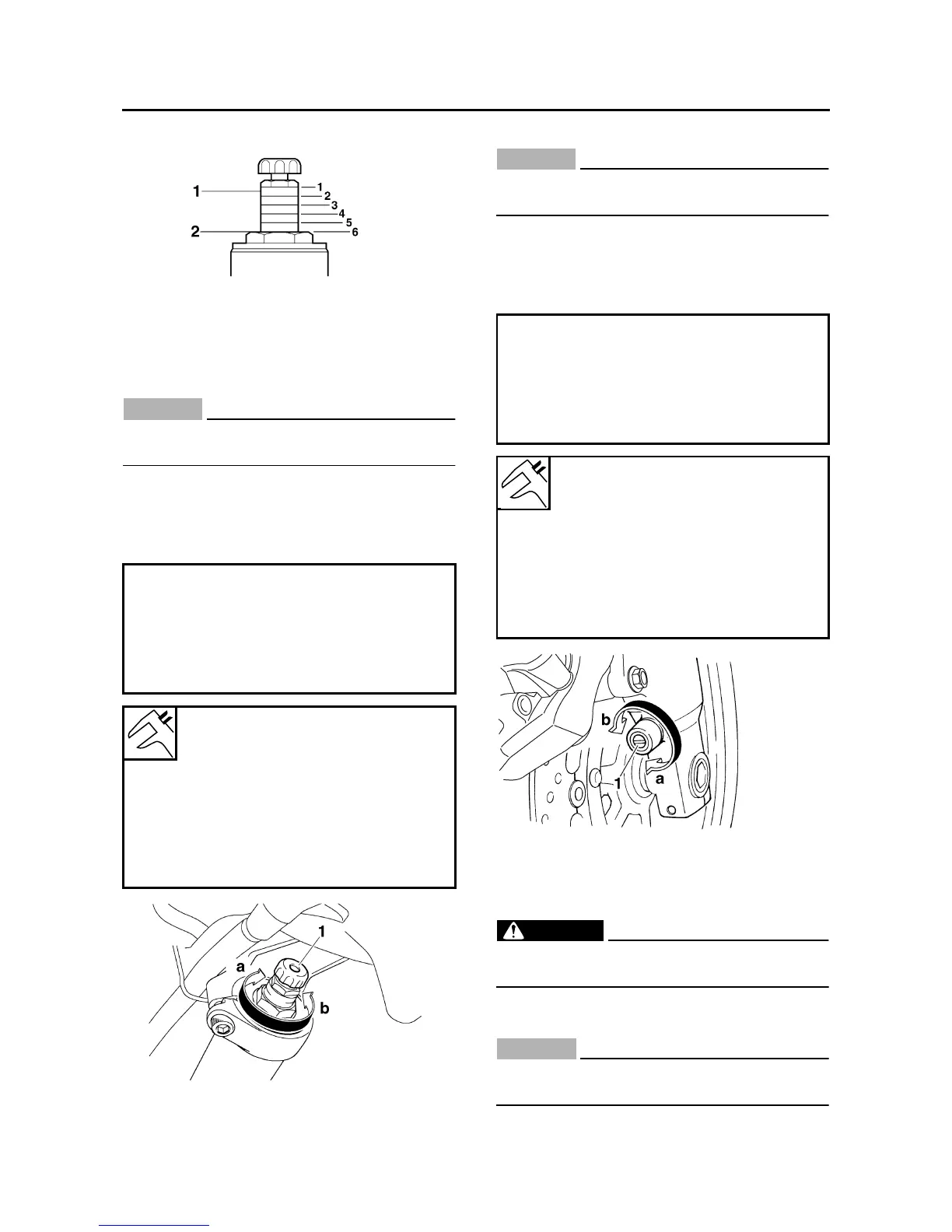

Yamaha FJR1300A - Adjusting the Rear Shock Absorber Assembly

CHASSIS
3-29
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
Rebound damping
CAUTION:
ECA13590
Never go beyond the maximum or minimum
adjustment positions.
1. Adjust:
• Rebound damping
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Turn the adjusting knob “1” in direction “a” or
“b”.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
Compression damping
CAUTION:
ECA13590
Never go beyond the maximum or minimum
adjustment positions.
1. Adjust:
• Compression damping
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Turn the adjusting screw “1” in direction “a” or
“b”.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS21600
ADJUSTING THE REAR SHOCK ABSORBER
ASSEMBLY
WARNING
EWA13120
Securely support the vehicle so that there is
no danger of it falling over.
Spring preload
CAUTION:
ECA13590
Never go beyond the maximum or minimum
adjustment positions.
2. Current setting
Direction “a”
Rebound damping is increased (sus-
pension is harder).
Direction “b”
Rebound damping is decreased (sus-
pension is softer).
Rebound damping adjusting posi-
tions
Minimum
17 click(s) out*
Standard
12 click(s) out*
Maximum
1 click(s) out*
* With the adjusting knob fully turned in
Direction “a”
Compression damping is increased
(suspension is harder).
Direction “b”
Compression damping is decreased
(suspension is softer).
Compression damping adjusting
positions
Minimum
21 click(s) out*
Standard
12 click(s) out*
Maximum
1 click(s) out*
* With the adjusting screw fully turned in
