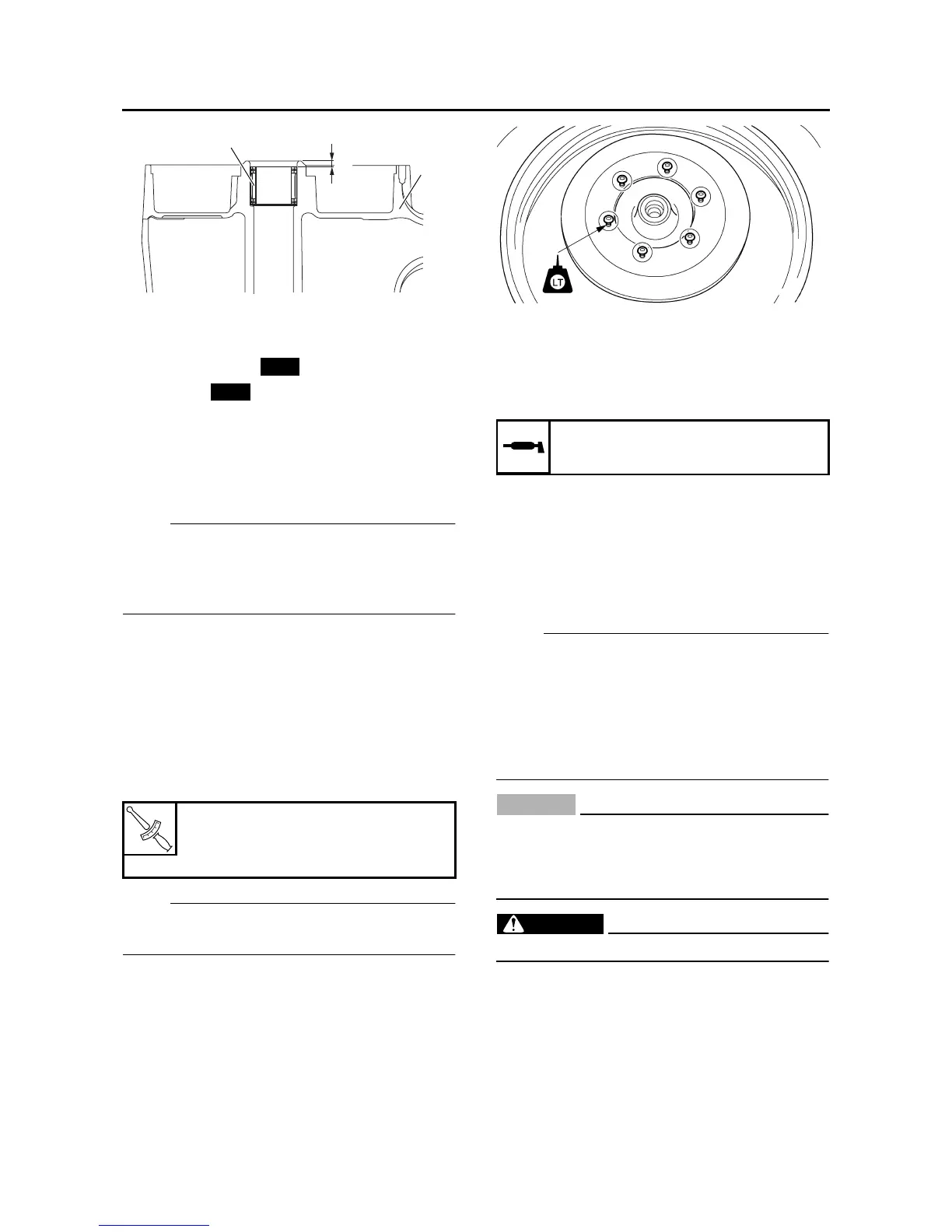

REAR WHEEL
4-23
2. Install:
• Wheel bearings
• Oil seals
Refer to “ASSEMBLING THE FRONT
WHEEL” on page 4-17.
EAS22150
ADJUSTING THE REAR WHEEL STATIC
BALANCE
NOTE:
• After replacing the tire, wheel, or both, the rear
wheel static balance should be adjusted.
• Adjust the rear wheel static balance with the
brake disc and rear wheel drive hub installed.
1. Adjust:
• Rear wheel static balance
Refer to “ADJUSTING THE FRONT WHEEL
STATIC BALANCE” on page 4-17.
EAS22170
INSTALLING THE REAR WHEEL (REAR
BRAKE DISC)
1. Install:
• Rear brake disc
NOTE:
Tighten the brake disc bolts in stages and in a
crisscross pattern.
2. Check:
• Rear brake disc
Refer to “CHECKING THE REAR BRAKE
DISC” on page 4-43.
3. Lubricate:
• Oil seal lips
4. Install:
• Rear wheel sensor housing
• Rear wheel
• Rear brake caliper
• Rear wheel axle
• Brake torque rod
• Rear wheel axle nut
NOTE:
• Align the slot “a” of the rear wheel sensor hous-
ing “1” with the projection “b” of the rear brake
caliper bracket “2”, and then assemble them.
• After assembling the rear wheel sensor hous-
ing and the rear brake caliper bracket, make
sure that the projection “c” on the housing is
aligned with the projection “d” on the bracket.
CAUTION:
ECA14470
Make sure there are no foreign materials in
the wheel hub. Foreign materials cause dam-
age to the inner sensor rotor and wheel sen-
sor.
WARNING
EWA13500
Make sure the brake hose is routed properly.
2. Rear wheel
T
R
.
.
Rear brake disc bolt
18 Nm (1.8 m·kg, 13 ft·lb)
LOCTITE
®
a
2
1
New
New
Recommended lubricant
Lithium-soap-based grease
To Next Page
