REAR WHEEL
4-24
5. Tighten:
• Brake torque rod nuts
• Rear wheel axle nut
• Rear wheel axle pinch bolt
6. Install:
• Rear wheel sensor
CAUTION:
ECA14500
To route the rear wheel sensor lead, refer to
“CABLE ROUTING” on page 2-45.
NOTE:
When installing the rear wheel sensor, check the
rear wheel sensor lead for twists and the sensor
electrode for foreign materials.

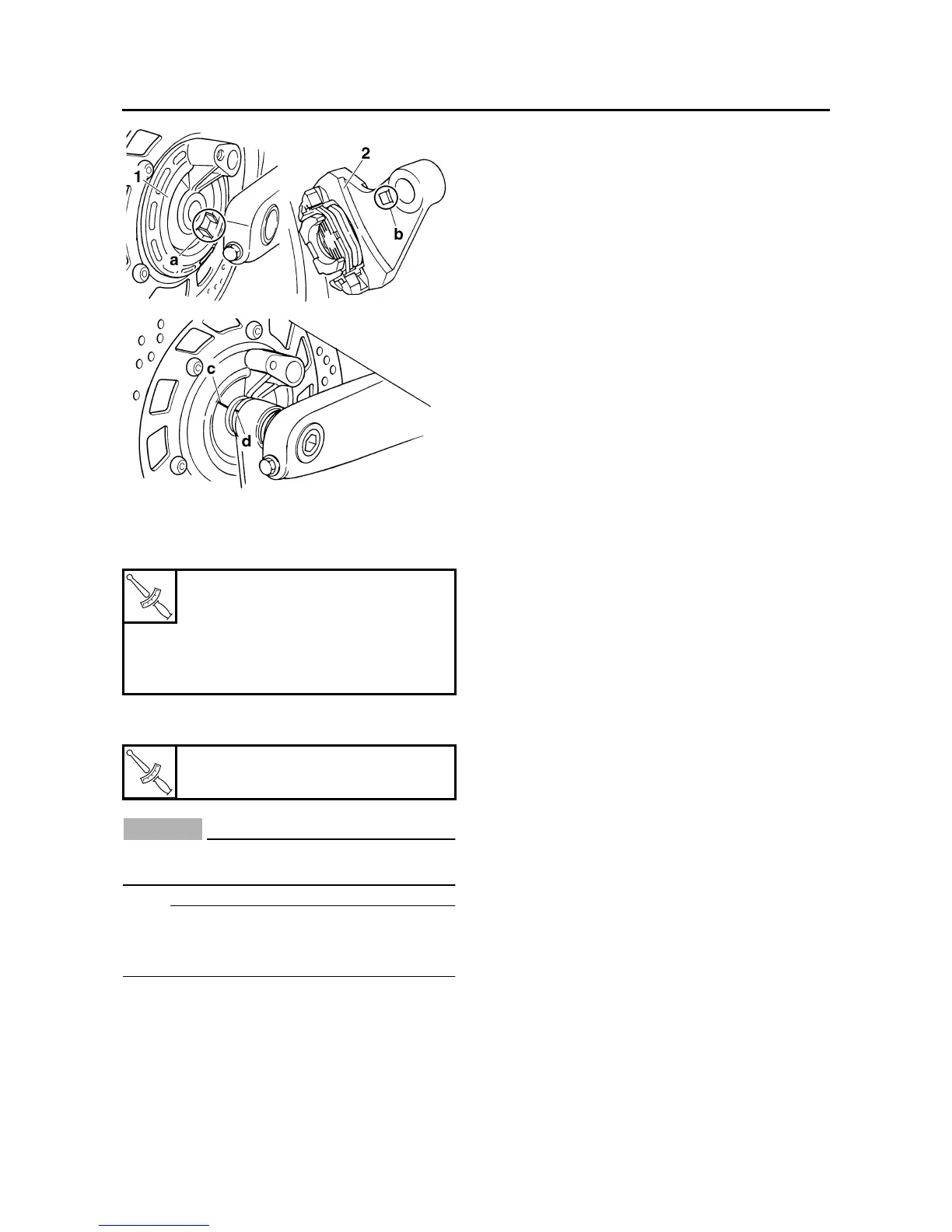

7. Check:
• Rear wheel sensor installation
Check if the wheel sensor housing is installed
properly.
T
R
.
.
Brake torque rod nut
30 Nm (3.0 m·kg, 22 ft·lb)
Rear wheel axle nut
125 Nm (12.5 m·kg, 90 ft·lb)
Rear wheel axle pinch bolt
23 Nm (2.3 m·kg, 17 ft·lb)
T
R
.
.
Rear wheel sensor bolt
30 Nm (3.0 m·kg, 22 ft·lb)
