Yamaha FJR1300A Service Manual

PICKUP ROTOR
5-35
EAS24530

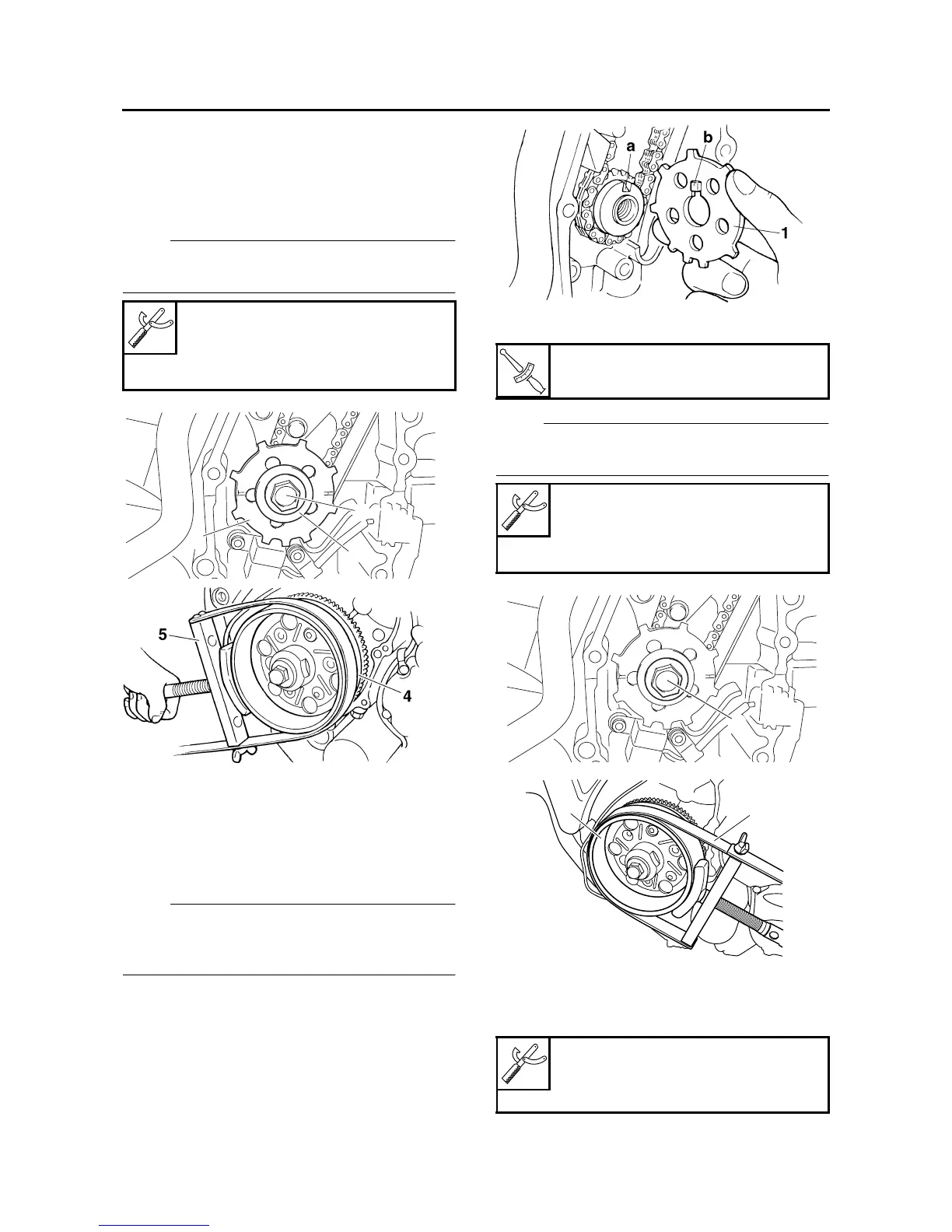

REMOVING THE PICKUP ROTOR
1. Remove:
• Pickup rotor bolt “1”
• Washer “2”
• Pickup rotor “3”
NOTE:
While holding the generator rotor “4” with the
sheave holder “5”, loosen the pickup rotor bolt.
EAS24540
INSTALLING THE PICKUP ROTOR
1. Install:
• Pickup rotor “1”
• Washer
• Pickup rotor bolt
NOTE:
When installing the pickup rotor, align the
groove “a” in the crankshaft sprocket with the
projection “b” in the pickup rotor.
2. Tighten:
• Pickup rotor bolt “1”
NOTE:
While holding the generator rotor “2” with the
sheave holder “3”, tighten the pickup rotor bolt.
3. Apply:
• Sealant
(onto the crankshaft position sensor lead
grommet)
Sheave holder
90890-01701
Primary clutch holder
YS-01880-A
1
2
3
T
R
.
.
Pickup rotor bolt
45 Nm (4.5 m·kg, 32 ft·lb)
Sheave holder
90890-01701
Primary clutch holder
YS-01880-A
Yamaha bond No. 1215
90890-85505
(Three Bond No.1215
®
)
1
2
3
