CONNECTING RODS AND PISTONS
5-82
ET3P61027
CONNECTING RODS AND PISTONS

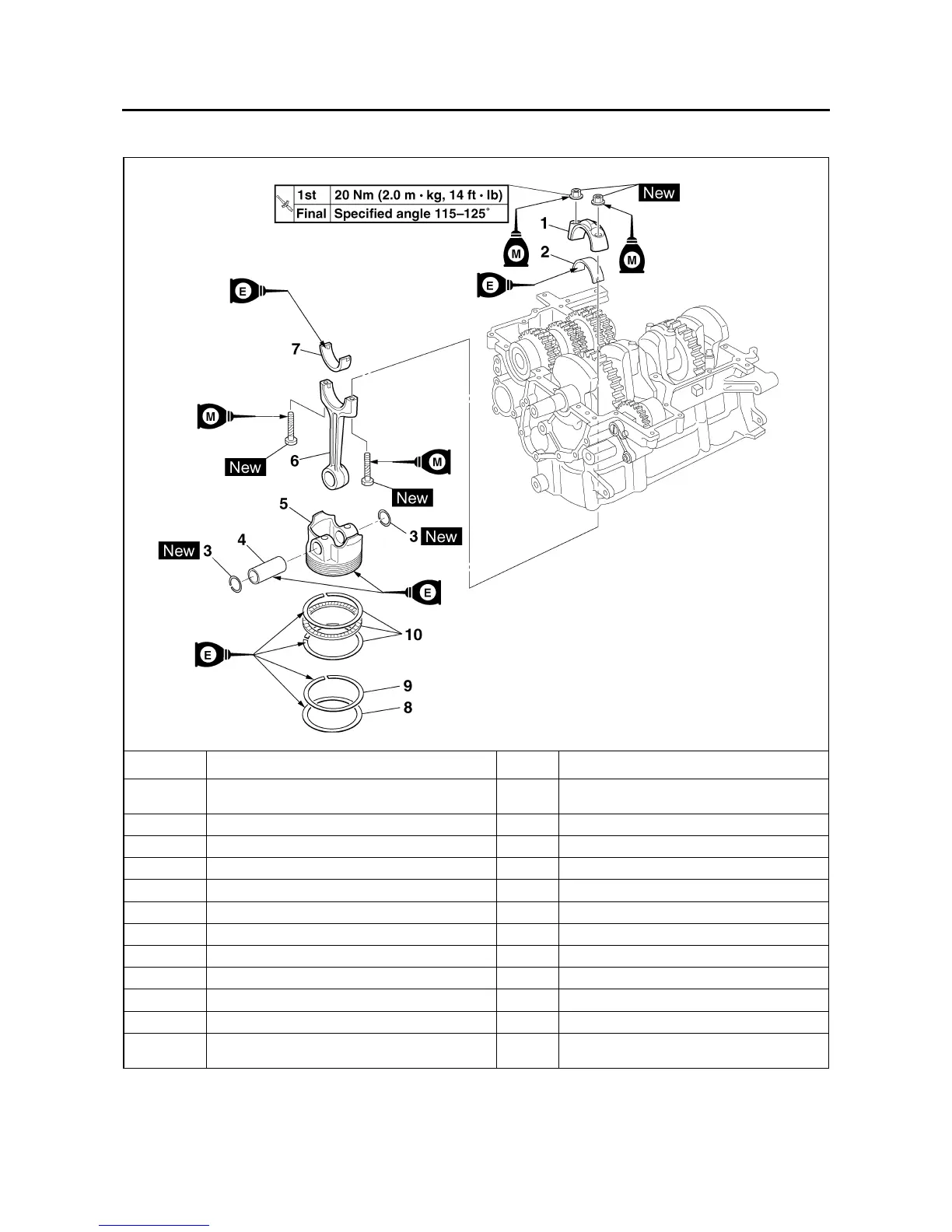

Removing the connecting rods and pistons
Order Job/Parts to remove Q’ty Remarks
Crankcase
Separate.
Refer to “CRANKCASE” on page 5-74.
1 Connecting rod cap 4
2 Big end lower bearing 4
3 Piston pin clip 8
4 Piston pin 4
5Piston 4
6 Connecting rod 4
7 Big end upper bearing 4
8Top ring 4
9 2nd ring 4
10 Oil ring 4
For installation, reverse the removal proce-
dure.
Manuals by Motomatrix / www.motomatrix.co.uk / The Solution For Lost Motorcycle Coded Keys
email: info@motomatrix.co.uk

Yamaha FJR1300A Specifications

General

Displacement	1298cc
Bore x Stroke	79.0mm x 66.2mm
Compression Ratio	10.8:1
Fuel Delivery	Fuel Injection
Transmission	5-speed
Final Drive	Shaft
Front Tire	120/70-ZR17
Rear Tire	180/55-ZR17
Fuel Capacity	6.6 gal
Ignition	TCI: Transistor Controlled Ignition
Engine Type	Liquid-cooled, DOHC
Front Suspension	Telescopic fork
Rear Suspension	adjustable preload and rebound damping
Front Brakes	Dual 320mm discs
Rear Brakes	282mm disc, ABS
Wheelbase	60.8 in
Seat Height	31.7 in
Width	29.5 inches
Height	52.2 inches
