CRANKCASE
5-81
NOTE:

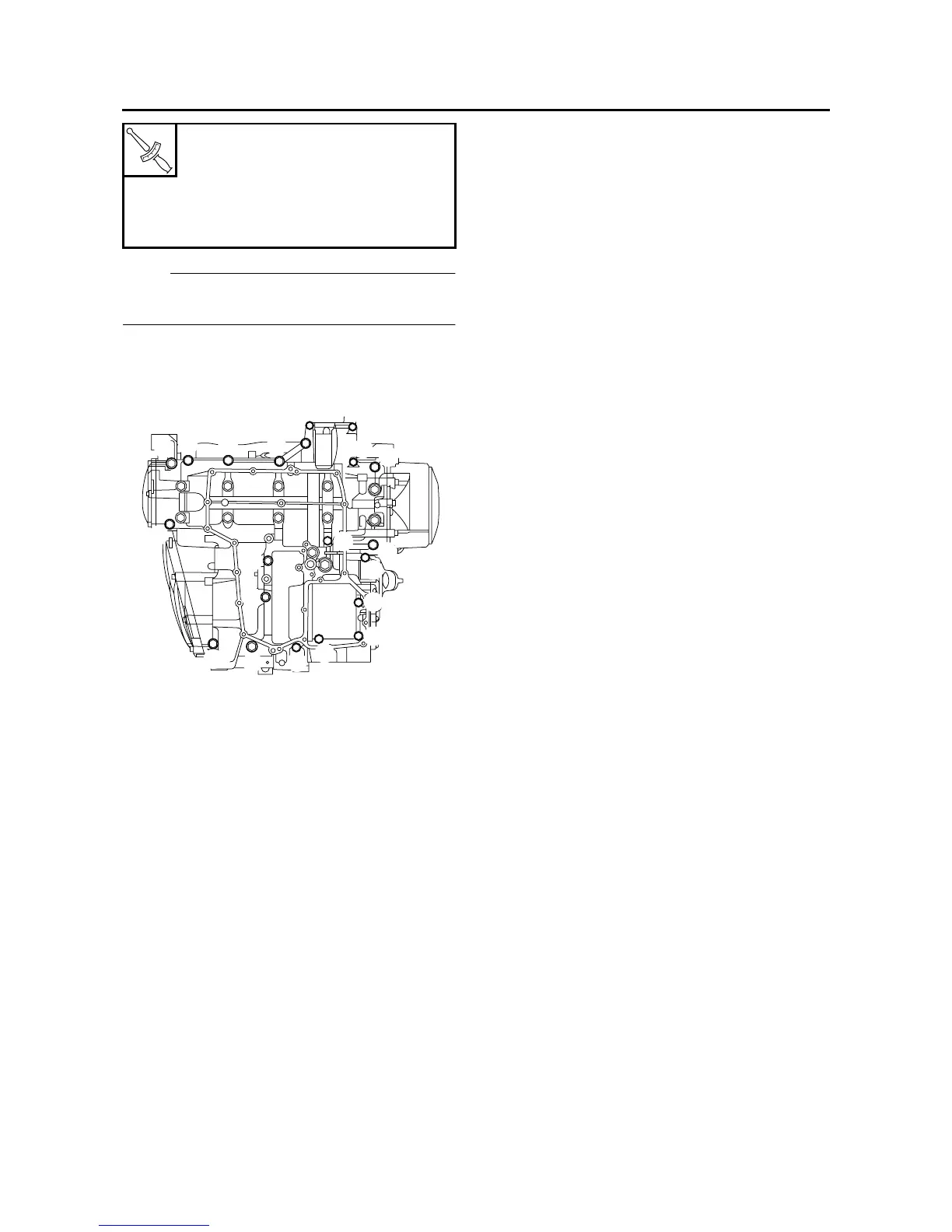

Tighten the crankcase bolts in the proper tight-
ening sequence as shown.
T
R
.
.
Crankcase bolt “11”, “12”
24 Nm (2.4 m·kg, 17 ft·lb)
Crankcase bolt “13”, “14”
12 Nm (1.2 m·kg, 8.7 ft·lb)
Crankcase bolt “15”–“31”
10 Nm (1.0 m·kg, 7.2 ft·lb)
13
21
18
15
16
17
20
19
22
14
24
29
30
23
25
31
28
26
27
11
12
