ELECTRICAL SYSTEM
3-36
EAS21750
ELECTRICAL SYSTEM
EAS21760
CHECKING AND CHARGING THE BATTERY
Refer to “ELECTRICAL COMPONENTS” on
page 8-145.
EAS21770
CHECKING THE FUSES
Refer to “ELECTRICAL COMPONENTS” on
page 8-145.
EAS21790

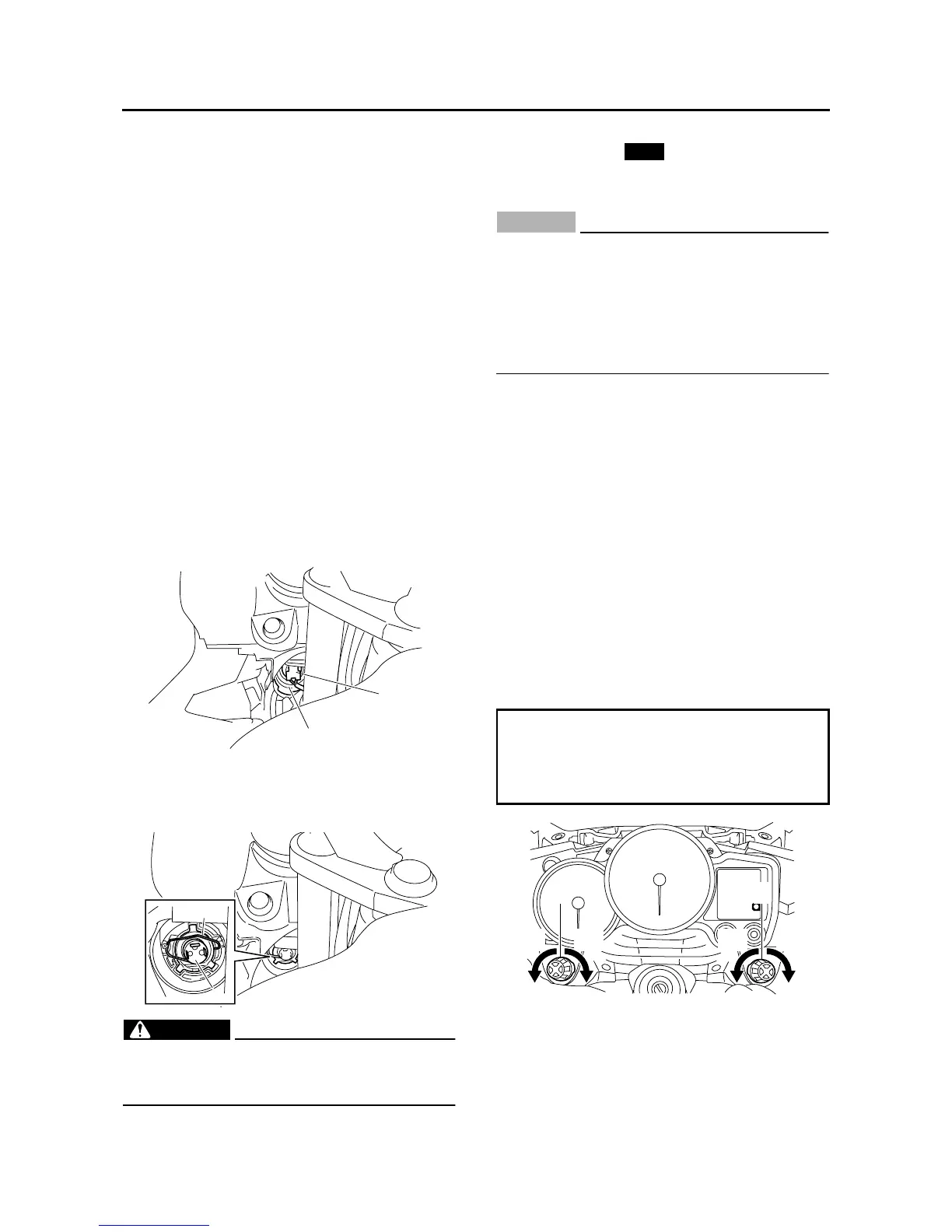

REPLACING THE HEADLIGHT BULBS
The following procedure applies to both of the
headlight bulbs.
1. Remove:
• Front cowling left inner panel 1
• Front cowling right inner panel 1
Refer to “GENERAL CHASSIS” on page 4-1.
2. Disconnect:
• Headlight coupler “1”
3. Remove:
• Headlight bulb cover “2”
4. Detach:
• Headlight bulb holder “1”
5. Remove:
• Headlight bulb “2”
WARNING
EWA13320
Since the headlight bulb gets extremely hot,
keep flammable products and your hands
away from the bulb until it has cooled down.
6. Install:
• Headlight bulb
Secure the new headlight bulb with the head-
light bulb holder.
CAUTION:
ECA13690
Avoid touching the glass part of the head-
light bulb to keep it free from oil, otherwise
the transparency of the glass, the life of the
bulb and the luminous flux will be adversely
affected. If the headlight bulb gets soiled,
thoroughly clean it with a cloth moistened
with alcohol or lacquer thinner.
7. Attach:
• Headlight bulb holder
8. Install:
• Headlight bulb cover
9. Connect:
• Headlight coupler
10.Install:
• Front cowling right inner panel 1
• Front cowling left inner panel 1
Refer to “GENERAL CHASSIS” on page 4-1.
EAS21810
ADJUSTING THE HEADLIGHT BEAMS
1. Adjust:
• Headlight beam (vertically)
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Turn the adjusting knobs “1” in direction “a” or
“b”.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
2. Adjust:
• Headlight beam (horizontally)
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Turn the adjusting screws “1” in direction “a”
or “b”.
Left headlight
2
1
1
2
Direction “a”
Headlight beam is raised.
Direction “b”
Headlight beam is lowered.
New
1
a
b
1
a
b
