REAR SHOCK ABSORBER ASSEMBLY
4-82
• Rear shock absorber
Gas leaks/oil leaks → Replace the rear shock
absorber assembly.
• Spring
Damage/wear → Replace the rear shock ab-
sorber assembly.
• Bushing
Damage/wear → Replace the rear shock ab-
sorber assembly.
• Spacer
Damage/scratches → Replace.
• Bolts
Bends/damage/wear → Replace.
EAS23260
CHECKING THE CONNECTING ARM AND
RELAY ARM
1. Check:
• Connecting arms
• Relay arm
Damage/wear → Replace.
2. Check:
• Bearings
• Oil seals
Damage/pitting → Replace.
3. Check:
• Spacers
Damage/scratches → Replace.
EAS23270
INSTALLING THE RELAY ARM
1. Lubricate:
• Spacer
• Bearings

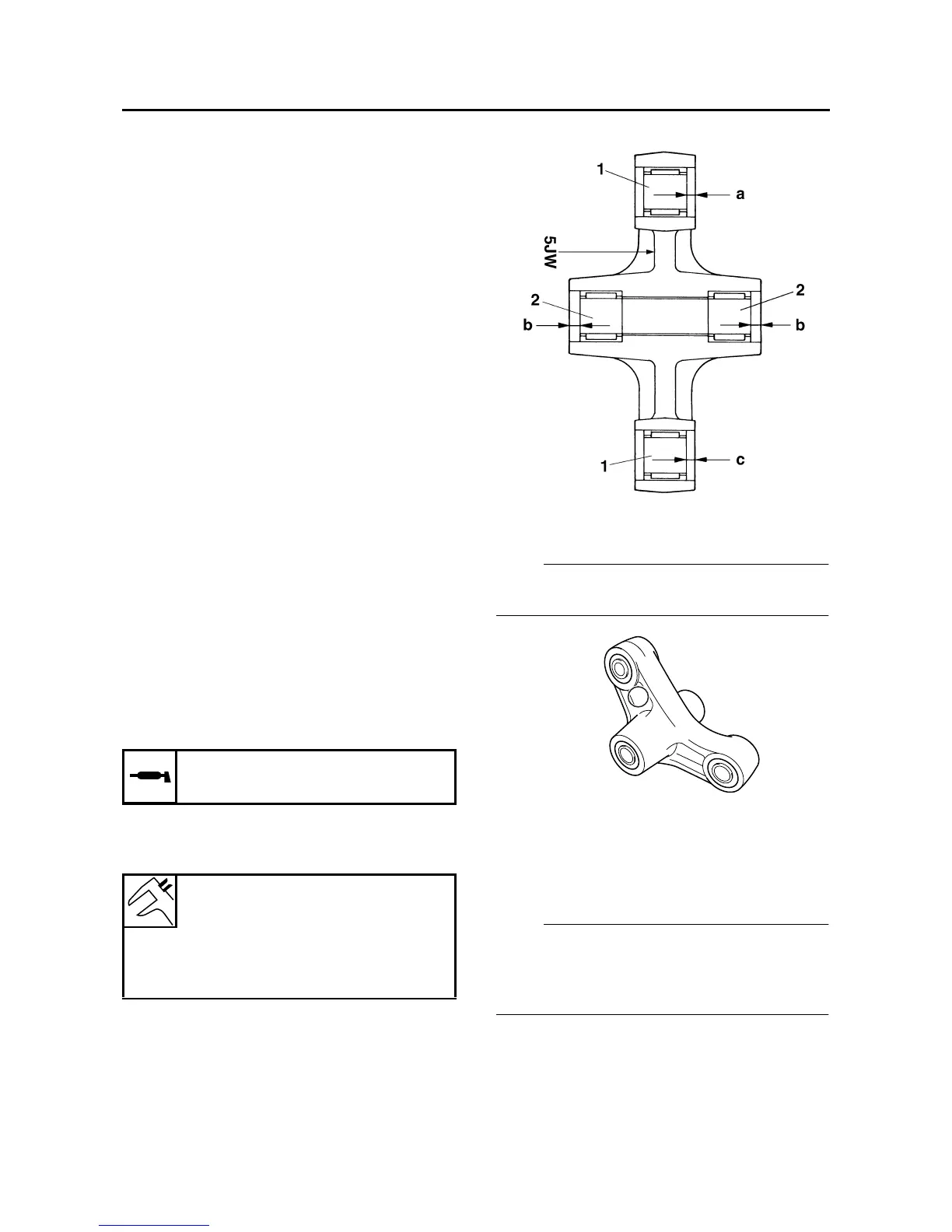

2. Install:
• Bearing “1”, “2”
(to the relay arm)
3. Install:
• Relay arm
NOTE:
Make sure that the embossed mark “5JW” on
the relay arm faces to the left.
EAS23310
INSTALLING THE REAR SHOCK
ABSORBER ASSEMBLY
1. Install:
• Rear shock absorber assembly
NOTE:
• Make sure that the warning label on the rear
shock absorber assembly faces to the right.
• When installing the rear shock absorber as-
sembly, lift up the swingarm.
Recommended lubricant
Lithium-soap-based grease
Installed depth “a”
4.5 mm (0.18 in)
Installed depth “b”
3.5–4.5 mm (0.14–0.18 in)
Installed depth “c”
4.0 mm (0.16 in)
5JW
