CHASSIS
3-31
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼

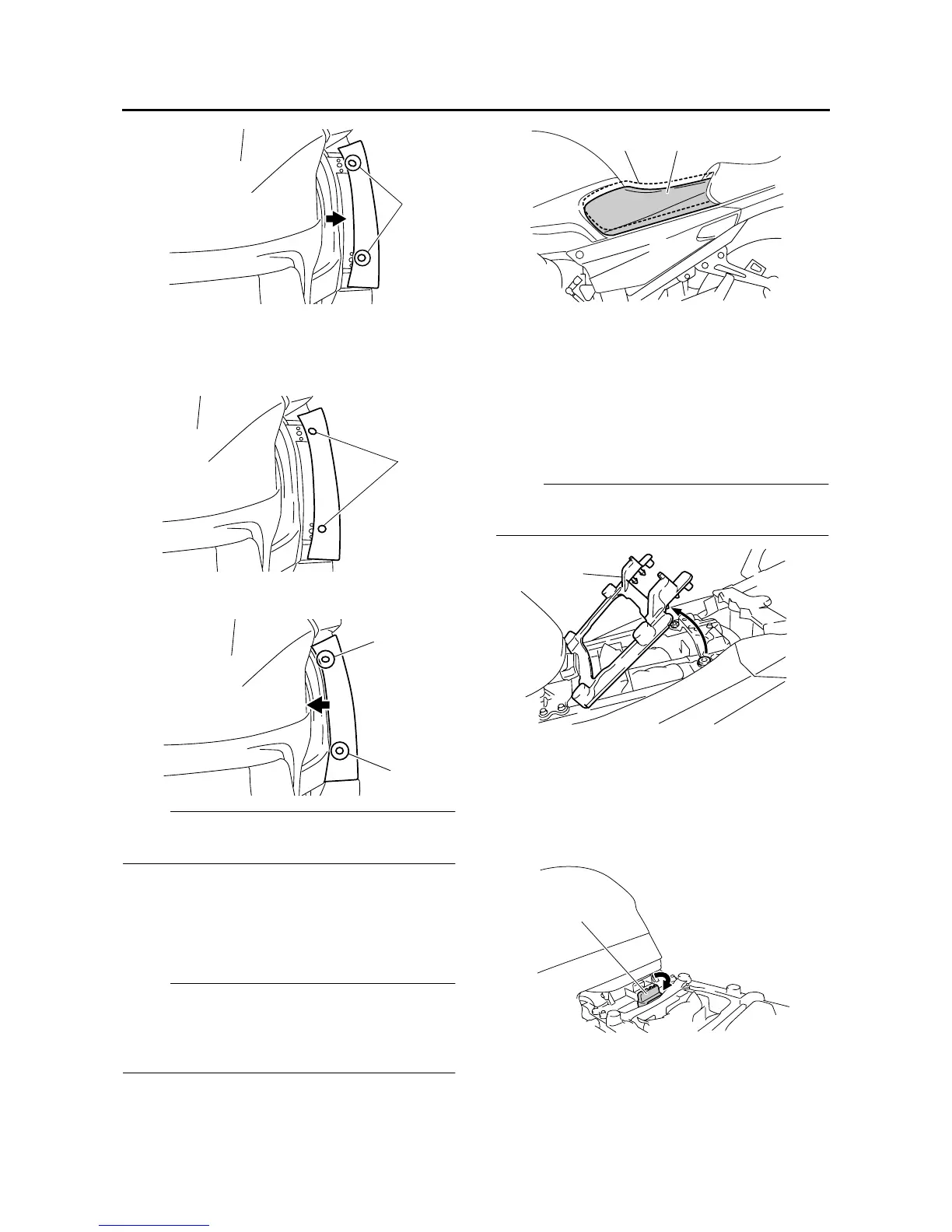

To close a side panel
a. Remove the quick fastener screws “1”.
b. Push the side panel to the closed position,
and then install the quick fastener screws “1”.
NOTE:
Make sure that the side panel is properly in-
stalled.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
ET3P61036
ADJUSTING THE RIDER SEAT HEIGHT
1. Check:
• Rider seat height
NOTE:
• The rider seat height can be adjusted to one of
two positions to suit the rider’s preference.
• The rider seat height was adjusted to the lower
position at delivery.
2. Remove:
• Passenger seat
• Rider seat
Refer to “GENERAL CHASSIS” on page 4-1.
3. Remove:
• Rider seat height position adjuster “1”
NOTE:
Remove the rider seat height position adjuster
by pulling it upward.
4. Adjust:
• Rider seat height
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
To change to the high position
a. Move the rider seat holder cover “1” to the
lower position as shown.
b. Install the rider seat height position adjuster
“2” so that the “H” mark “a” is aligned with the
match mark “b”.
1
1
1
1
a. Low position
b. High position
b
a
1
1
