FRONT FORK
4-67
17 Inner tube 1
18 Outer tube bushing 1 1 D = 52 mm (2.05 in), l = 12 mm (0.47 in)
19 Outer tube bushing 2 1 D = 51 mm (2.01 in), l = 15 mm (0.59 in)
20 Inner tube bushing 1
21 Outer tube 1
For assembly, reverse the disassembly pro-
cedure.

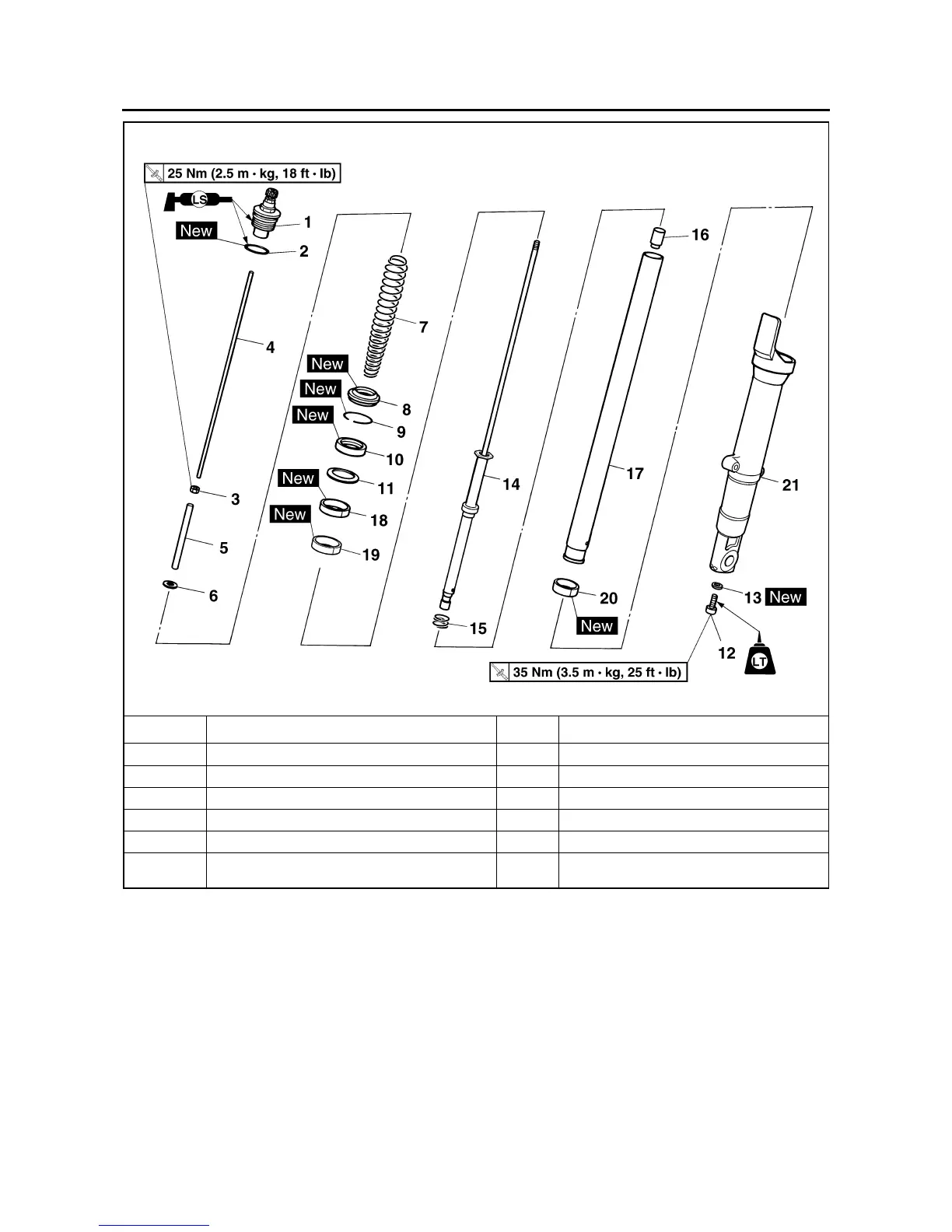

Disassembling the front fork legs
Order Job/Parts to remove Q’ty Remarks
To Next Page
