Yamaha FJR1300A - Page 325

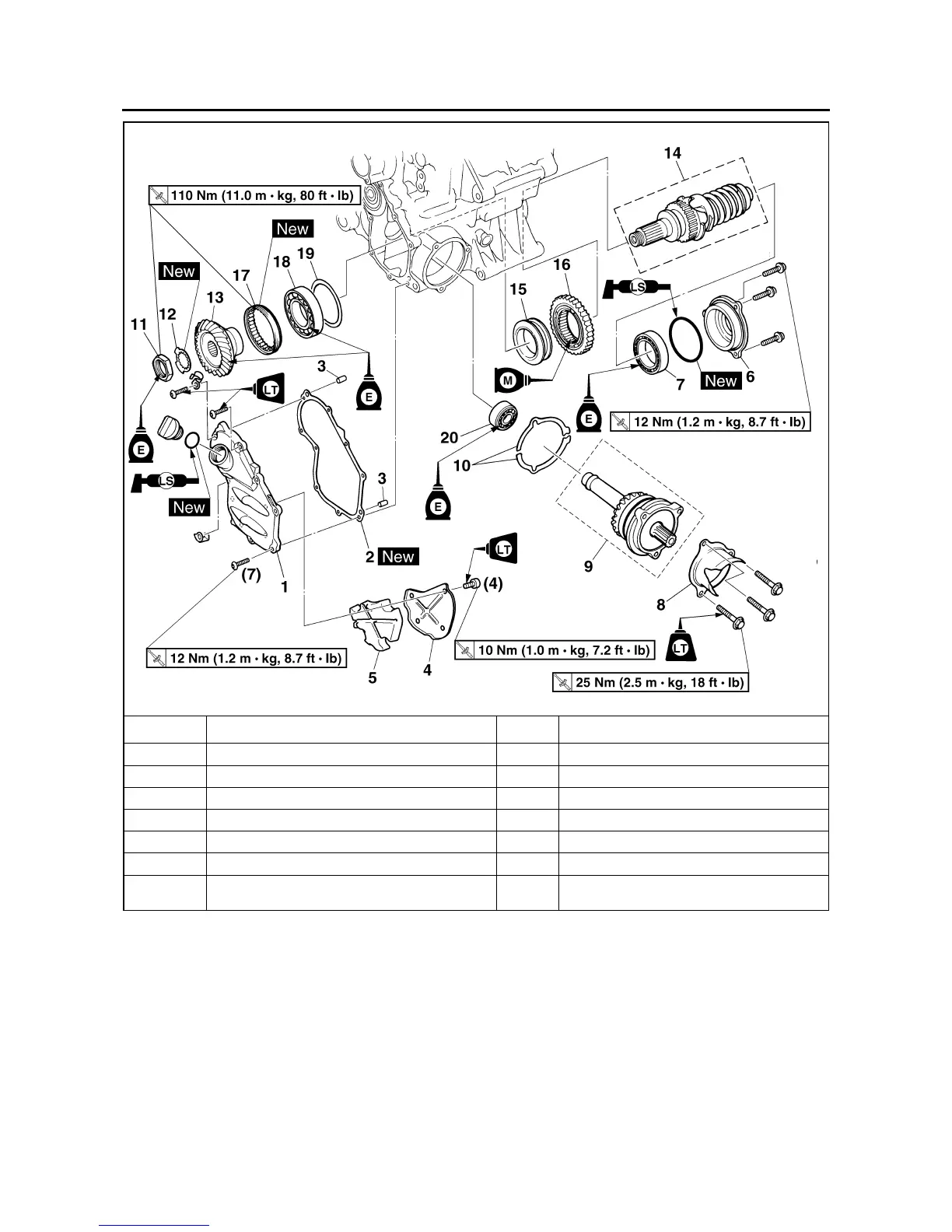

MIDDLE GEAR
5-64
15 Spacer 1
16 Middle driven gear 1
17 Bearing retainer 1
18 Bearing 1
19 Middle drive pinion gear shim
20 Bearing 1
For installation, reverse the removal proce-
dure.
Removing the middle gear
Order Job/Parts to remove Q’ty Remarks
