MIDDLE GEAR
5-65

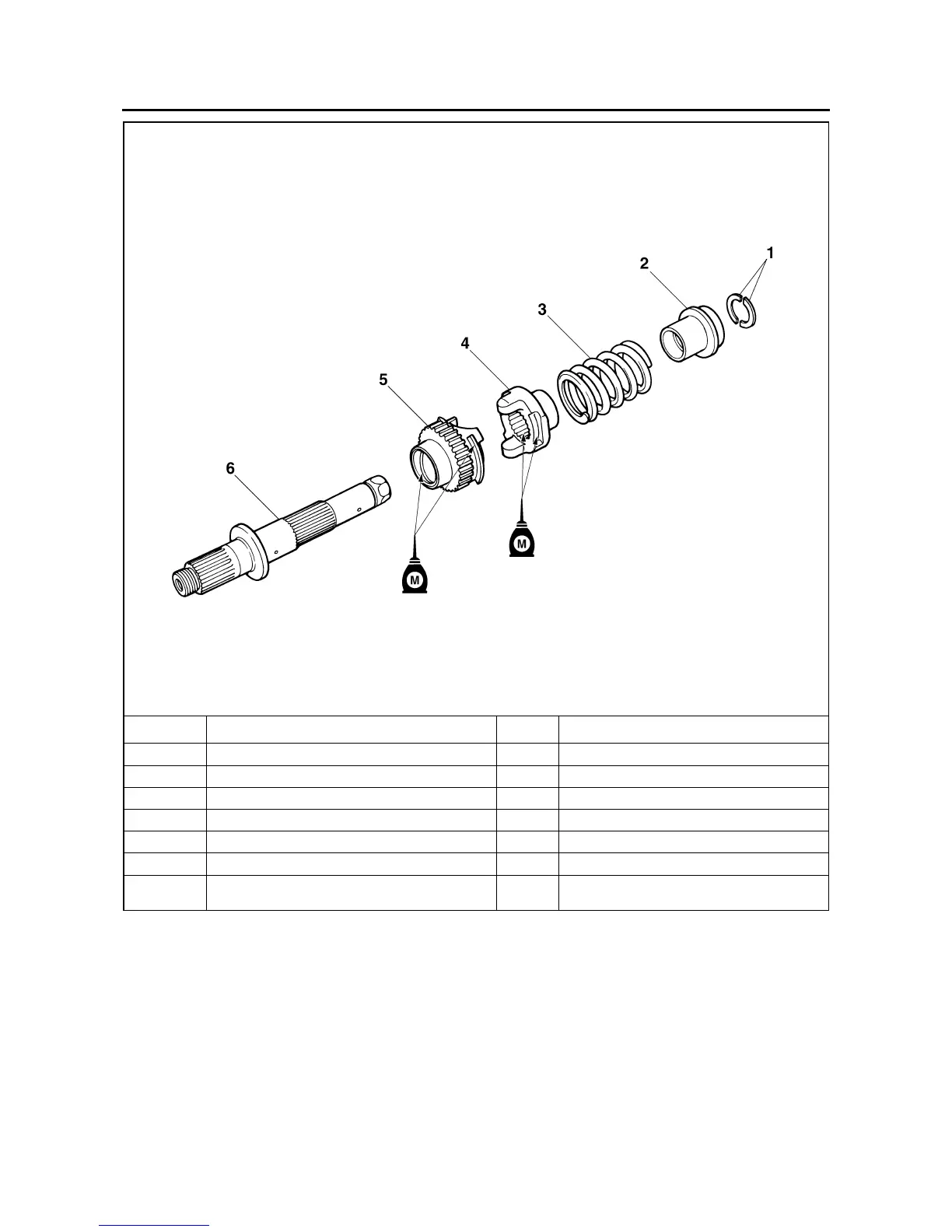

Disassembling the middle drive shaft assembly
Order Job/Parts to remove Q’ty Remarks
1 Spring retainer 2
2 Spring seat 1
3 Damper spring 1
4 Damper driven cam 1
5 Damper drive cam 1
6 Middle drive shaft 1
For assembly, reverse the disassembly pro-
cedure.
