Yamaha FJR1300A - Page 183

FRONT BRAKE
4-26
* Apply silicon grease

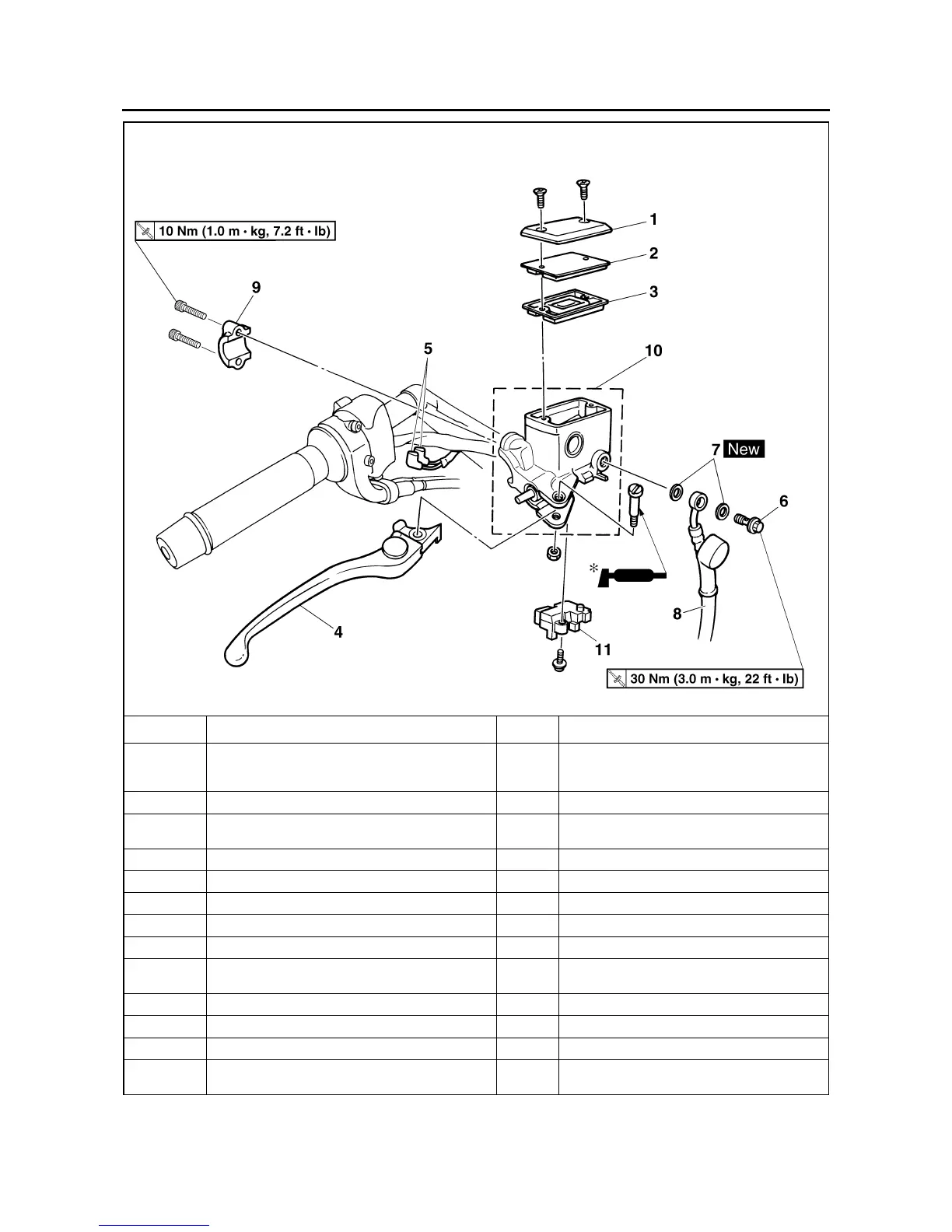

Removing the front brake master cylinder
Order Job/Parts to remove Q’ty Remarks
Brake fluid
Drain.
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM (ABS)” on page 3-23.
1 Brake master cylinder reservoir cap 1
2
Brake master cylinder reservoir diaphragm hold-
er
1
3 Brake master cylinder reservoir diaphragm 1
4Brake lever 1
5 Front brake light switch connector 2 Disconnect.
6 Brake hose union bolt 1
7 Copper washer 2
8
Brake hose (front brake master cylinder to hy-
draulic unit)
1
9 Front brake master cylinder holder 1
10 Front brake master cylinder 1
11 Front brake light switch 1
For installation, reverse the removal proce-
dure.
