GENERAL CHASSIS
4-6

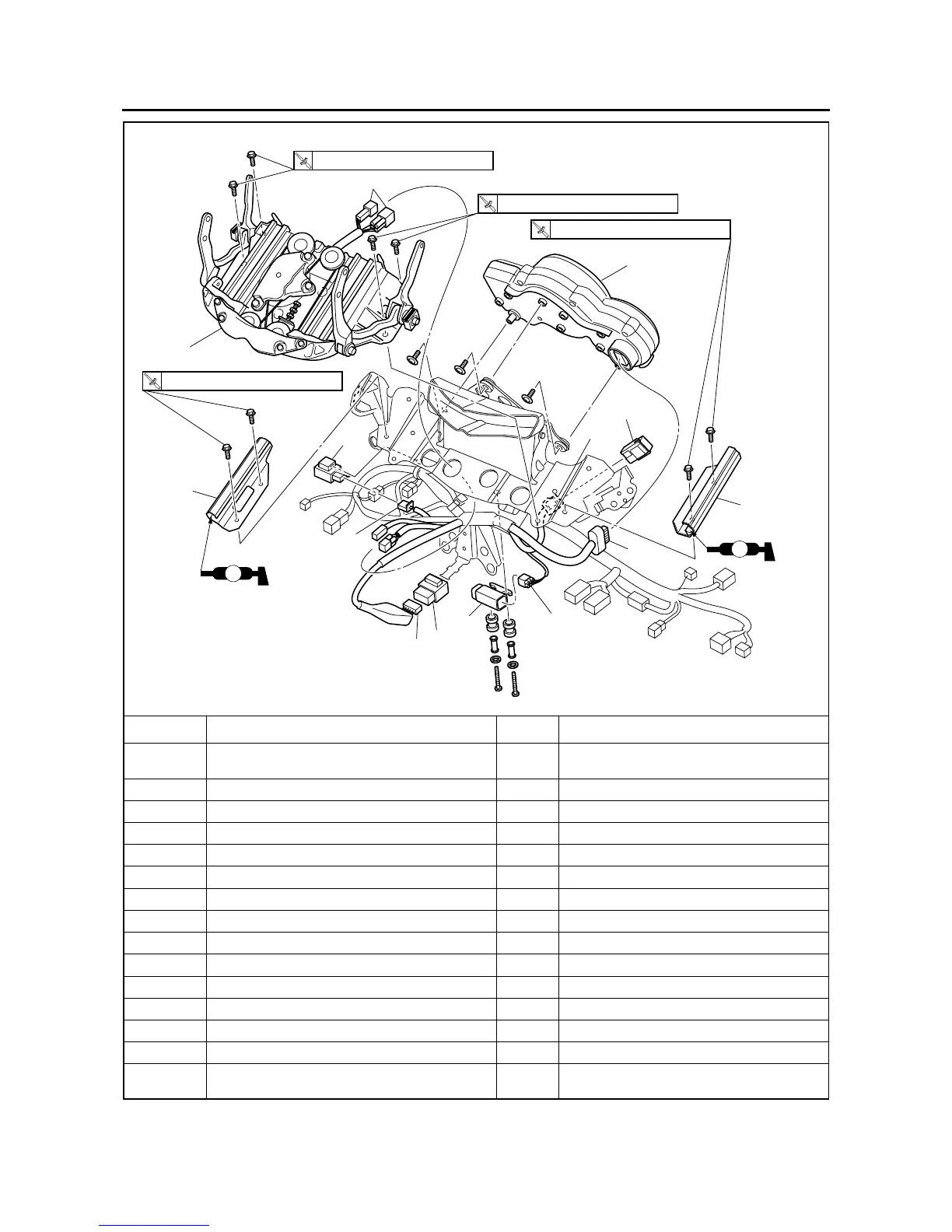

Removing the windshield drive unit, meter assembly, and relays
Order Job/Parts to remove Q’ty Remarks
Front cowling stay
Refer to “Disassembling the front cowling
assembly”.
1 Windshield drive unit coupler 2 Disconnect.
2 Windshield drive unit side rail 2
3 Windshield drive unit 1
4 Meter assembly coupler 1 Disconnect.
5 Meter assembly 1
6 Relay unit coupler 1 Disconnect.
7 Relay unit 1
8 Turn signal/hazard relay coupler 1 Disconnect.
9 Turn signal/hazard relay 1
10 Headlight relay (dimmer) coupler 1 Disconnect.
11 Headlight relay (dimmer) 1
12 Lean angle sensor coupler 1 Disconnect.
13 Lean angle sensor 1
For installation, reverse the removal proce-
dure.
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
LS
LS
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
3
2
2
1
5
6
9
7
8
1213
4
10
11
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
To Next Page
