GENERAL CHASSIS
4-11

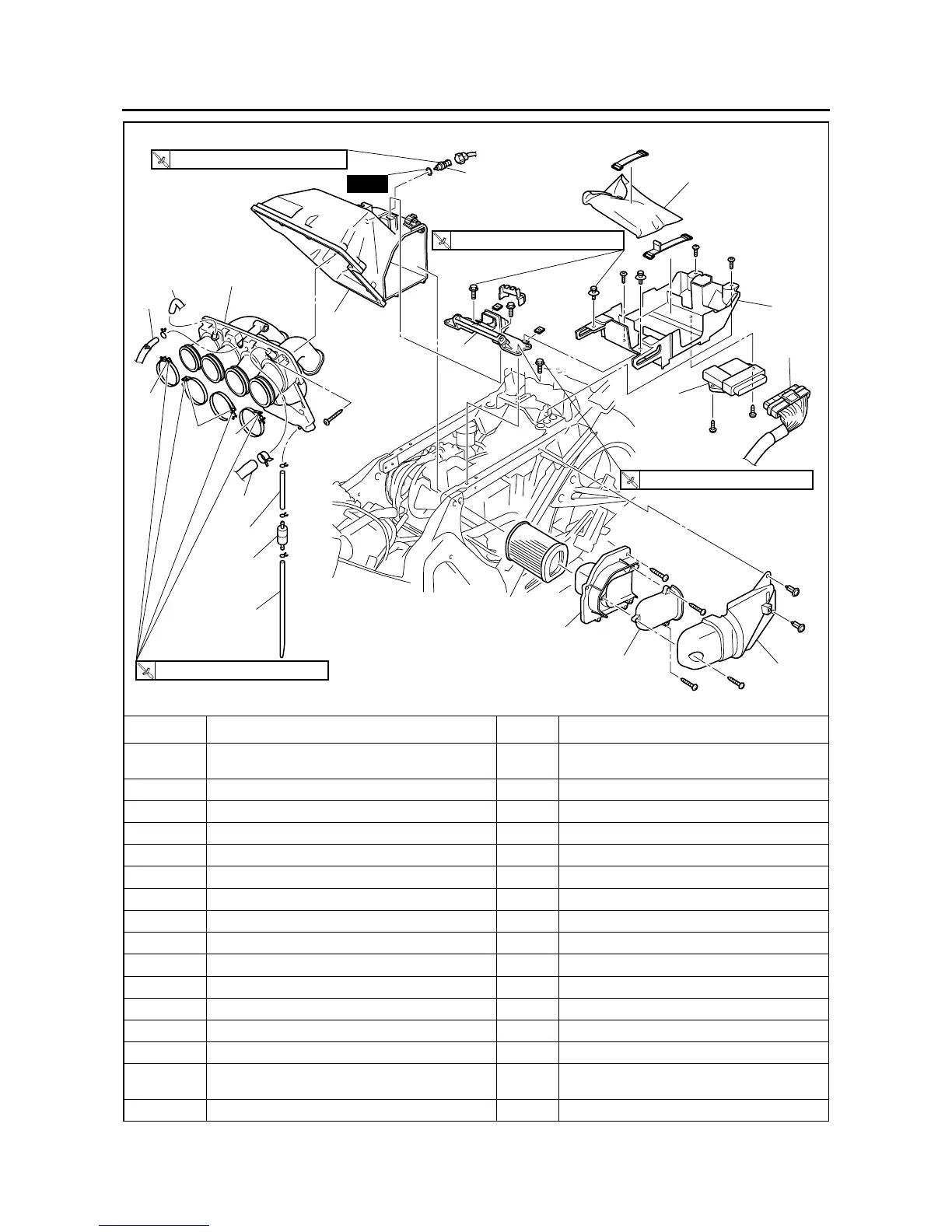

Removing the air filter case
Order Job/Parts to remove Q’ty Remarks
Left side cover/T-bar
Refer to “GENERAL CHASSIS” on page
4-1.
Fuel tank Refer to “FUEL TANK” on page 7-1.
1 Air shroud 1
2 Air duct 1
3 Air filter case cover 1
4 Air filter element 1
5Tool kit 1
6 ECU coupler 1 Disconnect.
7 Storage compartment 1
8 ECU (engine control unit) 1
9 Rear lower fuel tank bracket 1
10 Intake air temperature sensor 1
11 Bypass air unit inlet hose 1 Disconnect.
12 Crankcase breather hose 1 Disconnect.
13
Air induction system hose (air filter case joint
assembly to 3-way joint)
1 Disconnect.
14 Air filter case joint clamp screw 4 Loosen.
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
R
.
.
8 Nm (0.8 m
•
kg, 5.8 ft
•
Ib)
T
R
.
.
18 Nm (1.8 m
•
kg, 13 ft
•
Ib)
New
T
R
.
.
4 Nm (0.4 m
•
kg, 2.9 ft
•
Ib)
5
6
7
1
2
(4)
(11)
(4)
8
9
10
14
16
3
4
14
17
18
15
12
17
13
11
14
To Next Page
