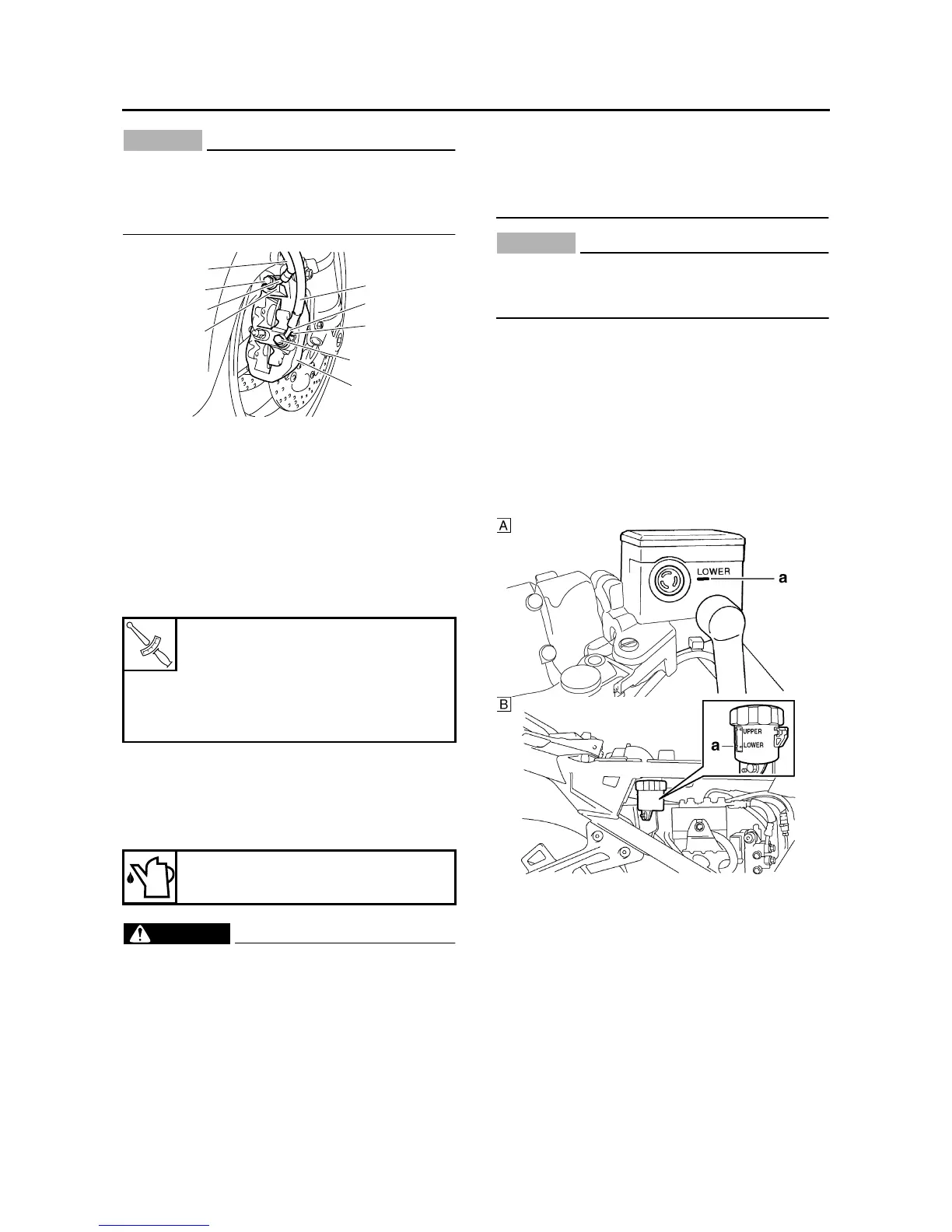

FRONT BRAKE
4-34
CAUTION:
ECA14170
When installing the brake hose onto the
brake caliper “1”, make sure the brake pipe
“a” touches the projection “b” on the brake
caliper.
2. Remove:
• Brake caliper
3. Install:
• Brake pads
• Brake pad springs
• Brake pad bolts
• Brake caliper
• Brake hose holder
Refer to “REPLACING THE FRONT BRAKE
PADS” on page 4-31.
4. Fill:
• Brake master cylinder reservoir
• Brake fluid reservoir
(with the specified amount of the recom-
mended brake fluid)
WARNING
EW3P61008
• Use only the designated brake fluid. Other
brake fluids may cause the rubber seals to
deteriorate, causing leakage and poor
brake performance.
• Refill with the same type of brake fluid that
is already in the system. Mixing brake fluids
may result in a harmful chemical reaction,
leading to poor brake performance.
• When refilling, be careful that water does
not enter the brake master cylinder reser-
voir and brake fluid reservoir. Water will
significantly lower the boiling point of the
brake fluid and could cause vapor lock.
CAUTION:
ECA13540
Brake fluid may damage painted surfaces
and plastic parts. Therefore, always clean up
any spilt brake fluid immediately.
5. Bleed:
• Brake system
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM (ABS)” on page 3-23.
6. Check:
• Brake fluid level
Below the minimum level mark “a” → Add the
recommended brake fluid to the proper level.
Refer to “CHECKING THE BRAKE FLUID
LEVEL” on page 3-22.
7. Check:
• Brake lever and brake pedal operation
Soft or spongy feeling → Bleed the brake sys-
tem.
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM (ABS)” on page 3-23.
T
R
.
.
Brake pad bolt
17 Nm (1.7 m·kg, 12 ft·lb)
Brake caliper bolt
40 Nm (4.0 m·kg, 29 ft·lb)
Brake hose holder bolt
7 Nm (0.7 m·kg, 5.1 ft·lb)
Recommended fluid
DOT 4
4
a
3
a
b
4
1
b
2
A. Front brake
B. Unified brake system
