REAR BRAKE
4-38

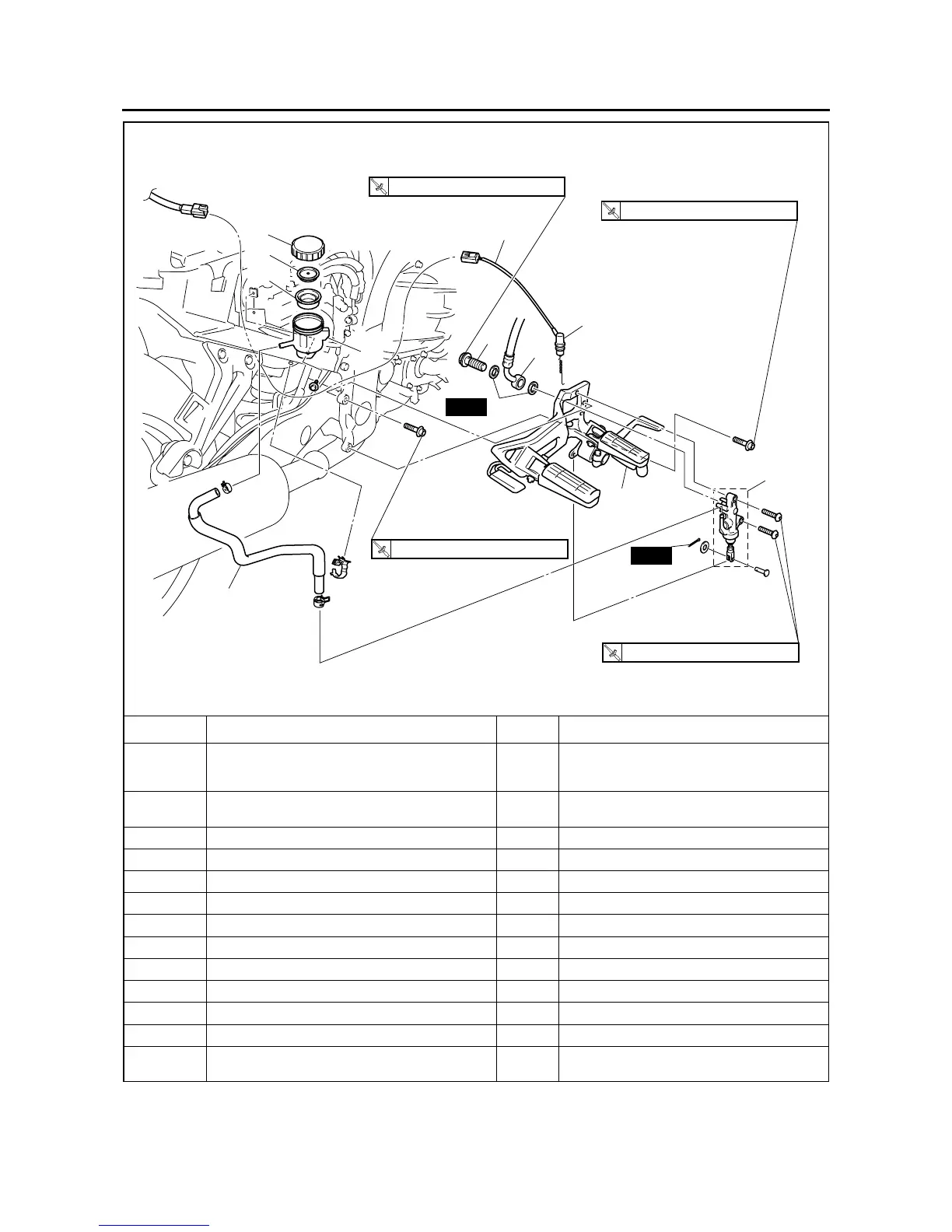

Removing the rear brake master cylinder
Order Job/Parts to remove Q’ty Remarks
Brake fluid
Drain.
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM (ABS)” on page 3-23.
Right side cover/Storage compartment
Refer to “GENERAL CHASSIS” on page
4-1.
1 Brake fluid reservoir cap 1
2 Brake fluid reservoir diaphragm holder 1
3 Brake fluid reservoir diaphragm 1
4 Brake fluid reservoir 1
5 Brake fluid reservoir hose 1
6 Rear brake light switch coupler 1 Disconnect.
7 Right footrest assembly 1
8 Rear brake light switch 1
9 Brake hose union bolt 1
10 Copper washer 2
11
Brake hose (rear brake master cylinder to hy-
draulic unit)
1 Disconnect.
1
2
3
4
5
6
7
9
10
11
8
12
T
R
.
.
28 Nm (2.8 m
•
kg, 20 ft
•
Ib)
New
New
T
R
.
.
28 Nm (2.8 m
•
kg, 20 ft
•
Ib)
T
R
.
.
30 Nm (3.0 m
•
kg, 22 ft
•
Ib)
T
R
.
.
18 Nm (1.8 m
•
kg, 13 ft
•
Ib)
To Next Page
