REAR BRAKE
4-42

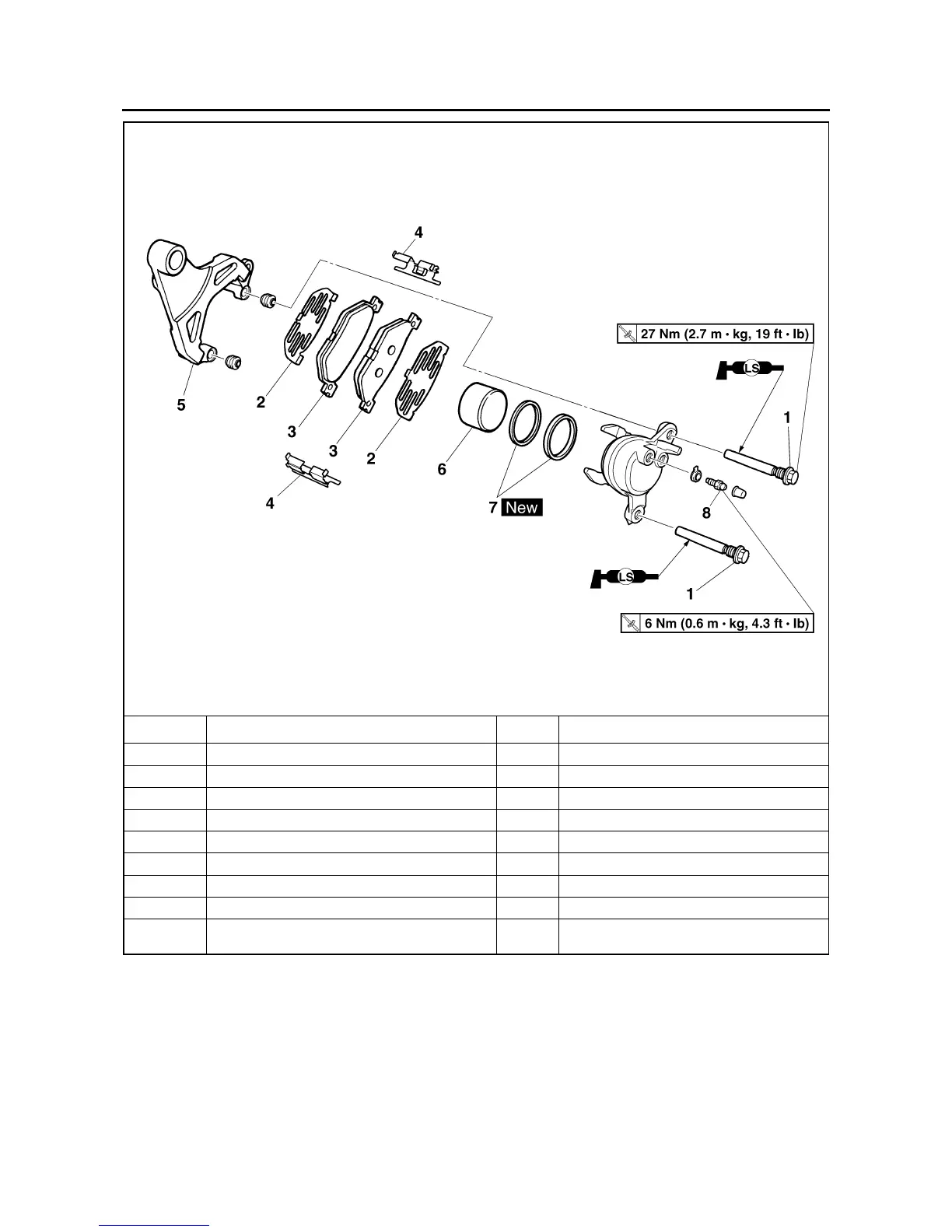

Disassembling the rear brake caliper
Order Job/Parts to remove Q’ty Remarks
1 Rear brake caliper bolt 2
2 Brake pad shim 2
3 Rear brake pad 2
4 Brake pad spring 2
5 Rear brake caliper bracket 1
6 Brake caliper piston 1
7 Brake caliper piston seal 2
8 Bleed screw 1
For assembly, reverse the disassembly pro-
cedure.
