ABS (ANTI-LOCK BRAKE SYSTEM)
4-51

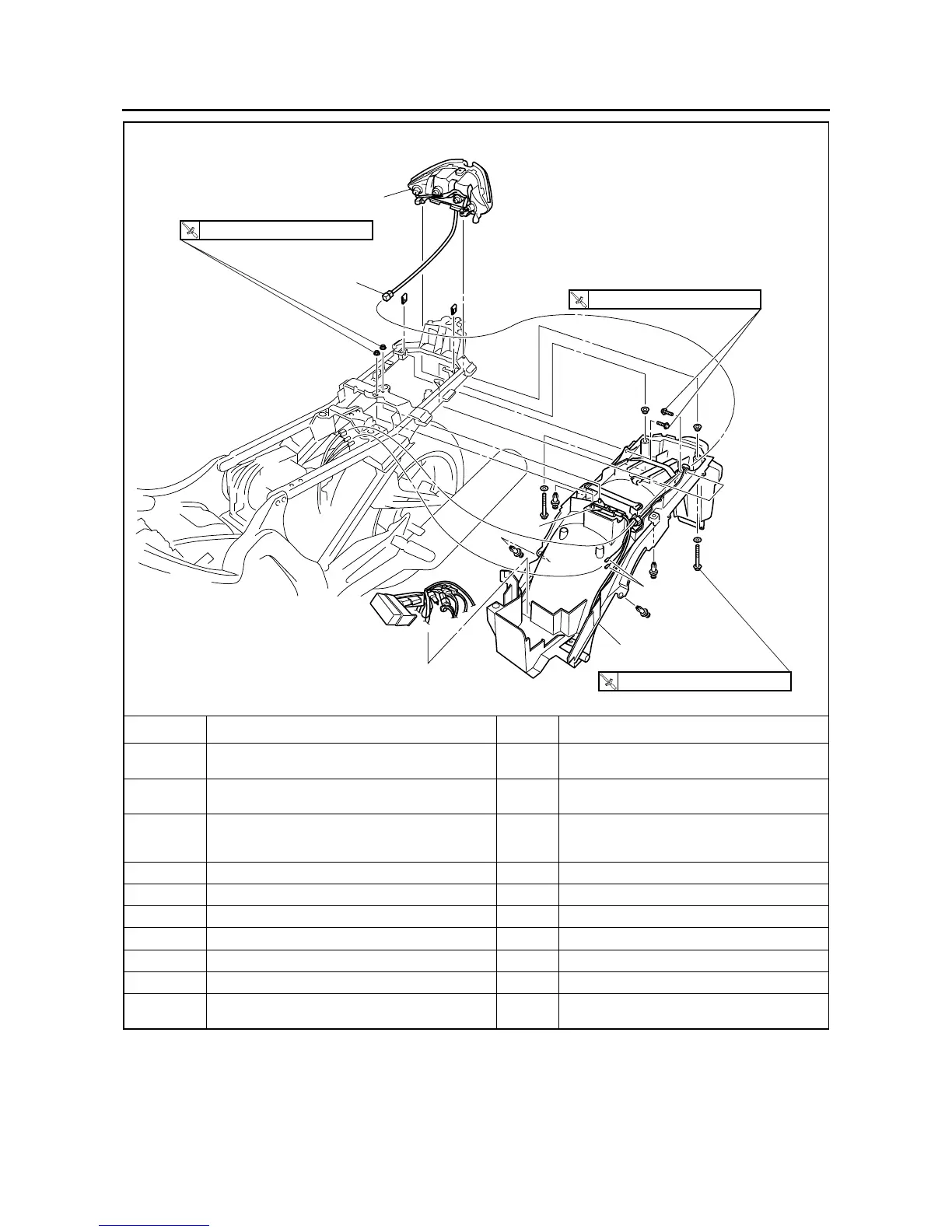

Removing the rear fender assembly
Order Job/Parts to remove Q’ty Remarks
Air filter case
Refer to “GENERAL CHASSIS” on page
4-1.
ABS ECU/ABS motor relay
Refer to “ABS (ANTI-LOCK BRAKE SYS-
TEM)” on page 8-111.
Brake fluid
Drain.
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM (ABS)” on page 3-23.
Brake fluid reservoir Refer to “REAR BRAKE” on page 4-37.
1 Tail/brake light assembly coupler 1 Disconnect.
2 License plate light connector 2 Disconnect.
3 Tail/brake light assembly 1
4 Seat lock cable assembly 1
5 Rear fender assembly 1
For installation, reverse the removal proce-
dure.
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
1
3
2
5
4
To Next Page
