ABS (ANTI-LOCK BRAKE SYSTEM)
4-58
• If the pulse is hardly felt in either the brake
lever or brake pedal, check that the brake
hoses are connected correctly to the hy-
draulic unit.
• If the operation of the hydraulic unit is normal,
delete all of the malfunction codes.

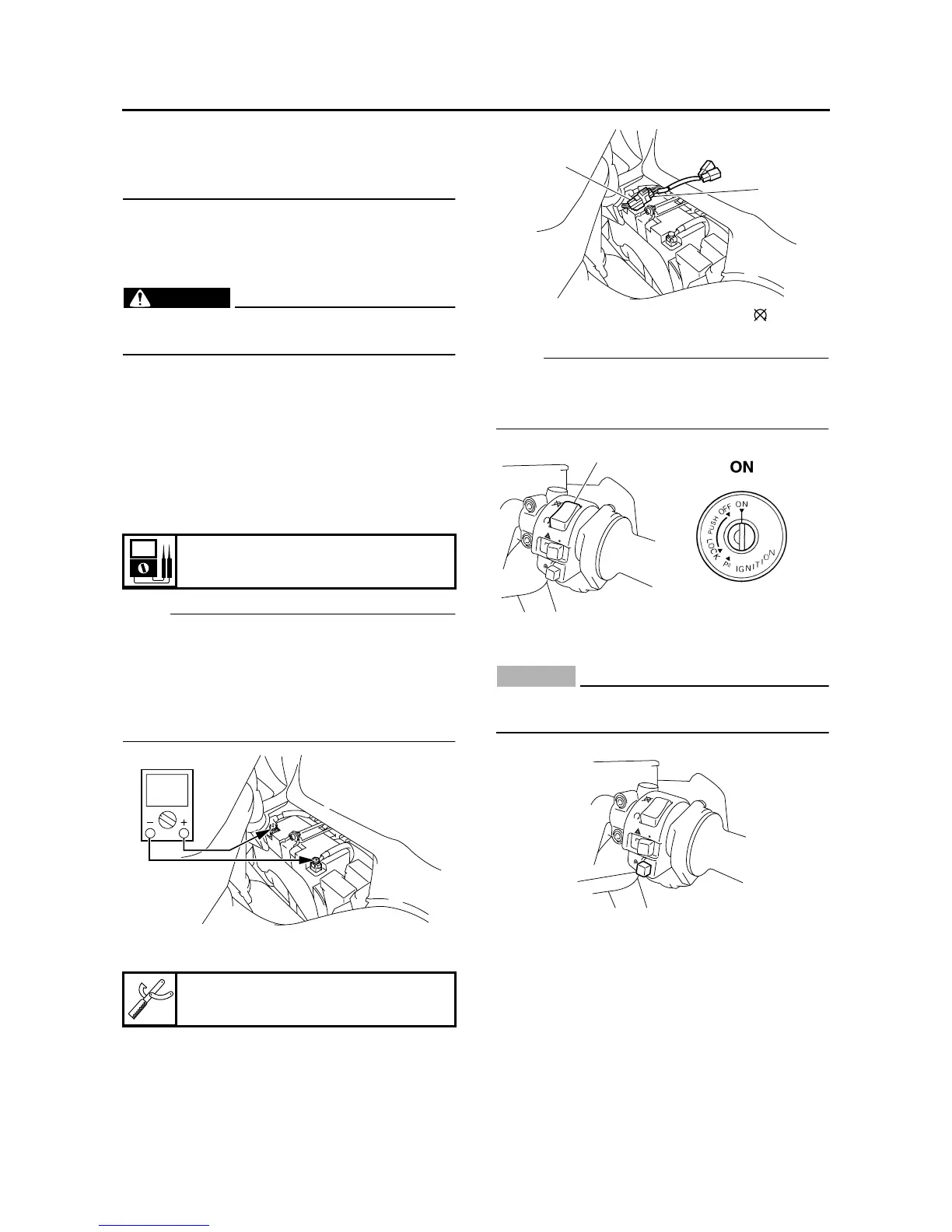

Hydraulic unit operation test 2
WARNING
EWA13120
Securely support the vehicle so that there is
no danger of it falling over.
1. Place the vehicle on the centerstand.
2. Turn the main switch to “OFF”.
3. Remove:
• Front cowling right inner panel 1
Refer to “GENERAL CHASSIS” on page 4-1.
4. Check:
• Battery voltage
Lower than 12.8 V → Charge or replace the
battery.
NOTE:
• If the battery voltage is lower than 12.8 V,
charge the battery, and then perform hydraulic
unit operation test 2.
• If the battery voltage is lower than 10 V, the
ABS warning light comes on and the ABS does
not operate.
5. Connect the test coupler adapter “1” to the
ABS test coupler “2”.
6. Set the engine stop switch “1” to “”.
7. Turn the main switch to “ON”.
NOTE:
After turning the main switch to “ON”, wait ap-
proximately 2 seconds until the ABS warning
light goes off.
8. Push the start switch “1” for at least 4 sec-
onds.
CAUTION:
ECA14790
Do not operate the brake lever or the brake
pedal.
Battery voltage
Higher than 12.8 V
Test coupler adapter
90890-03149
2
1
1
1
