SHAFT DRIVE
4-98
f = the ring gear bearing thickness constant.
Example:
If the final gear case is marked “51”, the ring
gear bearing housing is marked “35”, the ring
gear is marked “- 05”, and “f” is 13.00:
Therefore, the calculated ring gear shim
thickness is 0.41 mm.
Shim sizes are supplied in the following thick-
nesses.
Since the ring gear shims are only available
in 0.10 mm increments, round off the hun-
dredths digit.
In the example above, the calculated ring
gear shim thickness is 0.41 mm. The chart in-
structs you to round off the 1 to 0. Thus, you
should use a 0.40 mm ring gear shim.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲

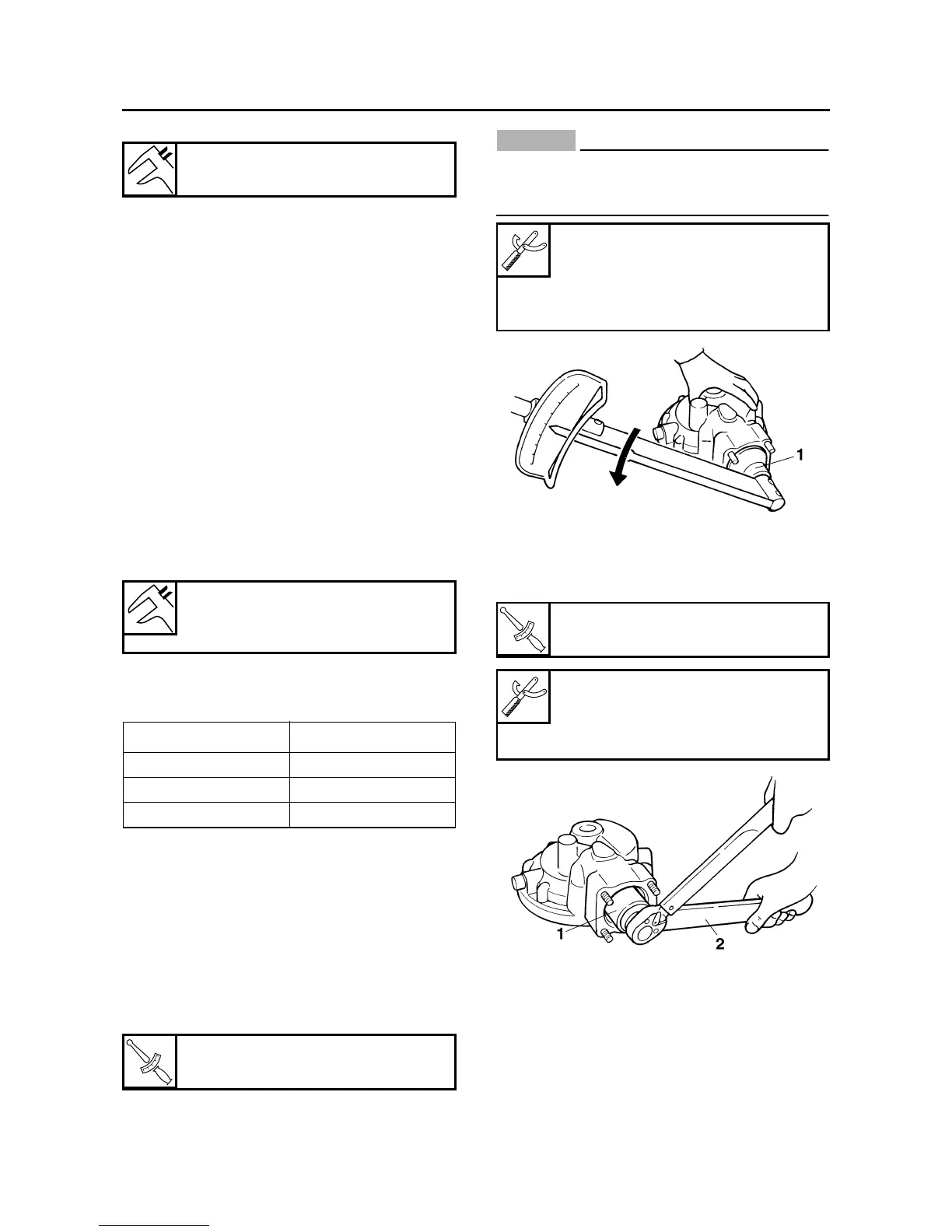

2. Install:
• Shims (as calculated)
• Final drive pinion gear
• Bearing retainer
(with the bearing retainer wrench “1”)
CAUTION:
ECA14350
The bearing retainer has left-hand threads.
To tighten the bearing retainer, turn it coun-
terclockwise.
3. Install:
• Coupling gear “1”
• Coupling gear nut
(with the coupling gear/middle shaft tool “2”)
Ring gear bearing thickness
13.00 mm (0.51 in)
B = (45 + 51/100) + (3 + 35/100) -
[(35.40 + 5/100) + 13]
= (45 + 0.51) + (3 + 0.35) -
[(35.40 + 0.05) + 13]
= 45.51 + 3.35 - [(35.40 + 0.05)
+ 13]
= 48.86 - [35.45 + 13]
= 48.86 - 48.45
=0.41
Ring gear shims
Thickness (mm)
0.25 0.30 0.40 0.50
Hundredth Rounded value
0, 1, 2 0
3, 4, 5, 6, 7 5
8, 9 10
T
R
.
.
Bearing retainer
110 Nm (11.0 m·kg, 72 ft·lb)
Bearing retainer wrench
90890-04050
Pinion bearing retainer & remov-
er
YM-04050
T
R
.
.
Coupling gear nut
110 Nm (11.0 m·kg, 80 ft·lb)
Coupling gear/middle shaft tool
90890-01229
Gear holder
YM-01229
To Next Page
