ENGINE REMOVAL
5-8
NOTE:
Do not fully tighten the bolts.

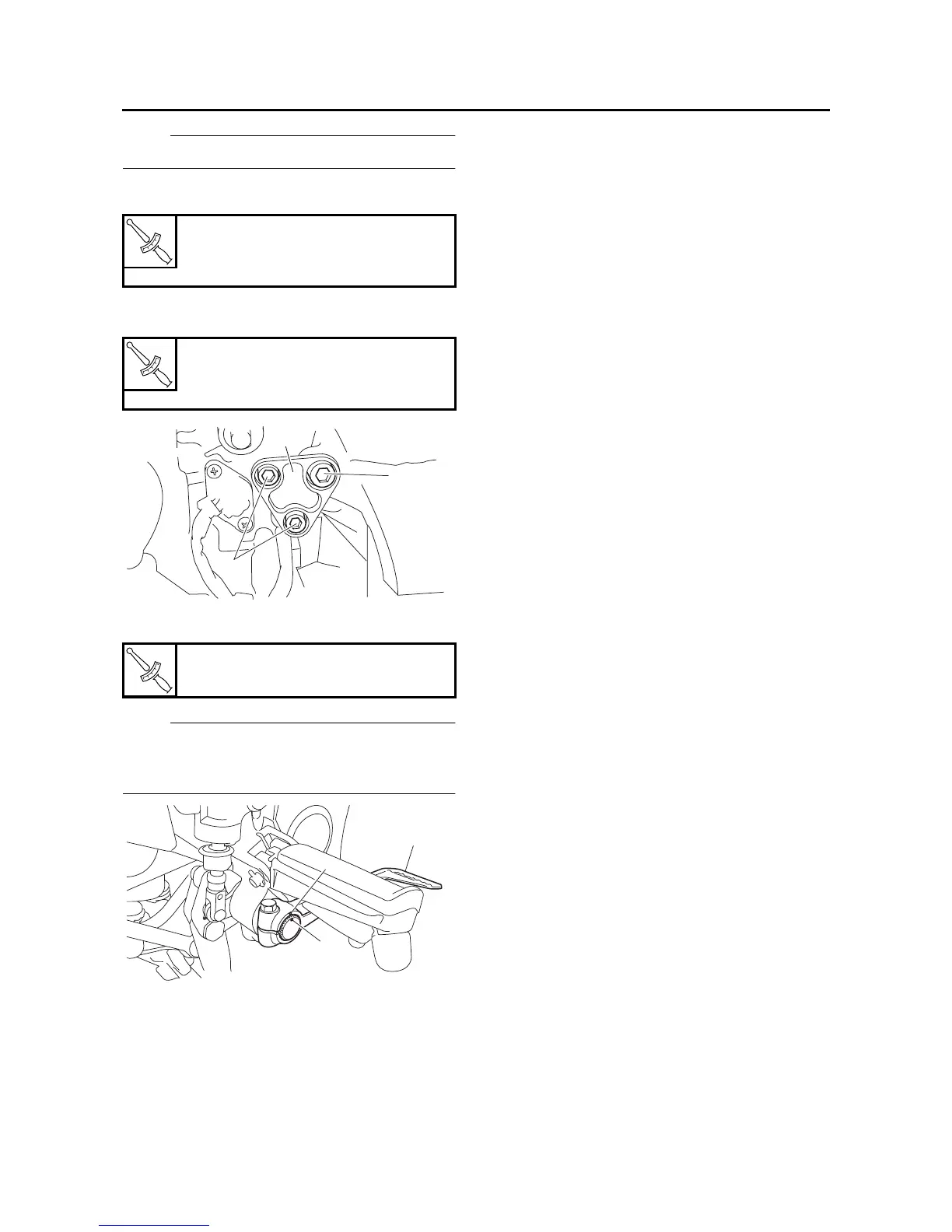

14.Tighten:
• Engine bracket bolt (left rear side) “2”
15.Tighten:
• Engine mounting bolts (left rear side) “3”
16.Install:
• Brake pedal “1”
NOTE:
Align the punch mark “a” on the brake pedal with
the punch mark “b” on the brake pedal pivot
shaft.
T
R
.
.
Engine bracket bolt (left rear
side)
32 Nm (3.2 m·kg, 23 ft·lb)
T
R
.
.
Engine mounting bolt (left rear
side)
16 Nm (1.6 m·kg, 11 ft·lb)
T
R
.
.
Brake pedal pinch bolt
8 Nm (0.8 m·kg, 5.8 ft·lb)
3
2
1
a
b
1
