CAMSHAFTS
5-10

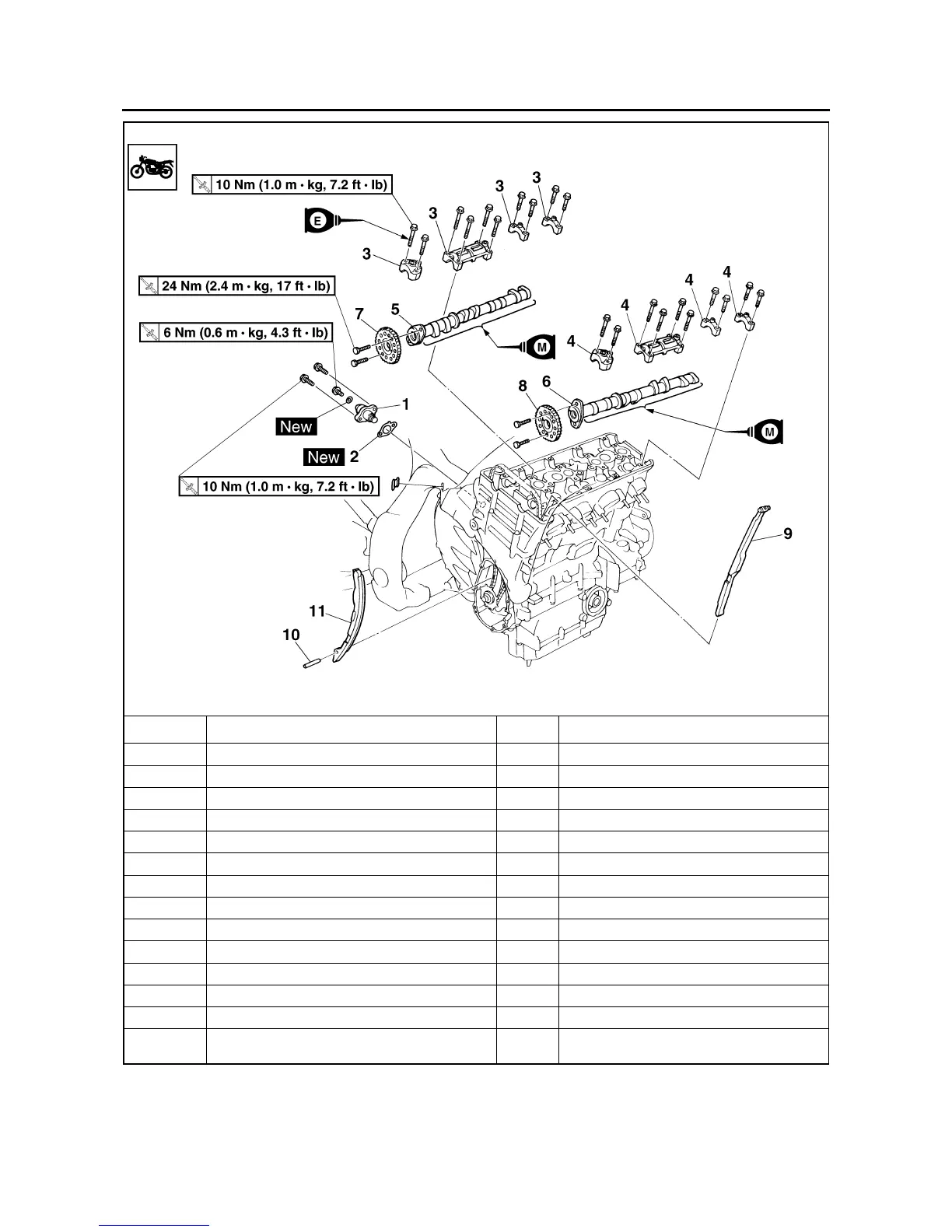

Removing the camshafts
Order Job/Parts to remove Q’ty Remarks
Throttle bodies Refer to “THROTTLE BODIES” on page 7-4.
Pickup rotor cover Refer to “PICKUP ROTOR” on page 5-34.
1 Timing chain tensioner 1
2 Timing chain tensioner gasket 1
3 Intake camshaft cap 4
4 Exhaust camshaft cap 4
5 Intake camshaft 1
6 Exhaust camshaft 1
7 Intake camshaft sprocket 1
8 Exhaust camshaft sprocket 1
9 Timing chain guide (exhaust side) 1
10 Pin 1
11 Timing chain guide (intake side) 1
For installation, reverse the removal proce-
dure.
