VALVES AND VALVE SPRINGS
5-21
EAS24270
VALVES AND VALVE SPRINGS

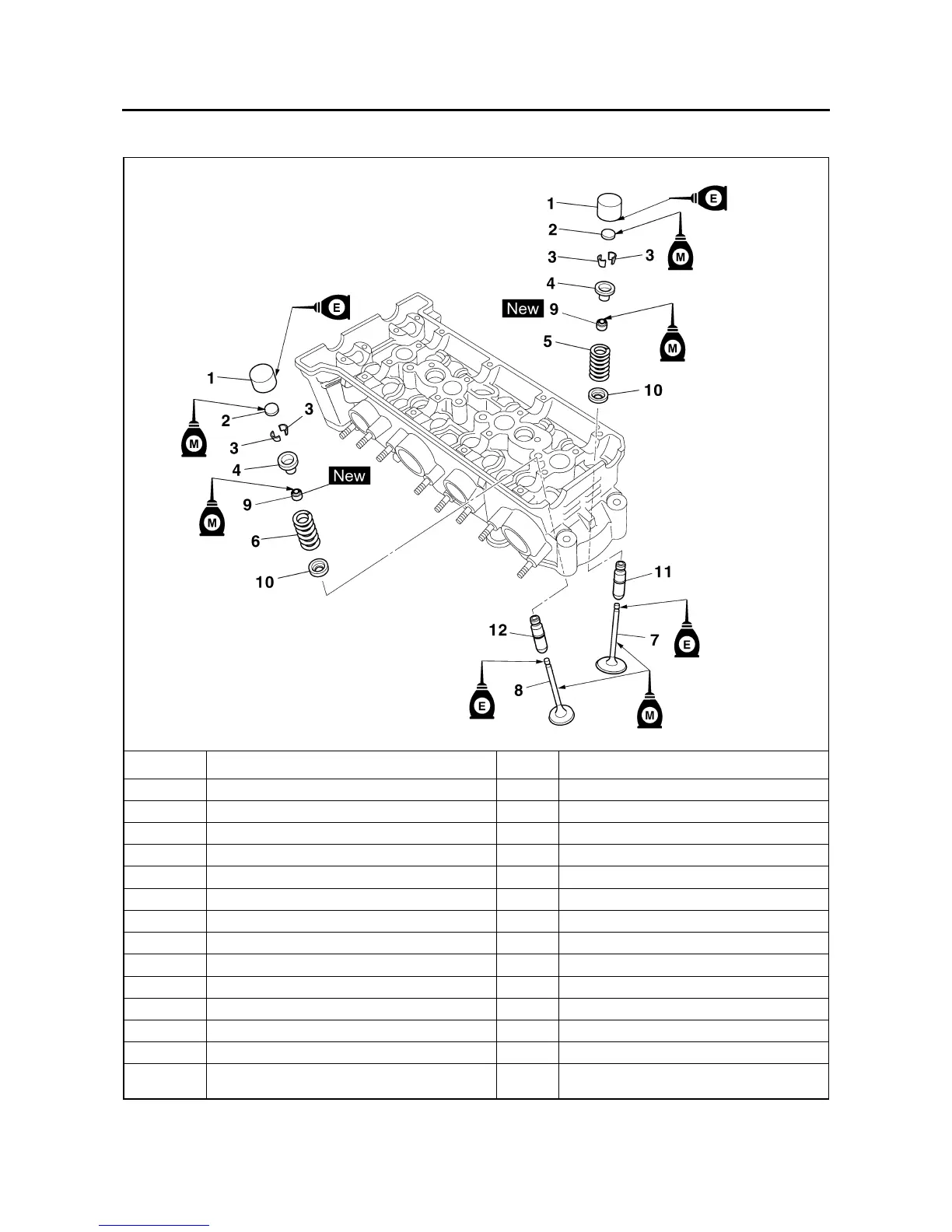

Removing the valves and valve springs
Order Job/Parts to remove Q’ty Remarks
Cylinder head Refer to “CYLINDER HEAD” on page 5-18.
1 Valve lifter 16
2 Valve pad 16
3 Valve cotter 32
4 Upper spring seat 16
5 Intake valve spring 8
6 Exhaust valve spring 8
7 Intake valve 8
8 Exhaust valve 8
9 Valve stem seal 16
10 Lower spring seat 16
11 Intake valve guide 8
12 Exhaust valve guide 8
For installation, reverse the removal proce-
dure.
