CLUTCH
5-47

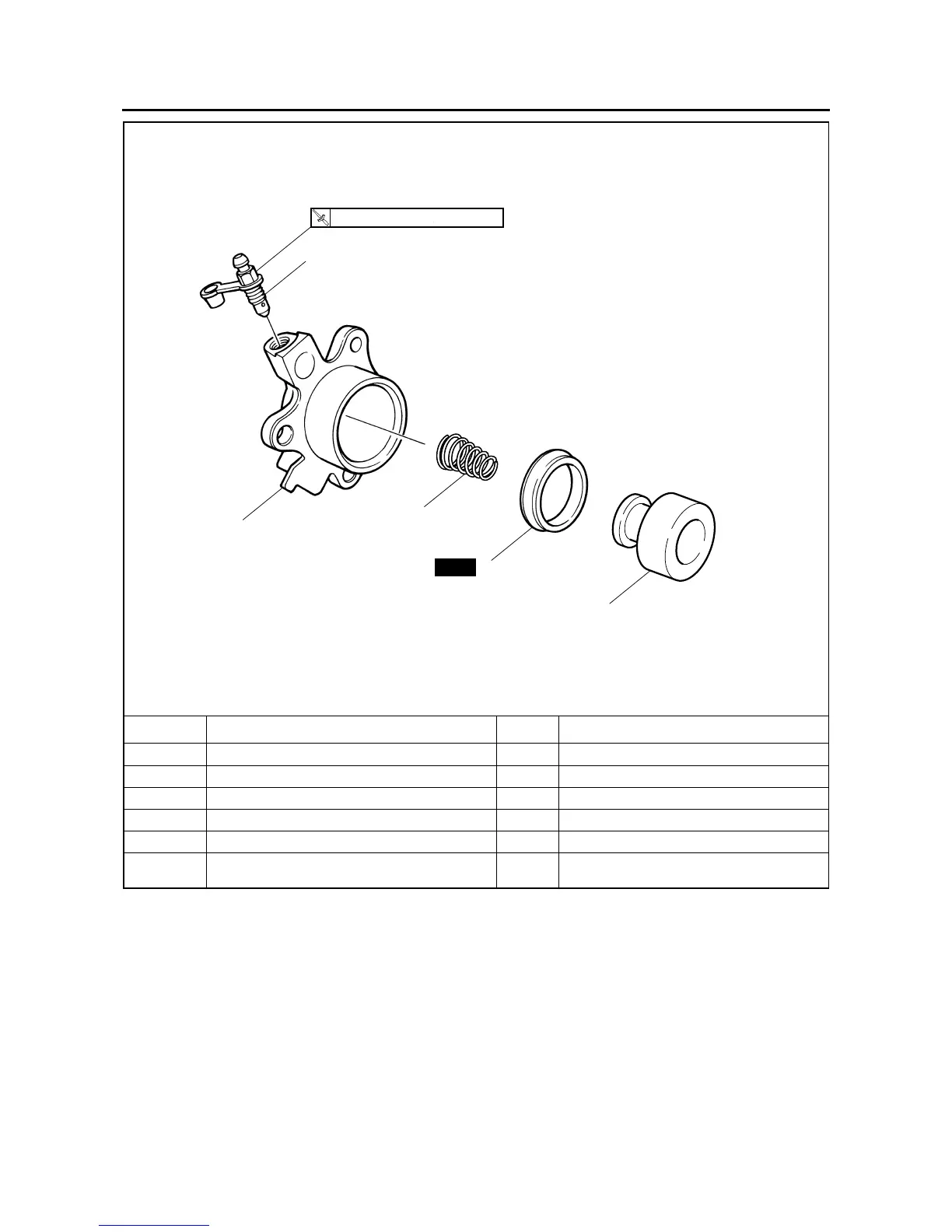

Disassembling the clutch release cylinder
Order Job/Parts to remove Q’ty Remarks
1 Clutch release cylinder piston 1
2 Clutch release cylinder spring 1
3 Clutch release cylinder piston seal 1
4 Bleed screw 1
5 Clutch release cylinder body 1
For assembly, reverse the disassembly pro-
cedure.
5
2
3
1
4
New
T
R
.
.
6 Nm (0.6 m
•
kg, 4.3 ft
•
Ib)
