TRANSMISSION
5-96

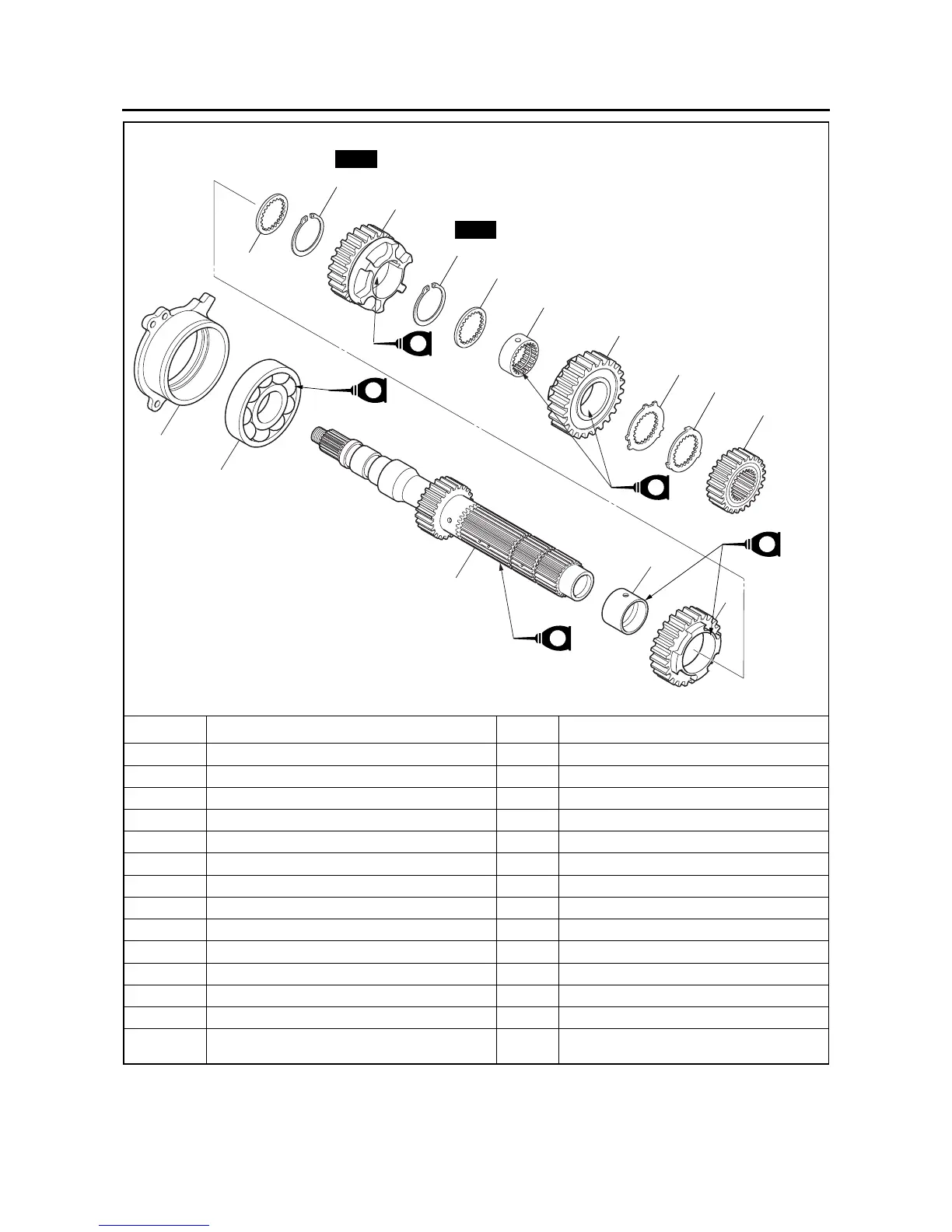

Disassembling the main axle assembly
Order Job/Parts to remove Q’ty Remarks
1 2nd pinion gear 1
2 Toothed lock washer 1
3 Toothed lock washer retainer 1
4 5th pinion gear 1
5 Toothed spacer 1
6 Toothed washer 2
7 Circlip 2
8 3rd pinion gear 1
9 4th pinion gear 1
10 Collar 1
11 Main axle/1st pinion gear 1
12 Bearing 1
13 Main axle bearing housing 1
For assembly, reverse the disassembly pro-
cedure.
13
12
11
10
9
New
New
New
New
7
8
7
6
5
4
3
2
1
6
E
M
M
M
M
To Next Page
