BALANCERS
5-108
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲

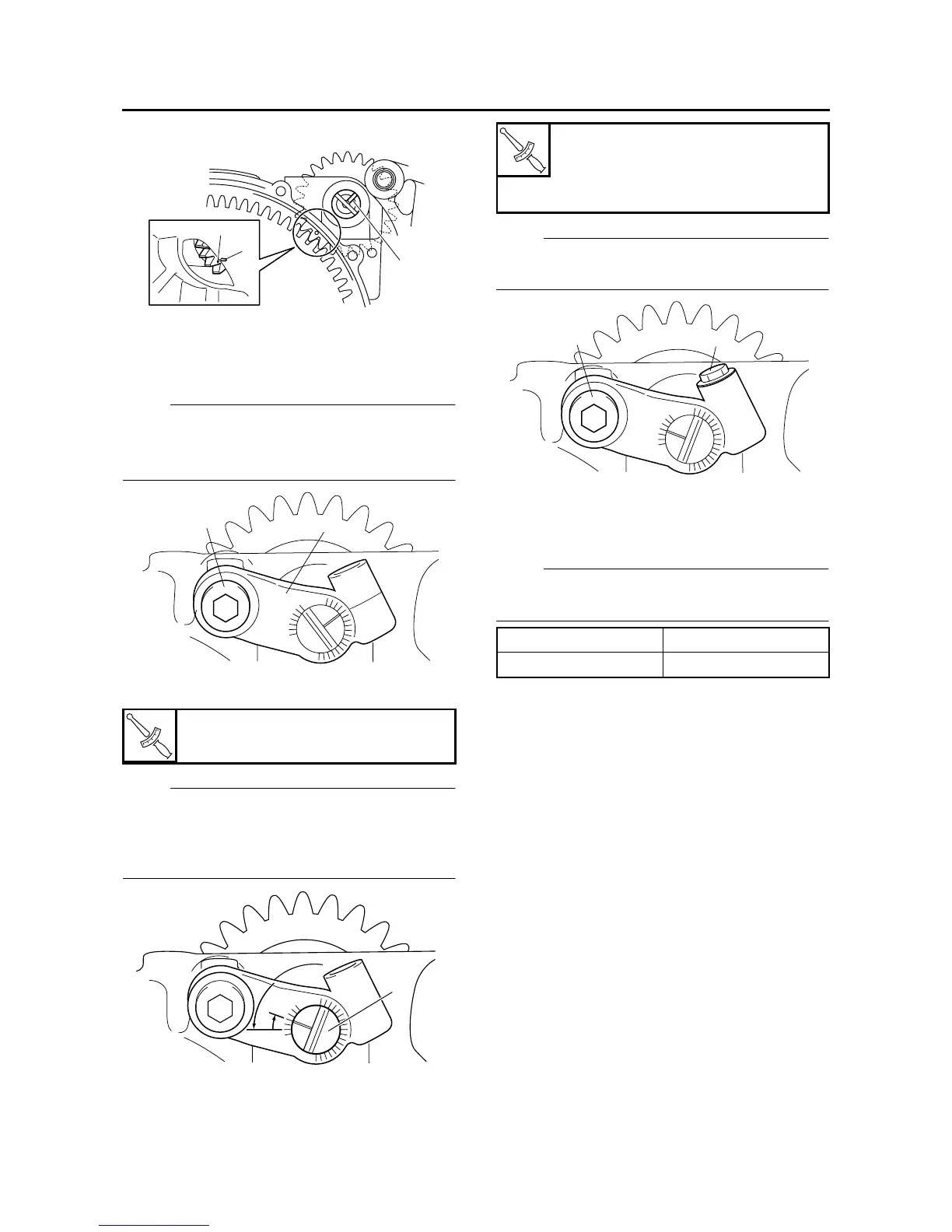

4. Install:
• Rear balancer lever “1”
• Rear balancer lever bolt “2”
NOTE:
• Apply locking agent (LOCTITE
®
) to the threads
of the balancer lever bolt.
• Temporarily tighten the balancer lever bolt.
5. Tighten:
• Rear balancer shaft “1”
NOTE:
Tighten the balancer shaft to the specified
torque by turning it counterclockwise, and then
turn it two marks back on the balancer lever
scale.
6. Tighten:
• Rear balancer lever bolt “1”
• Rear balancer shaft pinch bolt “2”
NOTE:
Make sure that the balancer shaft does not ro-
tate.
7. Start the engine and check that there is no
abnormal noise coming from the balancer
gear. If noise is abnormal, adjust the gear
lash by turning the balancer shaft.
NOTE:
With each adjustment, turn the balancer shaft
one scale.
T
R
.
.
Rear balancer shaft
0.4 Nm (0.04 m·kg, 0.29 ft·lb)
f
e
c
2
1
1
T
R
.
.
Rear balancer lever bolt
14 Nm (1.4 m·kg, 10 ft·lb)
Rear balancer shaft pinch bolt
10 Nm (1.0 m·kg, 7.2 ft·lb)
Clockwise Gear lash decreased
Counterclockwise Gear lash increased
1
2
