WATER PUMP
6-11

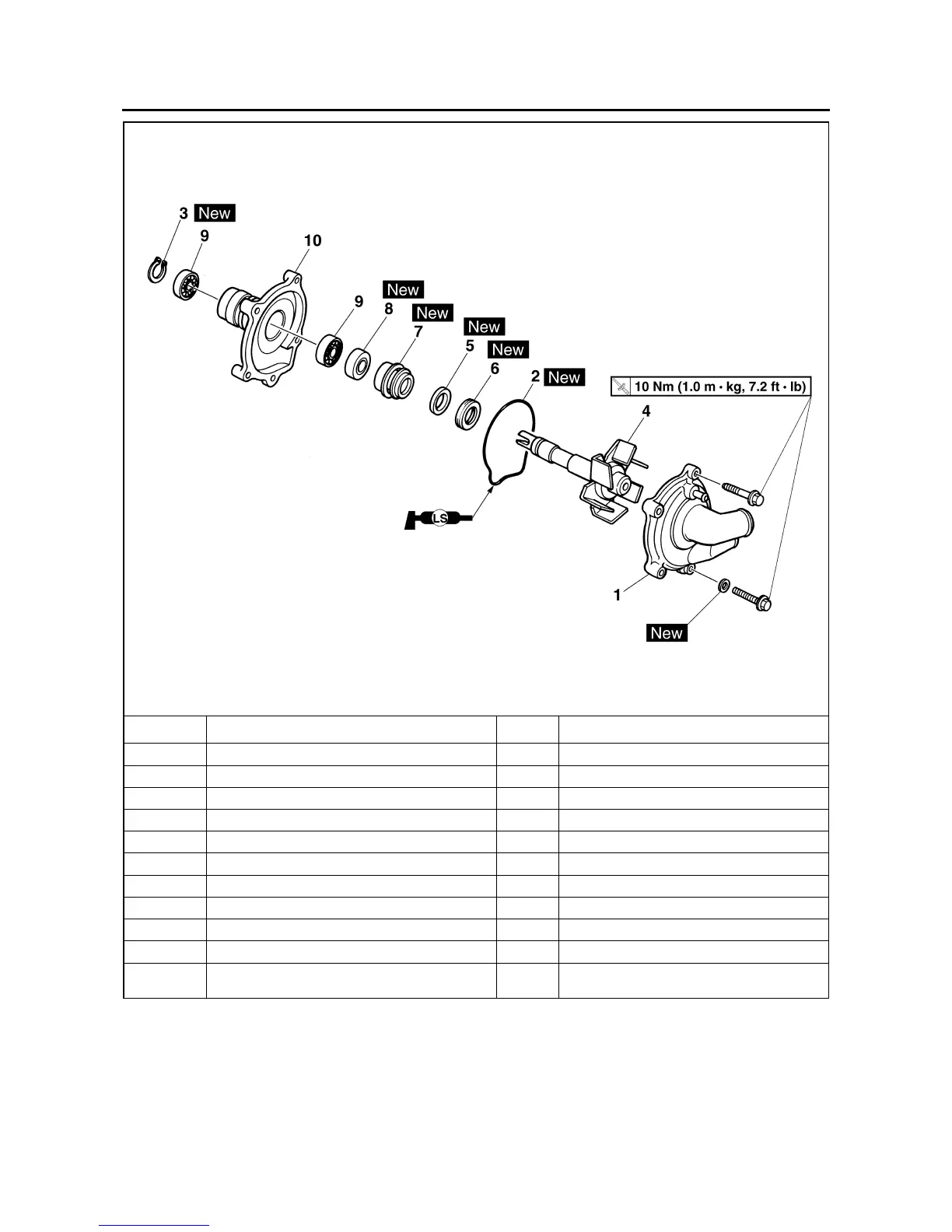

Disassembling the water pump
Order Job/Parts to remove Q’ty Remarks
1 Water pump housing cover 1
2O-ring 1
3 Circlip 1
4 Impeller shaft 1
5 Rubber damper holder 1
6 Rubber damper 1
7 Water pump seal 1
8 Oil seal 1
9 Bearing 2
10 Water pump housing 1
For assembly, reverse the disassembly pro-
cedure.
