FUEL TANK
7-1
EAS26620
FUEL TANK

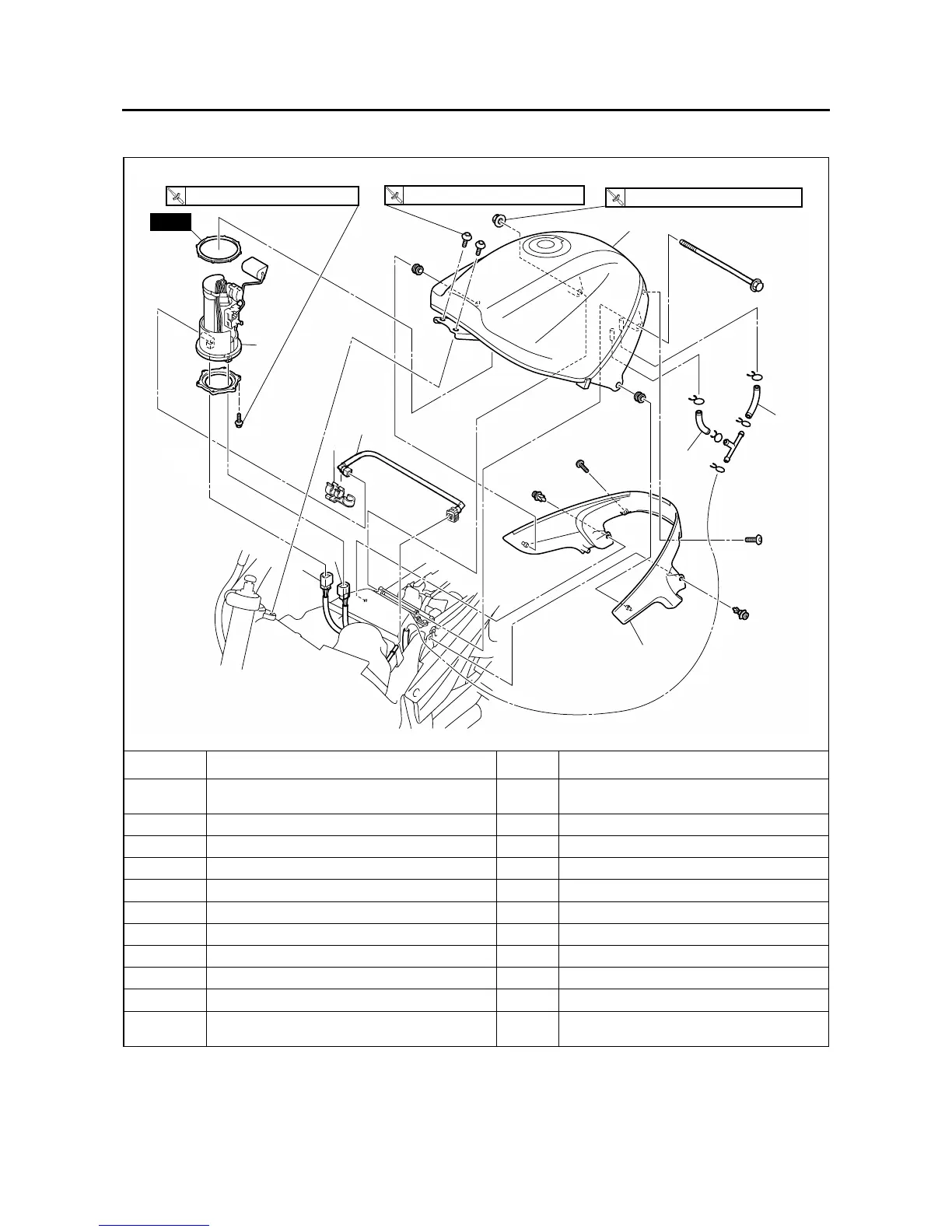

Removing the fuel tank
Order Job/Parts to remove Q’ty Remarks
Rider seat
Refer to “GENERAL CHASSIS” on page
4-1.
1 Fuel tank panel 1
2 Fuel sender coupler 1 Disconnect.
3 Fuel pump coupler 1 Disconnect.
4 Fuel tank breather hose 1
5 Fuel tank overflow hose 1
6 Fuel hose holder 1
7 Fuel hose 1
8Fuel tank 1
9 Fuel pump 1
For installation, reverse the removal proce-
dure.
T
R
.
.
16 Nm (1.6 m
•
kg, 11 ft
•
Ib)
New
T
R
.
.
4 Nm (0.4 m
•
kg, 2.9 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
1
5
4
3
7
6
8
9
2
(6)
To Next Page
