THROTTLE BODIES
7-6

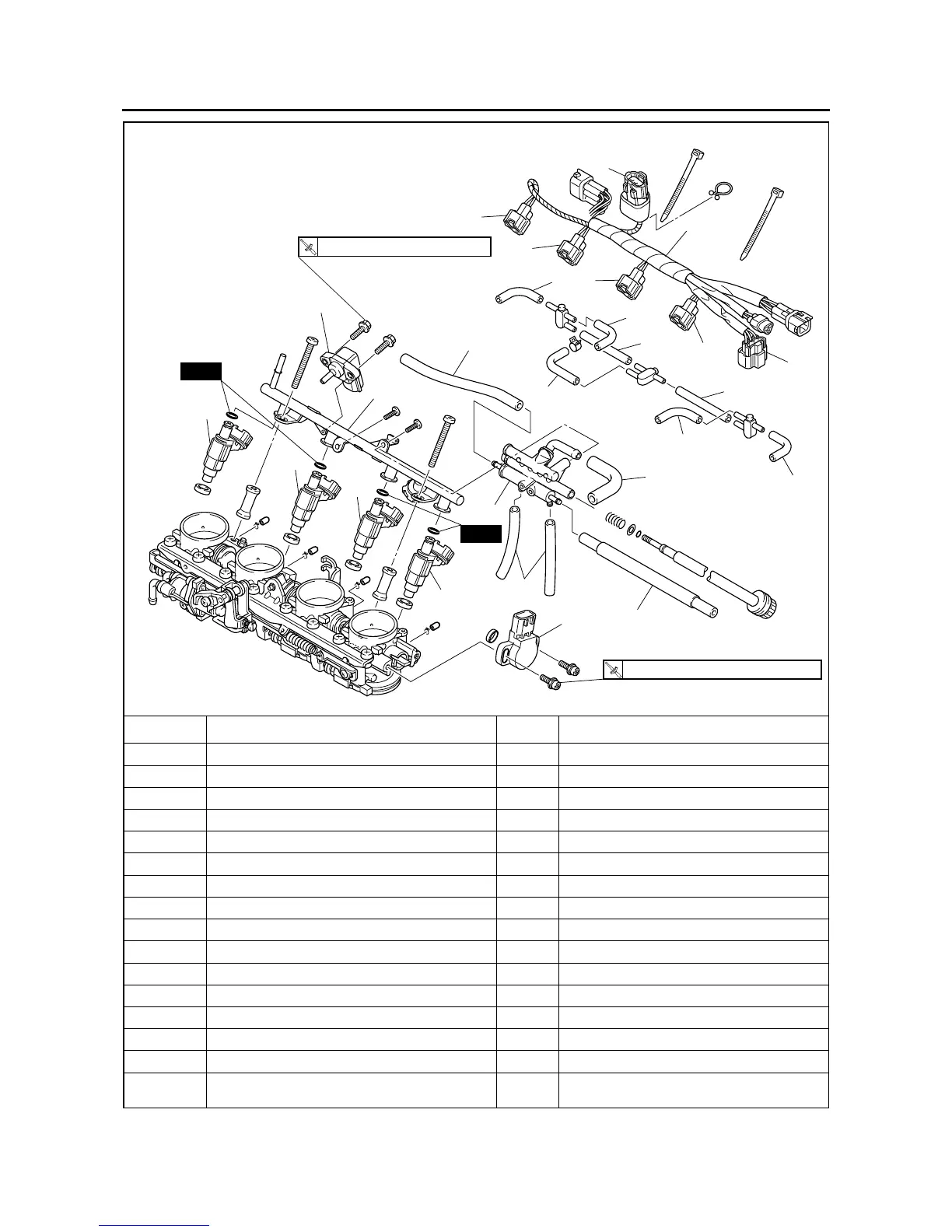

Removing the injectors
Order Job/Parts to remove Q’ty Remarks
1 Throttle position sensor coupler 1 Disconnect.
2 Intake air pressure sensor coupler 1 Disconnect.
3 Cylinder-#1 injector coupler 1 Disconnect.
4 Cylinder-#2 injector coupler 1 Disconnect.
5 Cylinder-#3 injector coupler 1 Disconnect.
6 Cylinder-#4 injector coupler 1 Disconnect.
7 Sub-wire harness 1
8 Negative pressure hose 7
9 Bypass air unit inlet hose 1
10 Bypass air unit 1
11 Bypass air unit outlet hose 4
12 Intake air pressure sensor 1
13 Fuel rail 1
14 Injector 4
15 Throttle position sensor 1
For installation, reverse the removal proce-
dure.
12
3
4
5
6
1
7
2
8
8
8
8
9
8
8
8
14
15
11
11
11
13
14
14
14
10
New
New
T
R
.
.
4 Nm (0.4 m
•
kg, 2.9 ft
•
Ib)
T
R
.
.
3.5 Nm (0.35 m
•
kg, 2.53 ft
•
lb)
To Next Page
