THROTTLE BODIES
7-8
c. Turn the main switch to “ON”.
d. Measure the throttle position sensor voltage.

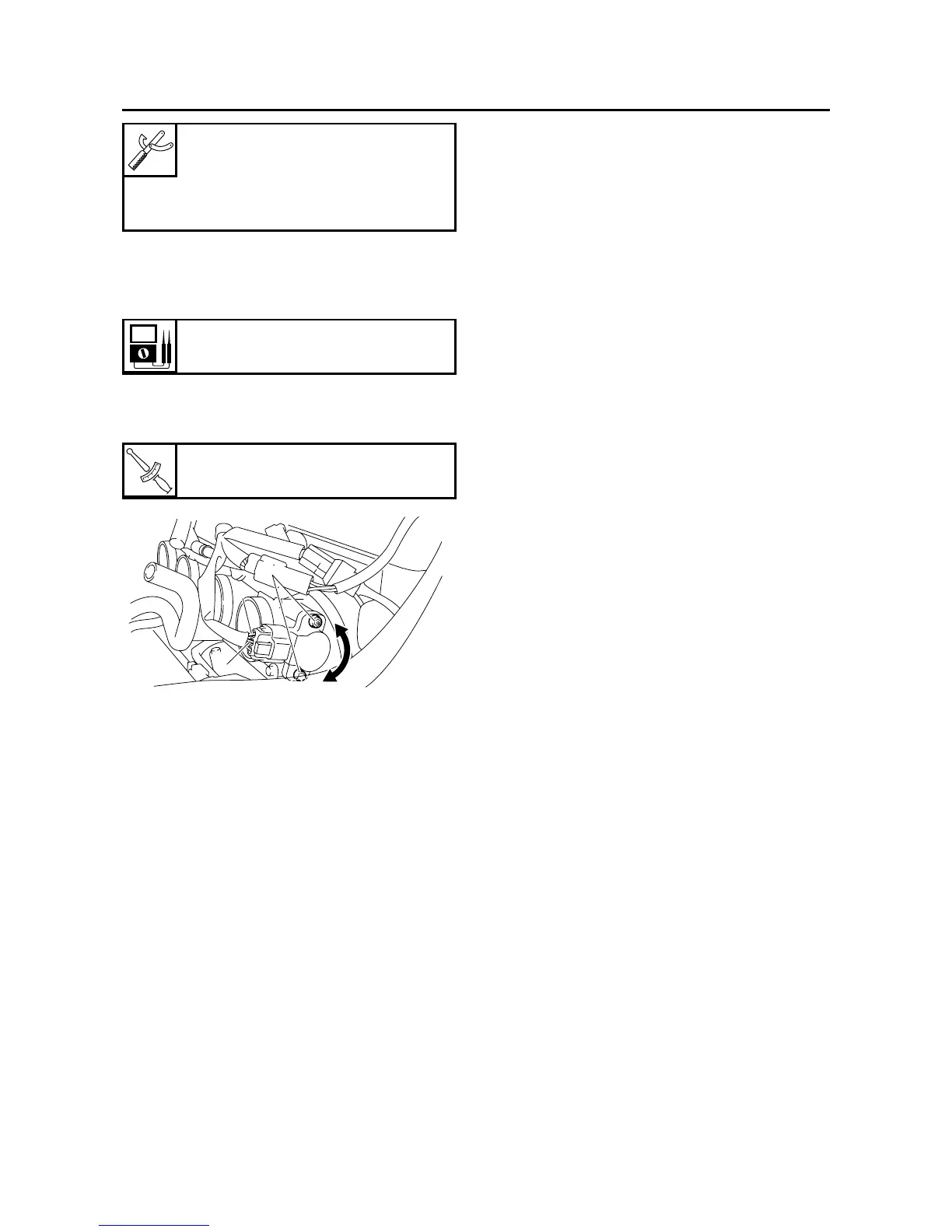

e. Adjust the throttle position sensor angle so
that the voltage is within the specified range.
f. After adjusting the throttle position sensor an-
gle, tighten the throttle position sensor
screws “3” to specification.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
Digital circuit tester
90890-03174
Model 88 Multimeter with ta-
chometer
YU-A1927
Output voltage (at idle)
0.63–0.73 V
T
R
.
.
Throttle position sensor screw
3.5 Nm (0.35 m·kg, 2.53 ft·lb)
3
2
1
