AIR INDUCTION SYSTEM
7-12

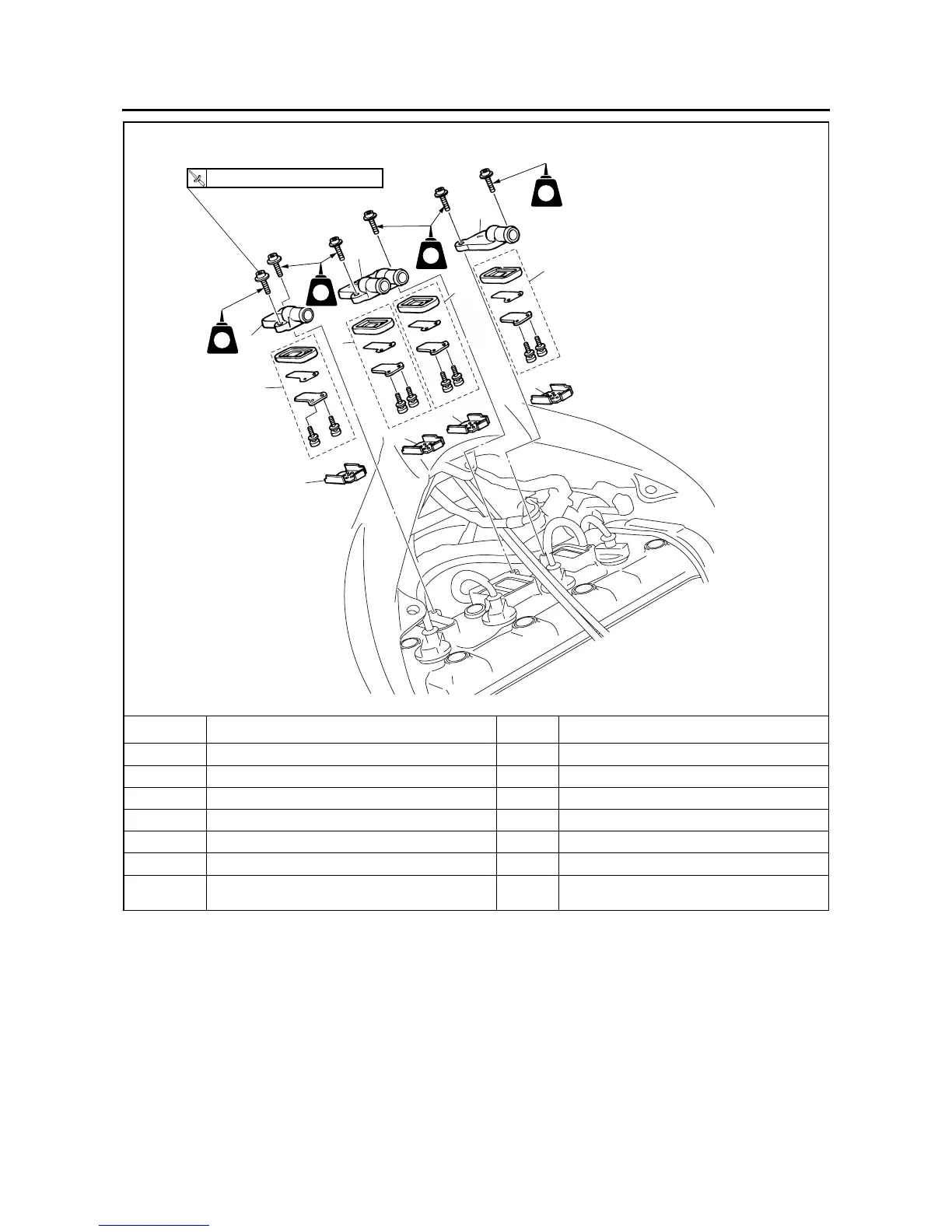

Removing the reed valves
Order Job/Parts to remove Q’ty Remarks
Thermostat inlet pipe 1 Refer to “THERMOSTAT” on page 6-6.
1 Reed valve cover (cylinder-#1) 1
2 Reed valve cover (cylinders-#2/#3) 1
3 Reed valve cover (cylinder-#4) 1
4 Reed valve assembly 4
5 Reed valve plate 4
For installation, reverse the removal proce-
dure.
LT
LT
LT
LT
1
4
5
2
3
4
4
4
5
5
5
T
R
.
.
14 Nm (1.4 m
•
kg, 10 ft
•
Ib)
