ABS (ANTI-LOCK BRAKE SYSTEM)
8-115
EAS27740

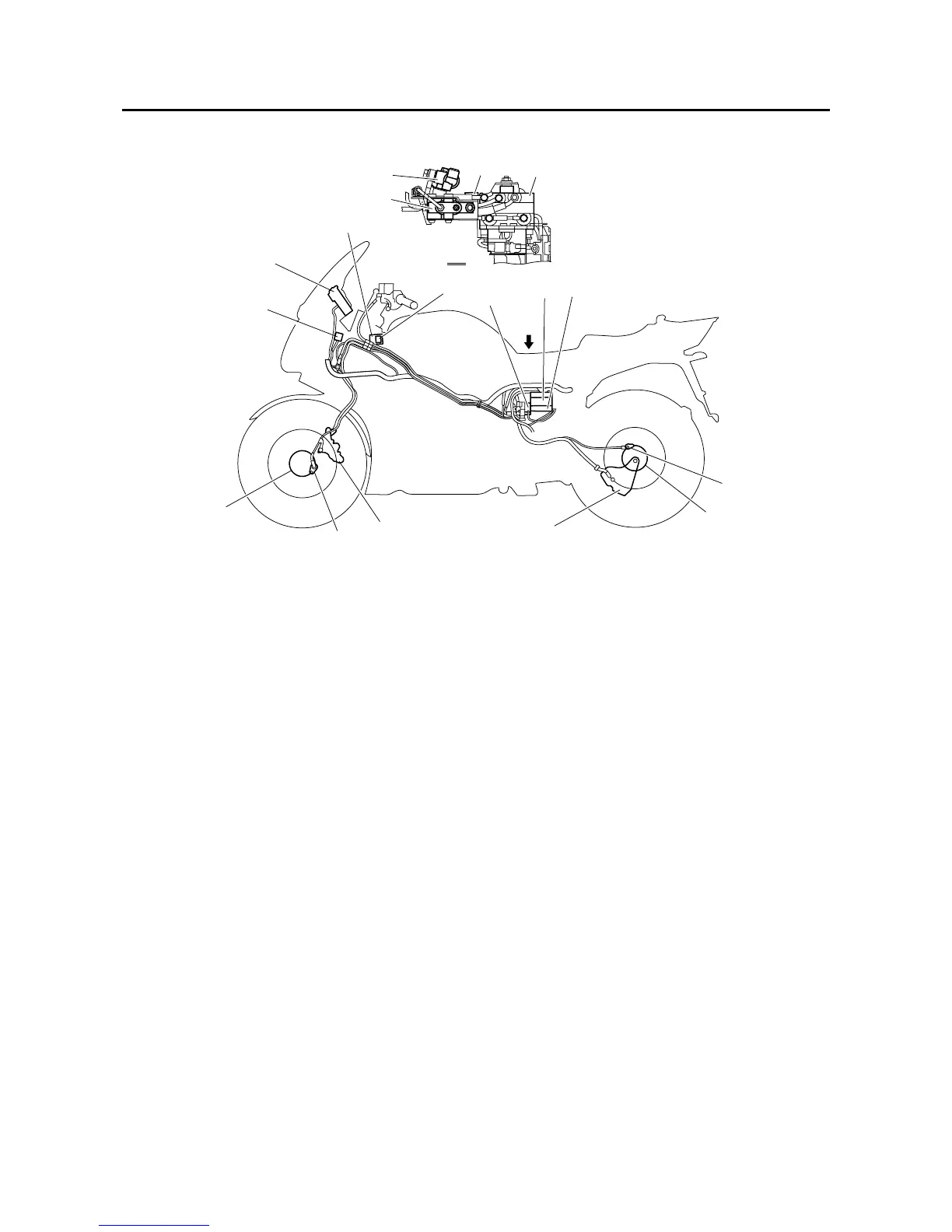

ABS COMPONENTS CHART
4
5
6
7
8
9
10
11,12
13
14
1
2
3
A
A
15
16
5
7
1. ABS test coupler
2.
ABS warning light
3. ABS ECU fuse
4. ABS motor fuse
5. ABS motor relay
6. ABS ECU (electronic control unit)
7. Hydraulic unit (HU)
8. Rear wheel sensor
9. Rear wheel sensor rotor
10.Rear brake caliper
11.Left front brake caliper
12.Right front brake caliper (partially operated
together with the rear brake)
13.Front wheel sensor
14.Front wheel sensor rotor
15.Proportioning valve
16.Metering valve
