ABS (ANTI-LOCK BRAKE SYSTEM)
8-119
EAS27760

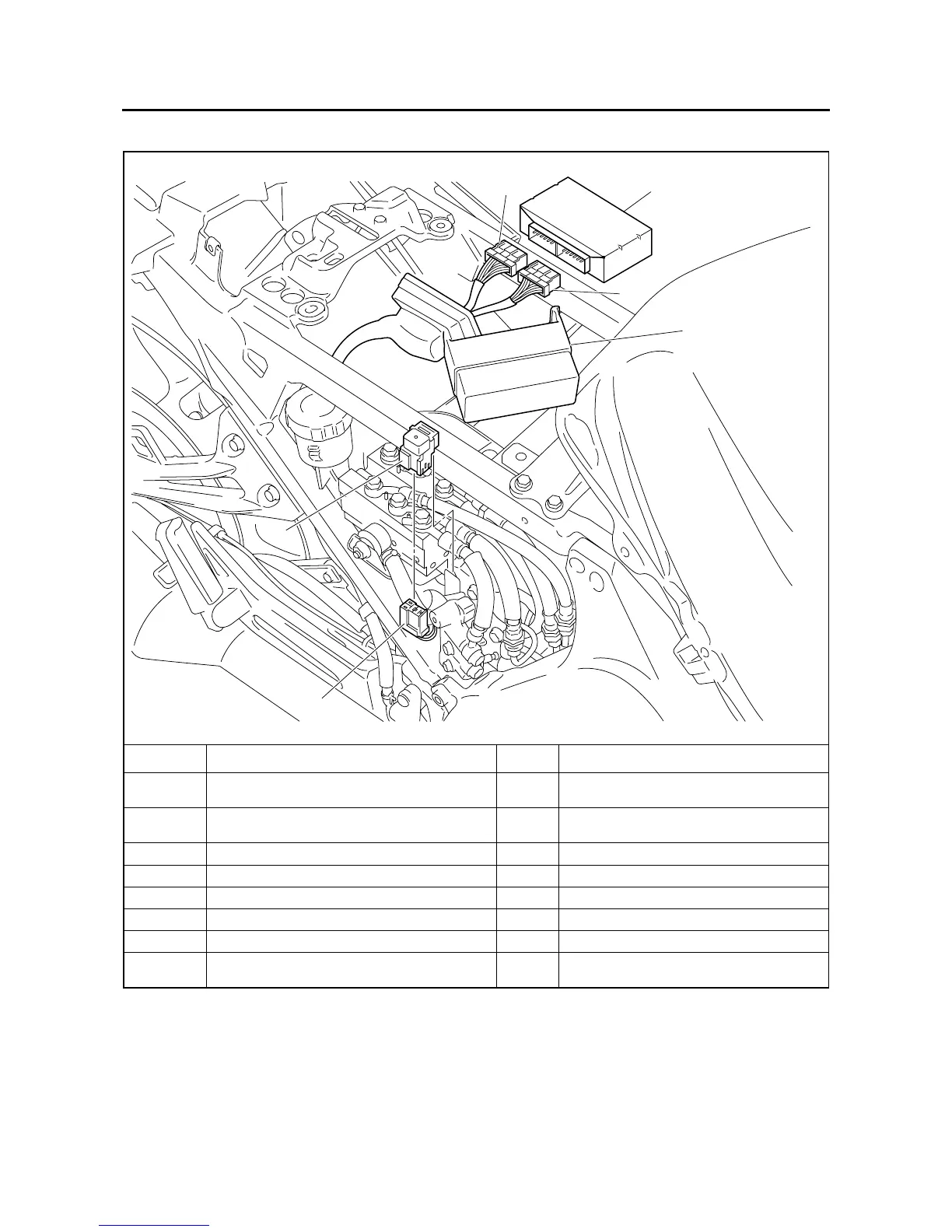

ABS ECU AND ABS MOTOR RELAY
Removing the ABS ECU and ABS motor relay
Order Job/Parts to remove Qty Remarks
Rear side cover
Refer to GENERAL CHASSIS on page
4-1.
Storage compartment
Refer to GENERAL CHASSIS on page
4-1.
1 ABS ECU cover 1
2 ABS ECU coupler 2 Disconnect.
3 ABS ECU 1
4 ABS motor relay coupler 1 Disconnect.
5 ABS motor relay 1
For installation, reverse the removal proce-
dure.
