ABS (ANTI-LOCK BRAKE SYSTEM)
8-126

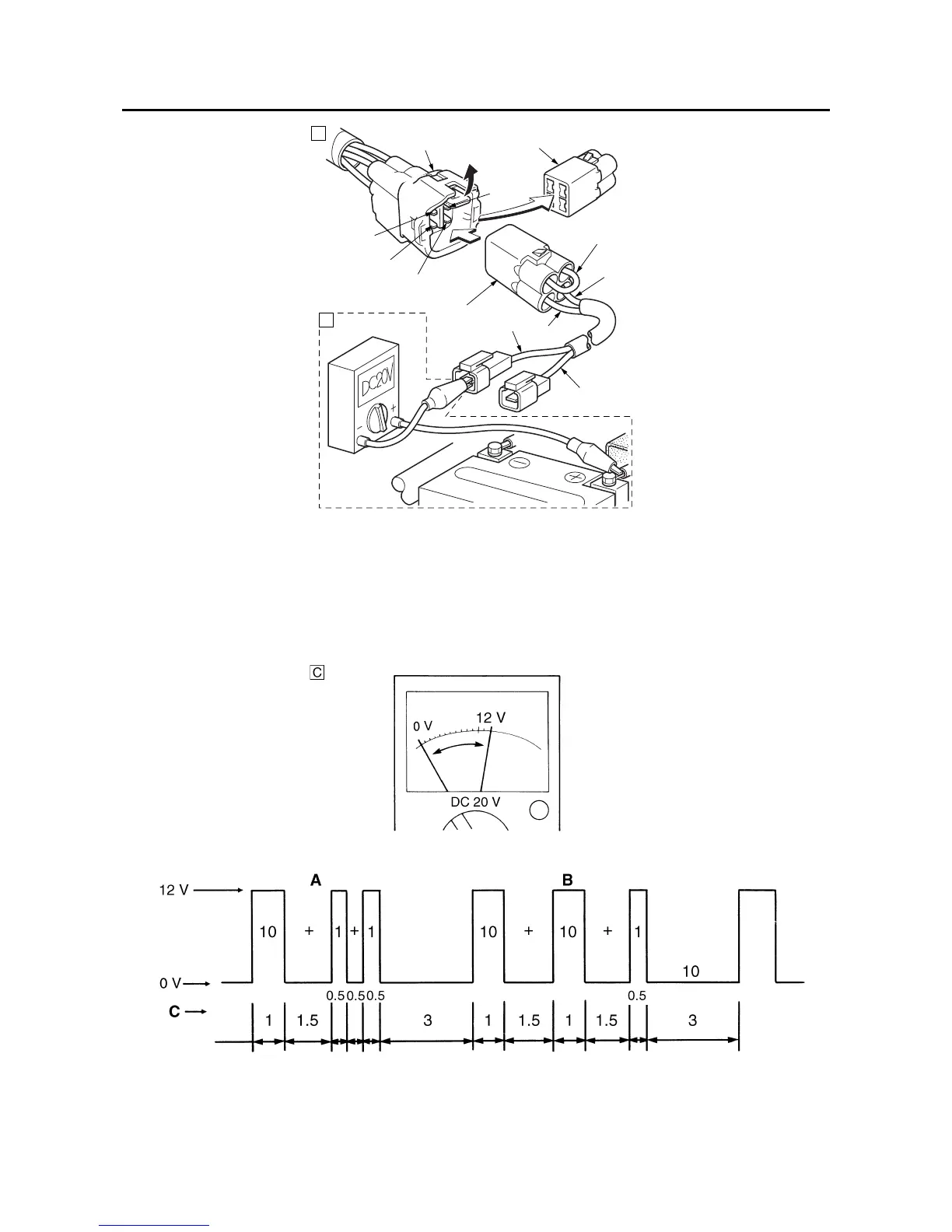

As an example, a “10 digits/1 digit pattern” of the tester reading is shown below.
A
B
5
6
7
8
9
9
3
2
4
1
10
11
11
1. ABS test coupler
2. Lock plate
3. Protective cap
4. Ground terminal (black)
5. T/C terminal (sky blue)
6. T/F terminal (light green)
7. ABS warning light terminal (green/red)
8. Test coupler adapter
9. Light green lead
10.Black lead
11.White/red lead
A. This example is the pattern for malfunction
code 12.
B. This example is the pattern for malfunction
code 21.
C. Time (seconds)
