ABS (ANTI-LOCK BRAKE SYSTEM)
8-144
b. Check for continuity between the ABS ECU
and the start switch lead.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
7. Check:
• ABS ECU voltage
Out of specification → Replace the right han-
dlebar switch.
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Connect the pocket tester (DC 12 V) to the
ABS ECU couplers.
b. Push the start switch.
c. Measure the ABS ECU voltage.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
8. If the above-mentioned checks are within
specification, replace the ABS ECU.
ET3P61022
[D-3] FINAL CHECK
Checking procedures
1. Check the brake fluid level in the brake master cylinder reservoir and brake fluid reservoir.
Refer to “CHECKING THE BRAKE FLUID LEVEL” on page 3-22.
2. Check the wheel sensor housings and wheel sensors for proper installation.
Refer to “INSTALLING THE FRONT WHEEL (FRONT BRAKE DISCS)” on page 4-18 and “IN-
STALLING THE REAR WHEEL (REAR BRAKE DISC)” on page 4-23.
3. Perform hydraulic unit operation test 1 or 2.
Refer to “HYDRAULIC UNIT OPERATION TESTS” on page 4-56.
4. Delete the malfunction codes.
Refer to “[D-1] DELETING THE MALFUNCTION CODES” on page 8-142.
5. Perform a trial run.
Refer to “TRIAL RUN” on page 4-59.

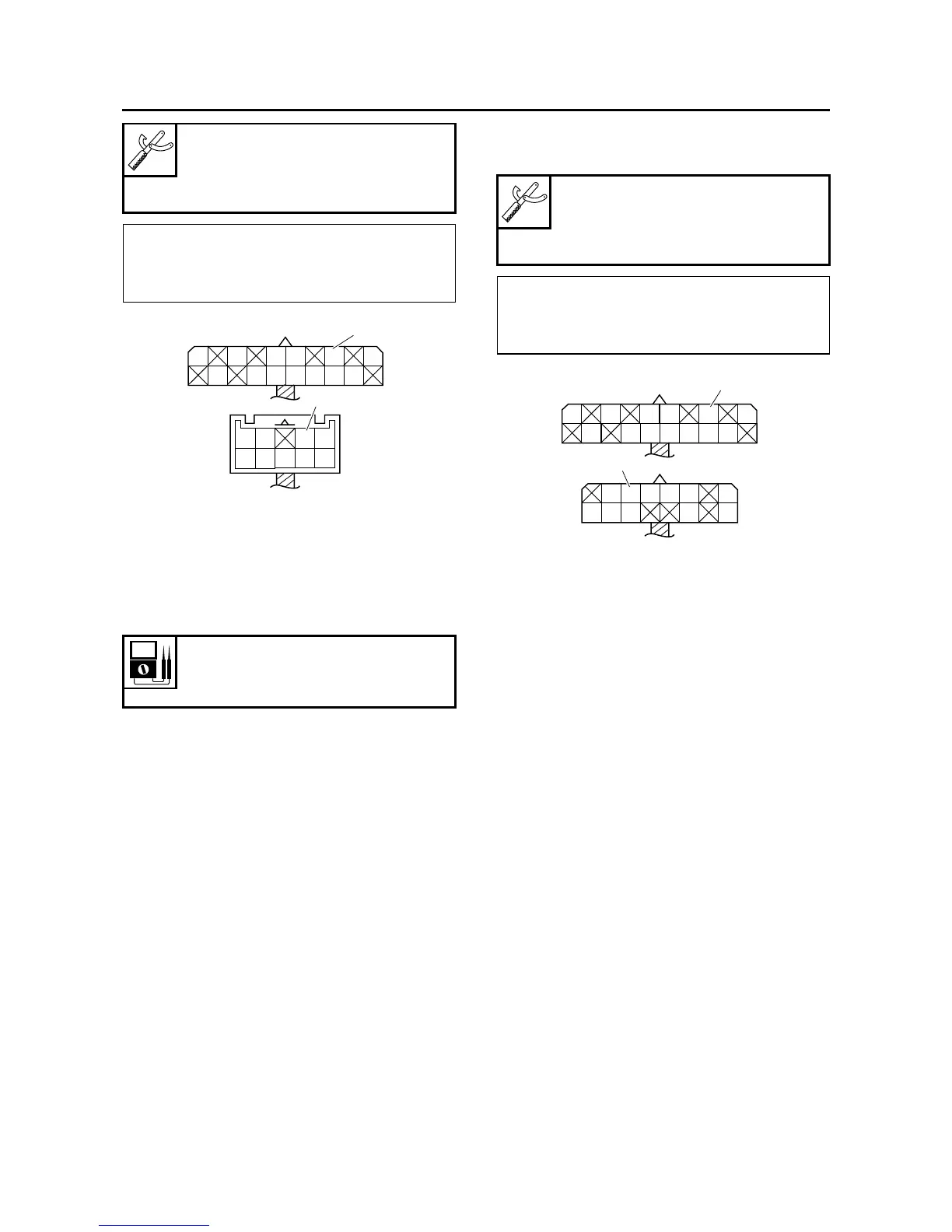

Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
• Positive tester probe →
white/blue “1” (ABS ECU)
• Negative tester probe →
white/blue “2” (right handlebar switch)
Start switch “ON”: less than 1 V
Start switch “OFF”: more than 12
V
