9
25 Nm (2.5 m . kg, 18.1 ft . Ib)
10
Nm (1.0 m . kg, 7.2 ft ·Ib)

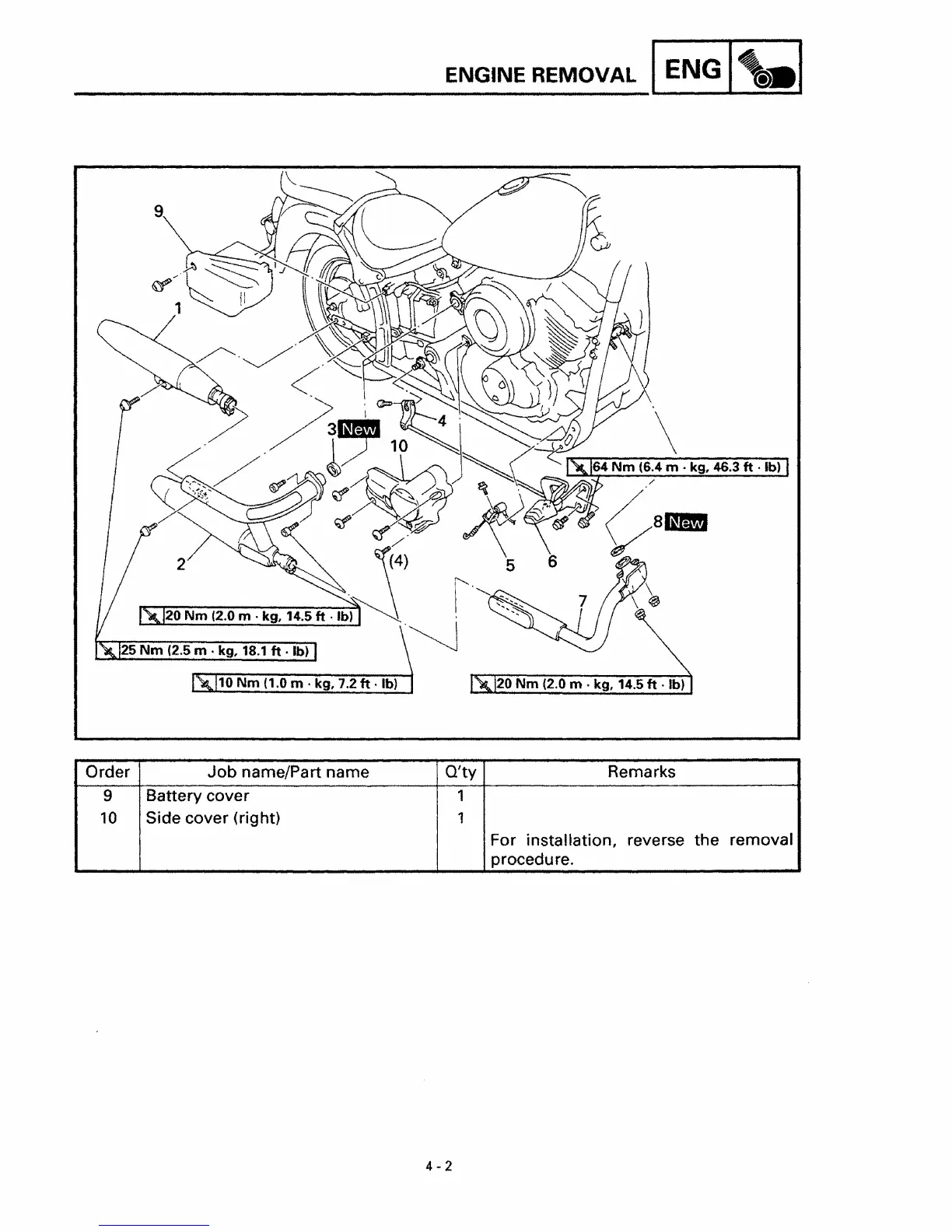

ENGINE REMOVAL ENG
\
20 Nm (2.0 m . kg, 14.5 ft . Ib)
Order Job name/Part name
Q'ty Remarks
9
Battery cover 1
10
Side cover (right)
1
For installation, reverse the removal
procedure.
4-2
