Yamaha XVS650 - Carburetor

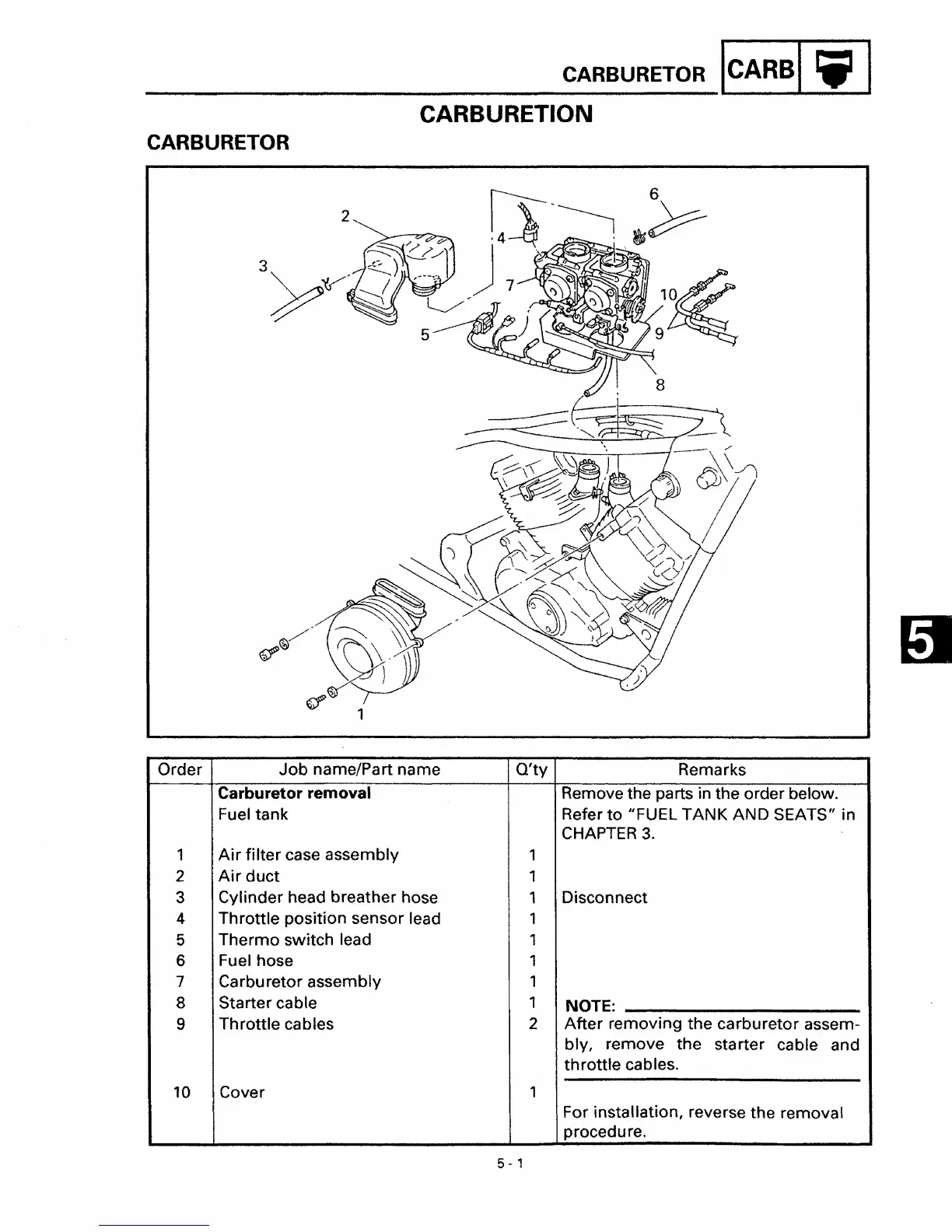

CARBURETOR
CARBURETOR ICARBI i11
CARBURETION
Order Job name/Part name
Q'ty
Remarks
Carburetor removal
Remove the parts in the order below.
Fuel tank
Refer
to "FUEL TANK AND SEATS" in
CHAPTER 3.
1
Air filter case assembly
1
2 Air duct
1
3
Cylinder head breather hose
1
Disconnect
4 Throttle position sensor lead
1
5
Thermo switch lead 1
6
Fuel hose
1
7 Carburetor assembly 1
8
Starter cable
1
NOTE:
9
Throttle cables
2 After removing the carburetor assem-
bly,
remove
the starter cable and
throttle cables.
10 Cover
1
For installation, reverse the removal
procedure.
5 1
